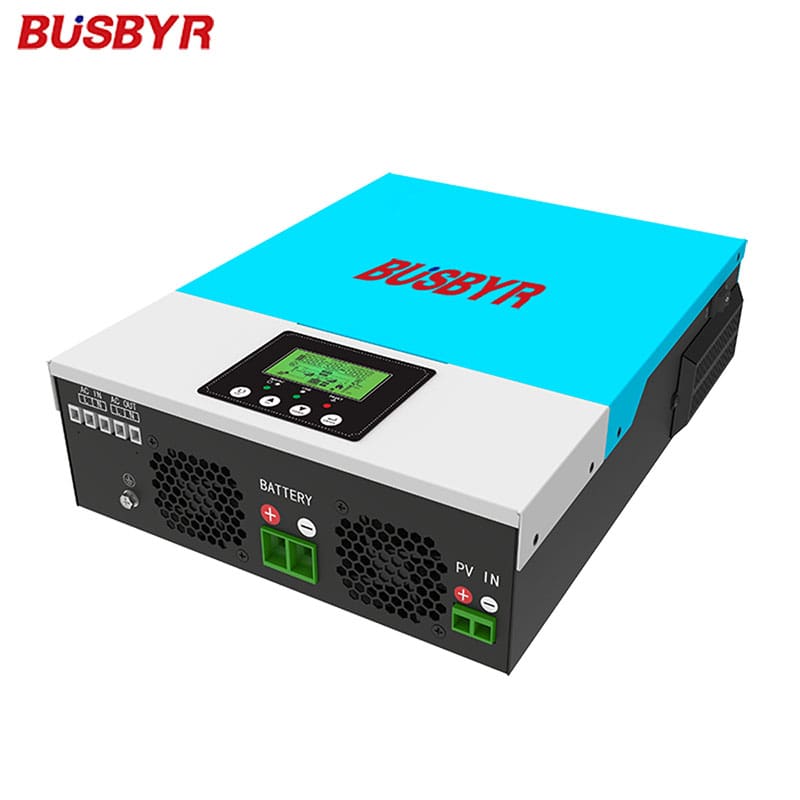

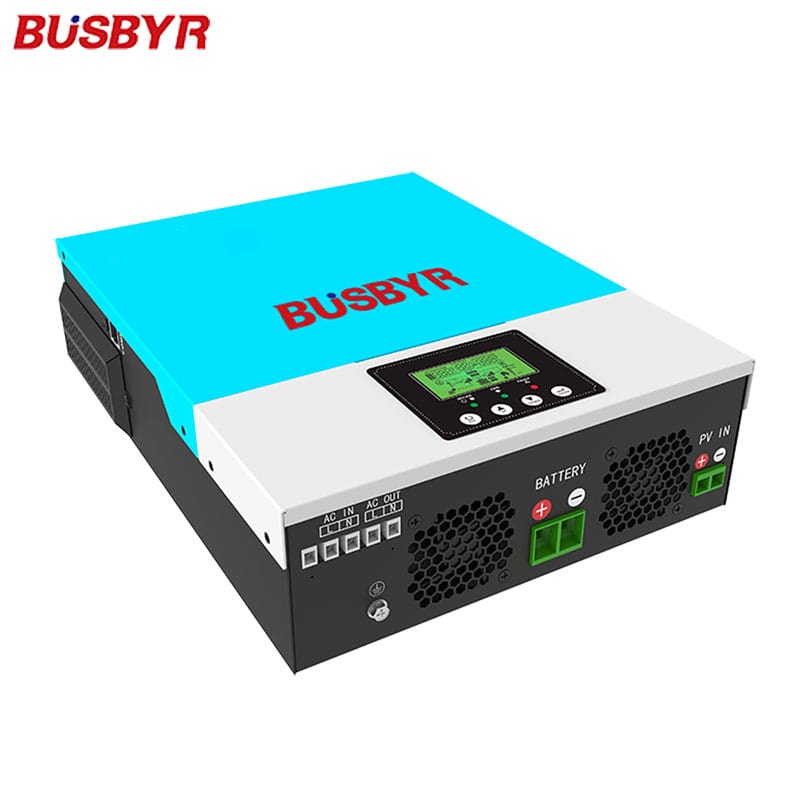

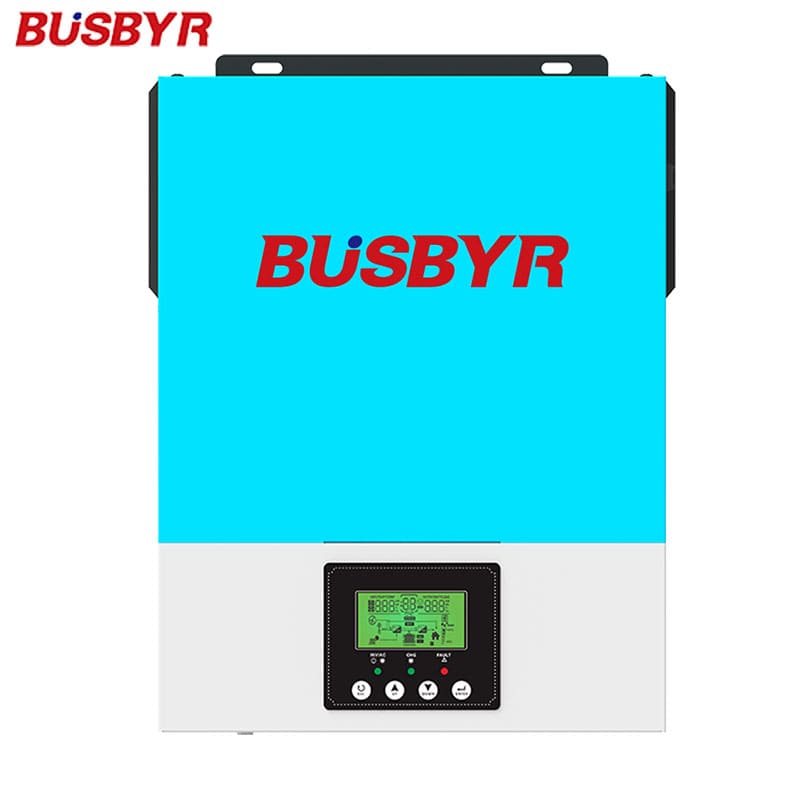

3KW residential solar inverter
BS1 Series (1.5/2/3/5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for App
●Built-in 80A MPPT solar charger
●With wide PV input range: 90~450VDC
●Built-in anti-dusk kit for harsh environments
●Smart battery charging design to optimize battery life
●Compatible with lithium batteries
●The solar energy is provided directly to the load at first
Description
The 3KW household inverter has various protection functions such as input reverse connection protection, input undervoltage protection, input overvoltage protection, output overvoltage protection, output overload protection, output short circuit protection, and overheating protection. This 3000w off-grid inverter is versatile in home, and supports WIFI&GPRS control.
Specification
Model | BS1-Blue-1500-12 | BS1-Blue-2000-12 | BS1-Blue-2400-24 | BS1-Blue-3200-24 | |
RATED POWER | 1500VA/1500W | 2000VA/1600W | 2400VA/2400W | 3200VA/3000W | |
AC Input | |||||
Voltage | 230VAC | ||||
Selectable Voltage Range | 170~280VAC(For Personal Computers) | ||||
90~280VAC(For Home Appliances) | |||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | ||||
AC OUTPUT | |||||
AC Voltage Regulation | 230VAC±5% | ||||
Surge Power | 3000VA | 4000VA | 4800VA | 6400VA | |
Efficiency(Peak)PV to INV | 98% | ||||
Efficiency(Peak)Battery to INV | 94% | ||||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | ||||
BATTERY&AC CHARGER | |||||
Battery Voltage | 12VDC | 24VDC | |||
Floating Charge Voltage | 13.5VDC | 27VDC | |||
Overcharge Protection | 16VDC | 33VDC | |||
Maximum AC Charge Current | 60A | ||||
SOLAR CHARGER | |||||
Maximum PV Array Power | 2000W | 3000W | |||
MPPT Range Operating Voltage | 90-430VDC | ||||
Maximum PV Array Open Circuit Voltage | 450VDC | ||||
Maximum Charging Current | 80A | ||||
PHYSICAL | |||||
Dimension,D*W*H(mm) | 350*259*90 | ||||
Cartoon Dimension,D X W XH(mm) | 423*348*172 | ||||
Net Weight(kgs) | 4.6 | 4.8 | |||
Gross Weight(kgs) | 5.6 | 5.8 | |||
Communication interface | RS232/GPRS/WIFI | ||||
OPERATING ENVIRONMENT | |||||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | ||||
Operating Temperature | -10~50℃ | ||||
