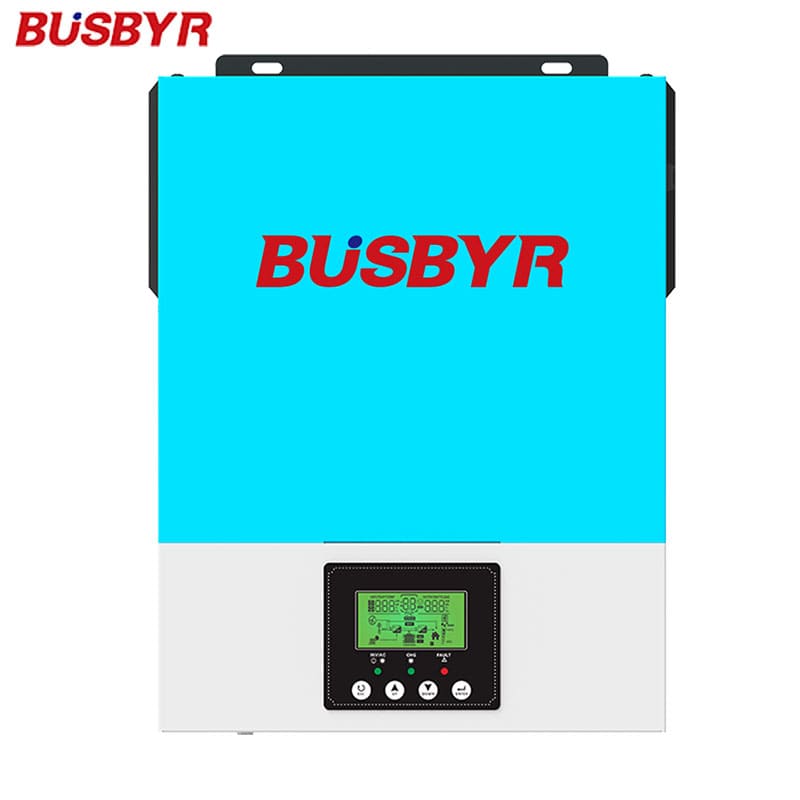

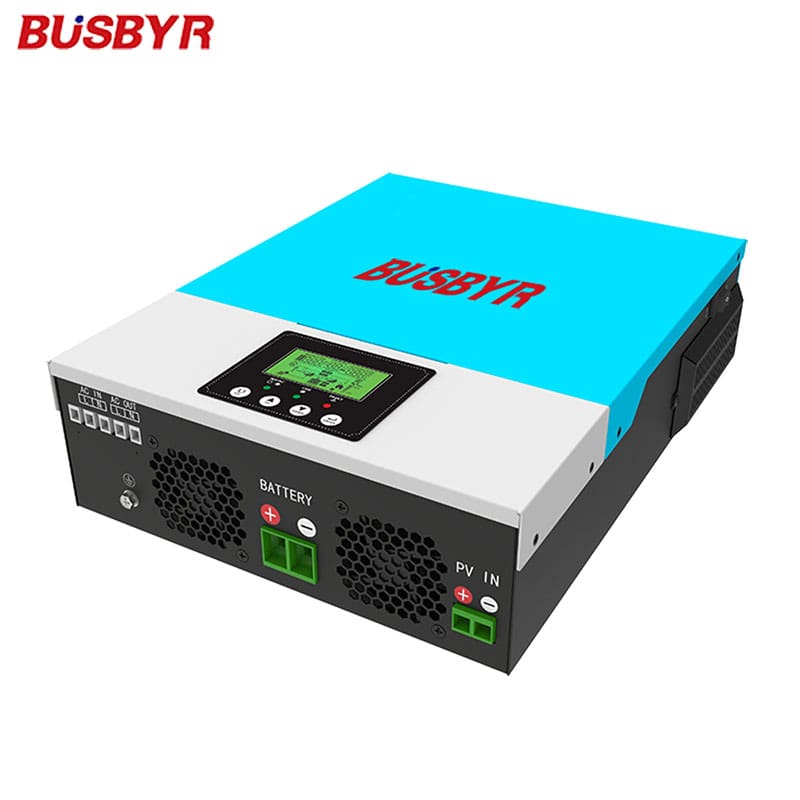

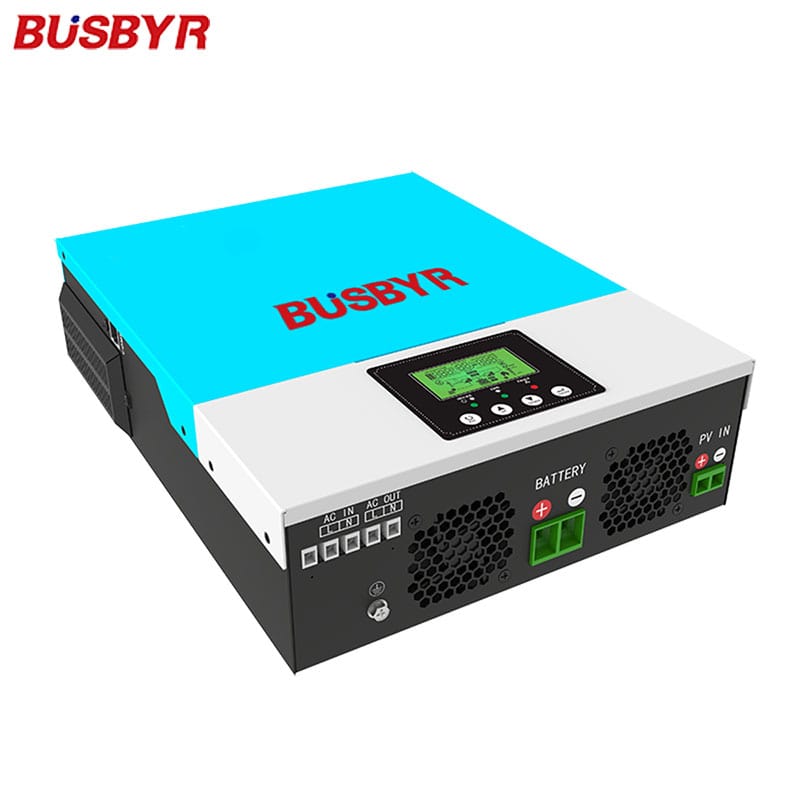

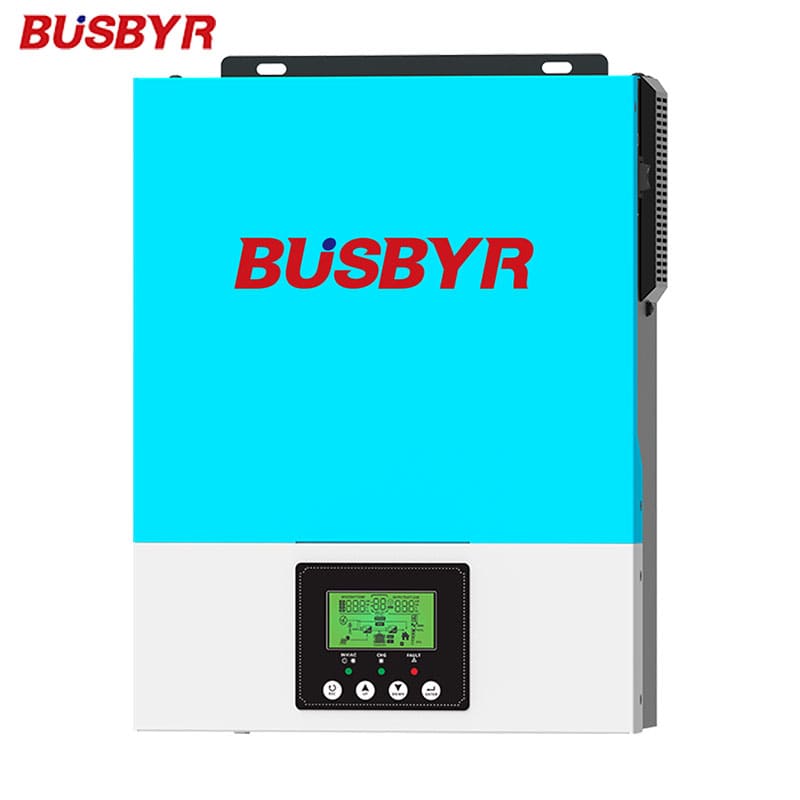

2.4KW off grid solar panel inverter
BS1 Series (1.5/2/3/5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for App
●Built-in 80A MPPT solar charger
●With wide PV input range: 90~450VDC
●Built-in anti-dusk kit for harsh environments
●Smart battery charging design to optimize battery life
●Meet the rich customization needs of customers
●Compatible with lithium batteries
●The solar energy is provided directly to the load at first
Description
2.4KW off grid solar panel inverter as a power conversion device, the input DC power is pushed-pull and boosted, and then converted into 220V AC power through the inverter bridge SPWM sinusoidal pulse width modulation technology. This 2400w off grid solar inverter built-in 80A MPPT solar charger, has high efficiency reaching 98%.
Specification
Model | BS1-Blue-1500-12 | BS1-Blue-2000-12 | BS1-Blue-2400-24 | BS1-Blue-3200-24 | |
RATED POWER | 1500VA/1500W | 2000VA/1600W | 2400VA/2400W | 3200VA/3000W | |
AC Input | |||||
Voltage | 230VAC | ||||
Selectable Voltage Range | 170~280VAC(For Personal Computers) | ||||
90~280VAC(For Home Appliances) | |||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | ||||
AC OUTPUT | |||||
AC Voltage Regulation | 230VAC±5% | ||||
Surge Power | 3000VA | 4000VA | 4800VA | 6400VA | |
Efficiency(Peak)PV to INV | 98% | ||||
Efficiency(Peak)Battery to INV | 94% | ||||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | ||||
BATTERY&AC CHARGER | |||||
Battery Voltage | 12VDC | 24VDC | |||
Floating Charge Voltage | 13.5VDC | 27VDC | |||
Overcharge Protection | 16VDC | 33VDC | |||
Maximum AC Charge Current | 60A | ||||
SOLAR CHARGER | |||||
Maximum PV Array Power | 2000W | 3000W | |||
MPPT Range Operating Voltage | 90-430VDC | ||||
Maximum PV Array Open Circuit Voltage | 450VDC | ||||
Maximum Charging Current | 80A | ||||
PHYSICAL | |||||
Dimension,D*W*H(mm) | 350*259*90 | ||||
Cartoon Dimension,D X W XH(mm) | 423*348*172 | ||||
Net Weight(kgs) | 4.6 | 4.8 | |||
Gross Weight(kgs) | 5.6 | 5.8 | |||
Communication interface | RS232/GPRS/WIFI | ||||
OPERATING ENVIRONMENT | |||||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | ||||
Operating Temperature | -10~50℃ | ||||
