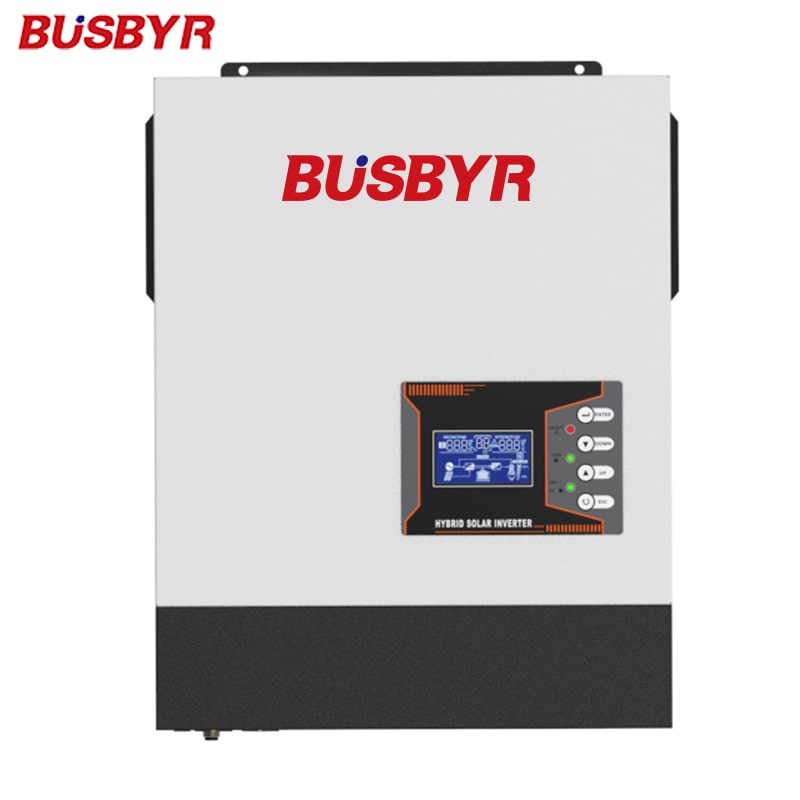

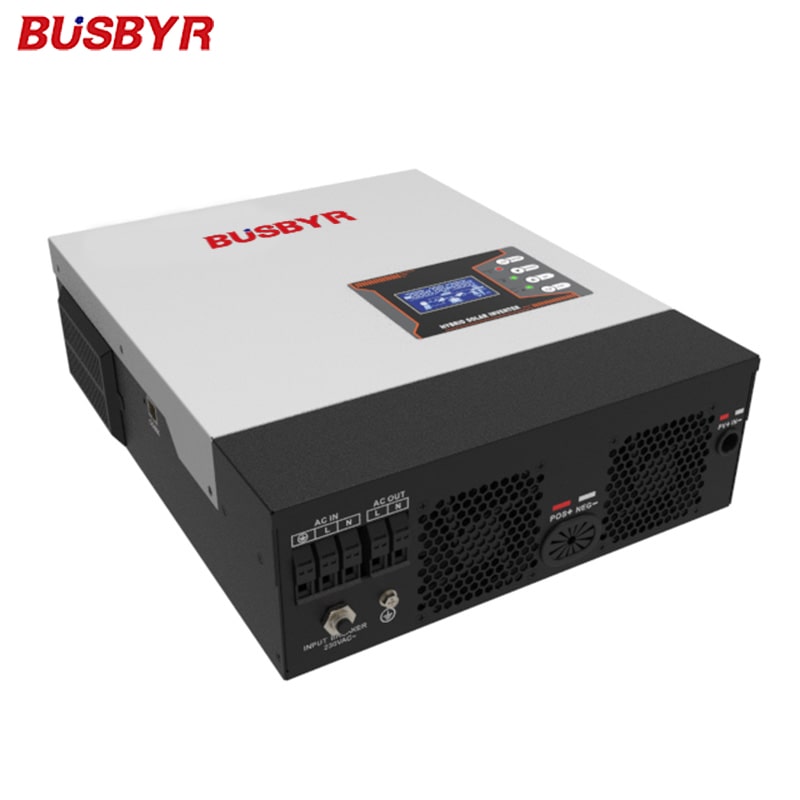

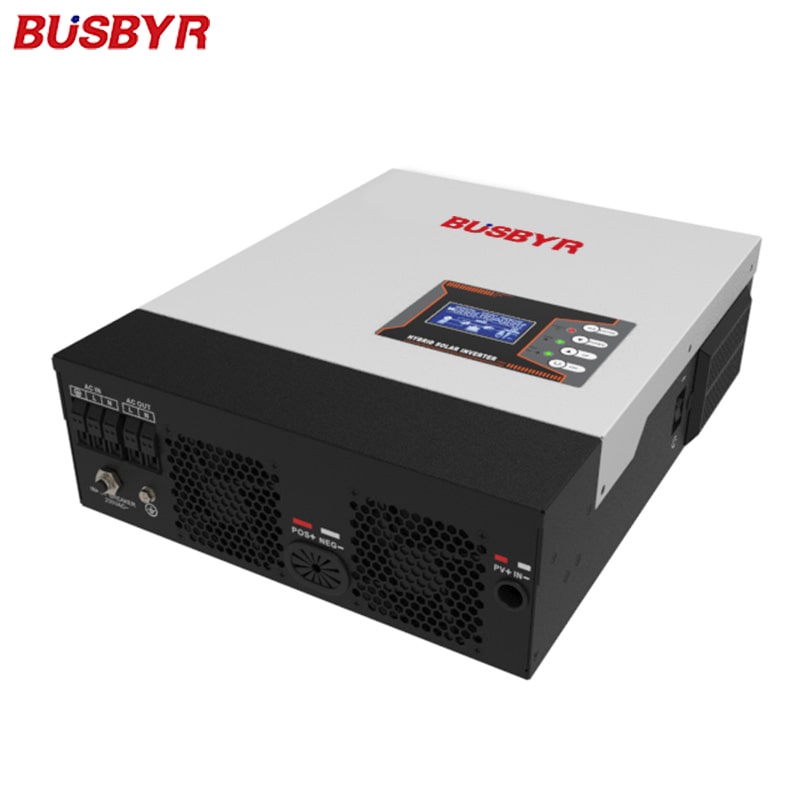

3.2KW commercial solar inverter
BS1 Series (1.5/2/3/5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for App
●Built-in 80A MPPT solar charger
●With wide PV input range: 120VDC-450VDC
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Compatible with lithium battery
●Solar energy is provided directly to the load first
Description
This 3.2KW commercial inverter does not need to solve the phase, amplitude, frequency active and reactive power and other issues. The grid-tie inverter generally adopts the current-type control method, while the off-grid inverter generally adopts the voltage-type control method. The type of BS1 off grid solar inverter first supplies directly to the load with an efficiency of up to 97%.
Specification
Model | BS1-White-3200-24 | BS1-White-3200-48 |
RATED POWER | 3200VA/3200W | 3200VA/3200W |
AC Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation | 230VAC±5% | |
Surge Power | 6400VA | 6400VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms(For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum AC Charge Current | 80A | 60A |
SOLAR CHARGER | ||
Maximum PV Array Power | 4000W | 4000W |
MPPT Range Operating Voltage | 120~450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 80A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 384*330*105 | |
Cartoon Dimension,D X W XH(mm) | 480*378*205 | |
Net Weight(kgs) | 7.95 | 7.95 |
Gross Weight(kgs) | 8.4 | 8.4 |
Communication interface | RS232/GPRS/WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5%to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10~50℃ | |
