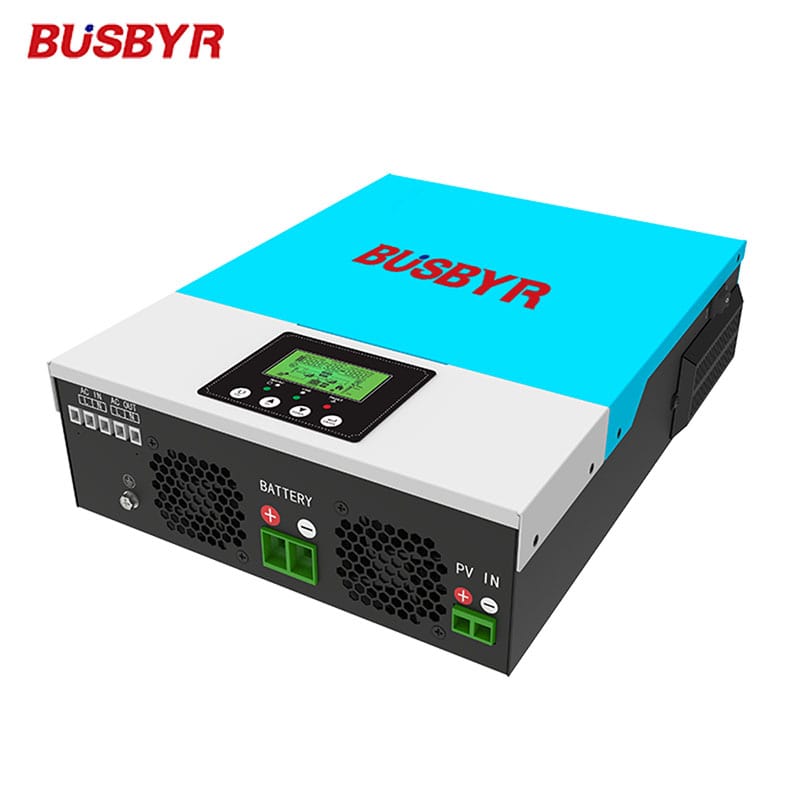

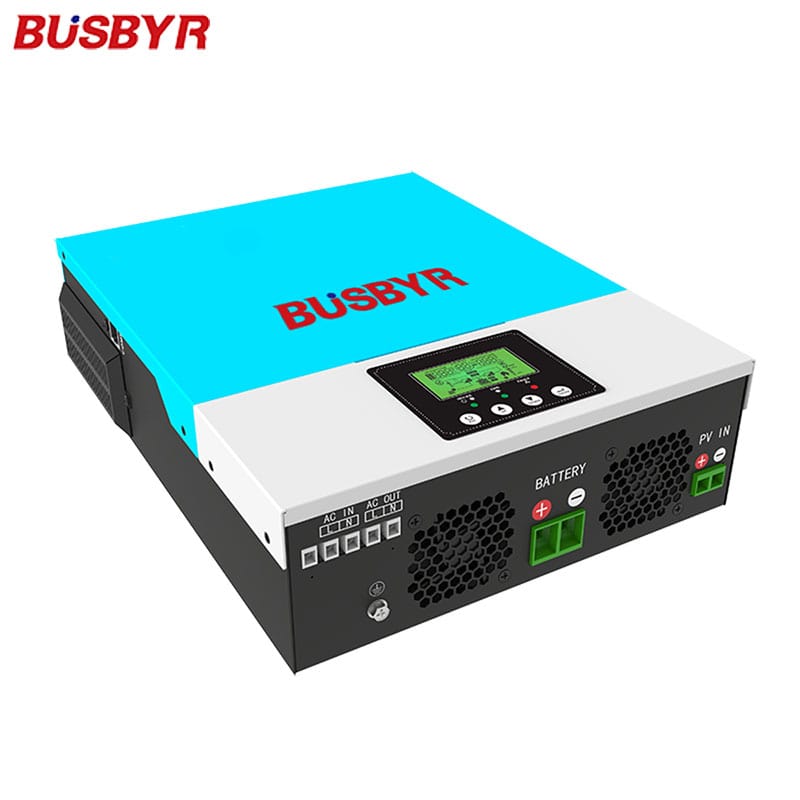

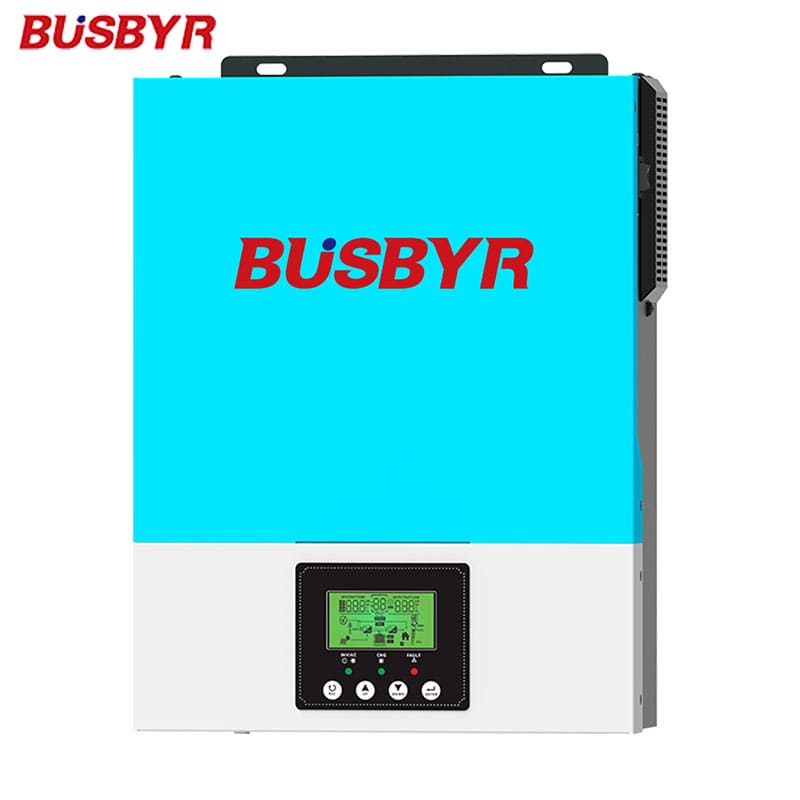

1.6KW home solar inverter
BS1 Series (1.5/2/3/5KW)Key Features
●Pure sine wave solar inverter
●Output power factor=1.0
●Support IOS and Android Wifi&GPRS
●Built-in 80A MPPT solar charger
●With wide PV input range: 90~450VDC
●Built-in anti-dusk kit for harsh environments
●Smart battery charging design to optimize battery life
●Meet the rich customization needs of customers
●Compatible with lithium batteries
●The solar energy is provided directly to the load at first
Description
1.6KW home solar inverter are generally complete system solutions in modular components, consisting of manageable building blocks: inverter, solar charge controller, automatic generator starter module, and system control board. This BS1 Series of 1600w has a Max PV input reaching 450VDC, built-in 80A MPPT solar charger.
Specification
BS1-Blue-1500-12 | BS1-Blue-2000-12 | BS1-Blue-2400-24 | BS1-Blue-3200-24 | |
RATED POWER | 1500VA/1500W | 2000VA/1600W | 2400VA/2400W | 3200VA/3000W |
AC Input | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |||
90~280VAC(For Home Appliances) | ||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |||
AC OUTPUT | ||||
AC Voltage Regulation | 230VAC±5% | |||
Surge Power | 3000VA | 4000VA | 4800VA | 6400VA |
Efficiency(Peak)PV to INV | 98% | |||
Efficiency(Peak)Battery to INV | 94% | |||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||
BATTERY&AC CHARGER | ||||
Battery Voltage | 12VDC | 24VDC | ||
Floating Charge Voltage | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Maximum AC Charge Current | 60A | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 2000W | 3000W | ||
MPPT Range Operating Voltage | 90-430VDC | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Charging Current | 80A | |||
PHYSICAL | ||||
Dimension,D*W*H(mm) | 350*259*90 | |||
Cartoon Dimension,D X W XH(mm) | 423*348*172 | |||
Net Weight(kgs) | 4.6 | 4.8 | ||
Gross Weight(kgs) | 5.6 | 5.8 | ||
Communication interface | RS232/GPRS/WIFI | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | |||
Operating Temperature | -10~50℃ | |||
