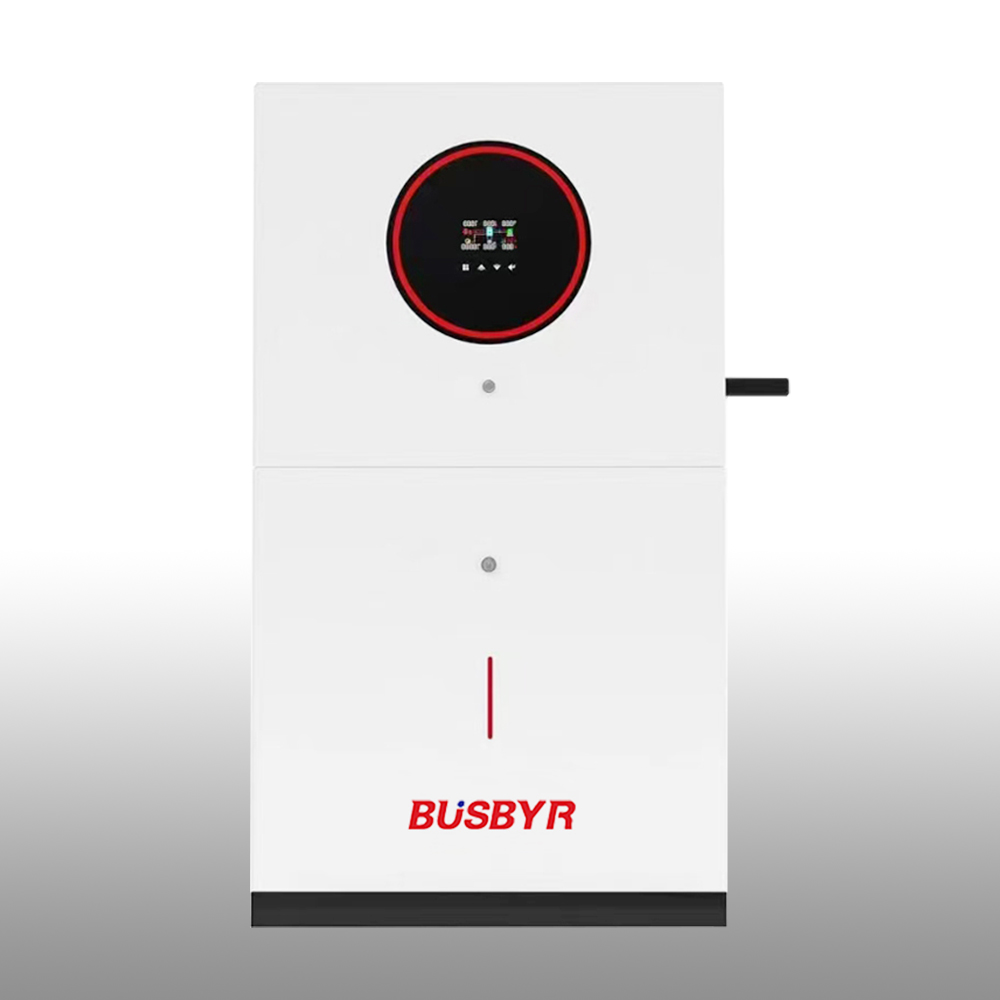

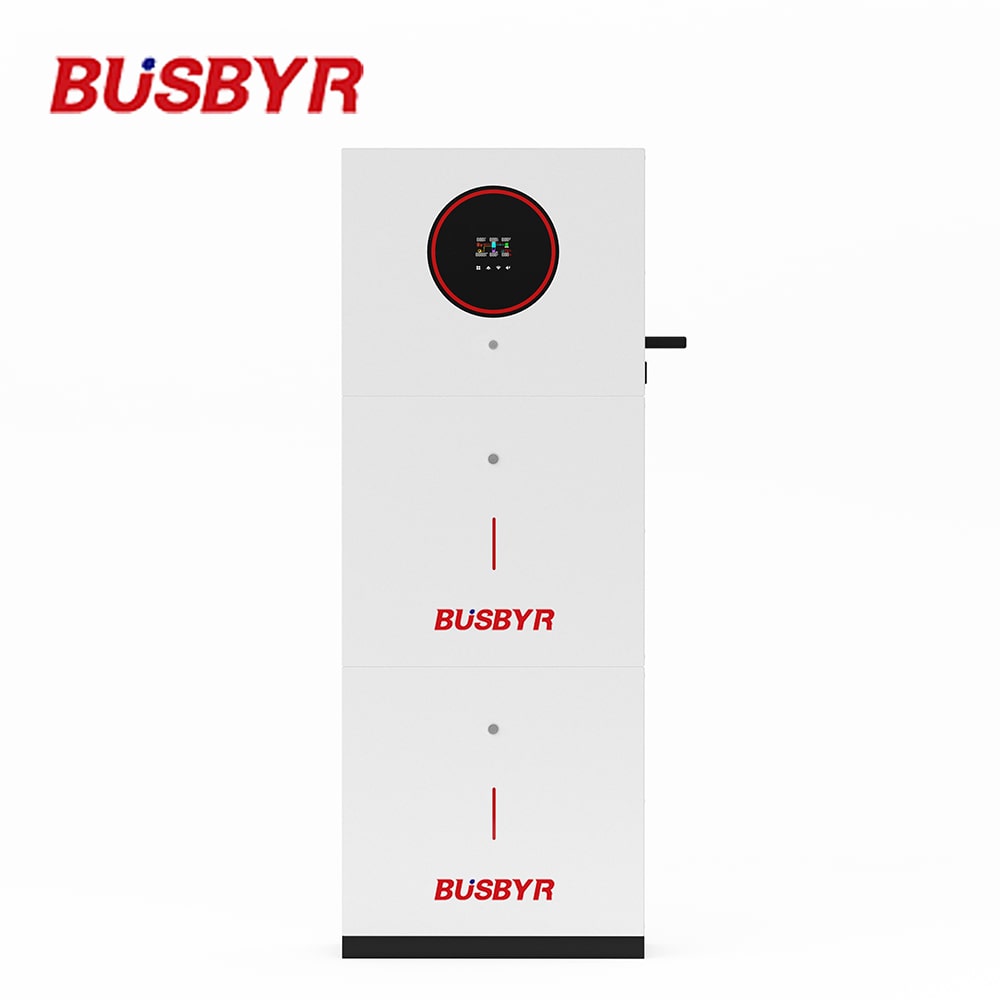

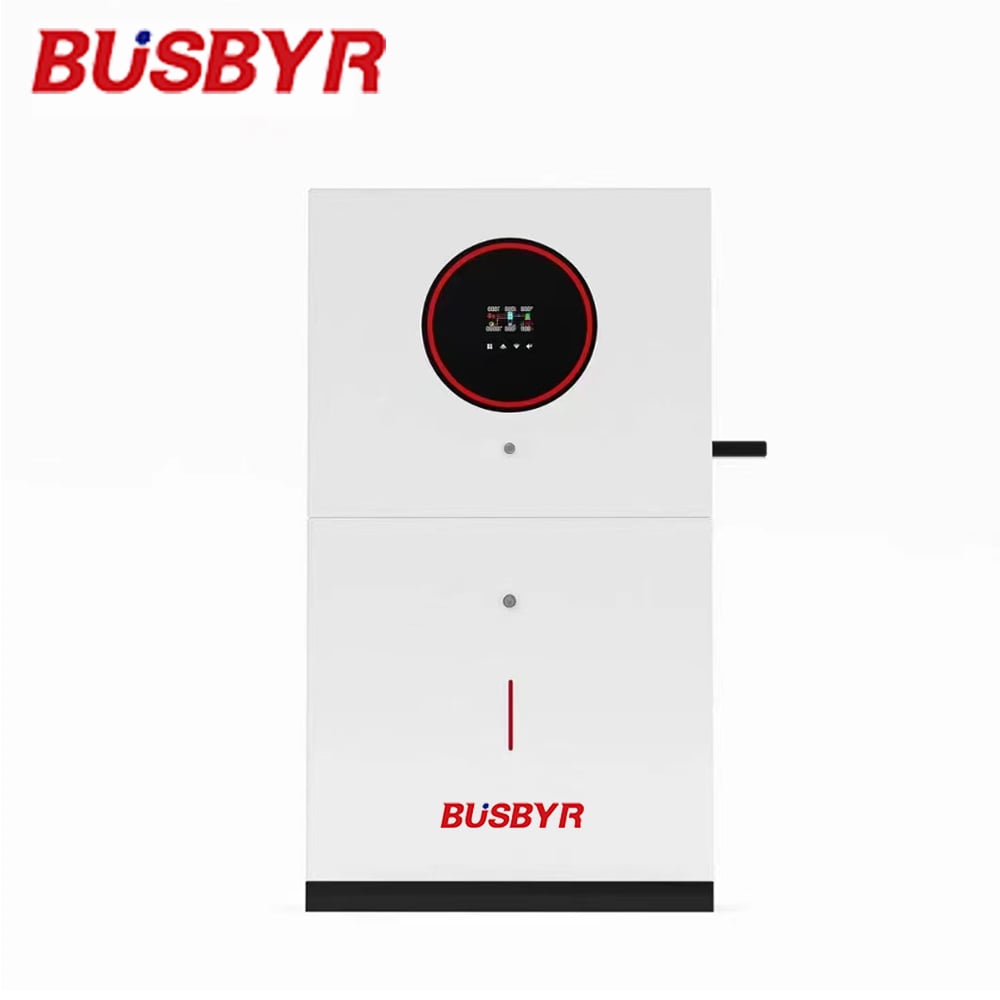

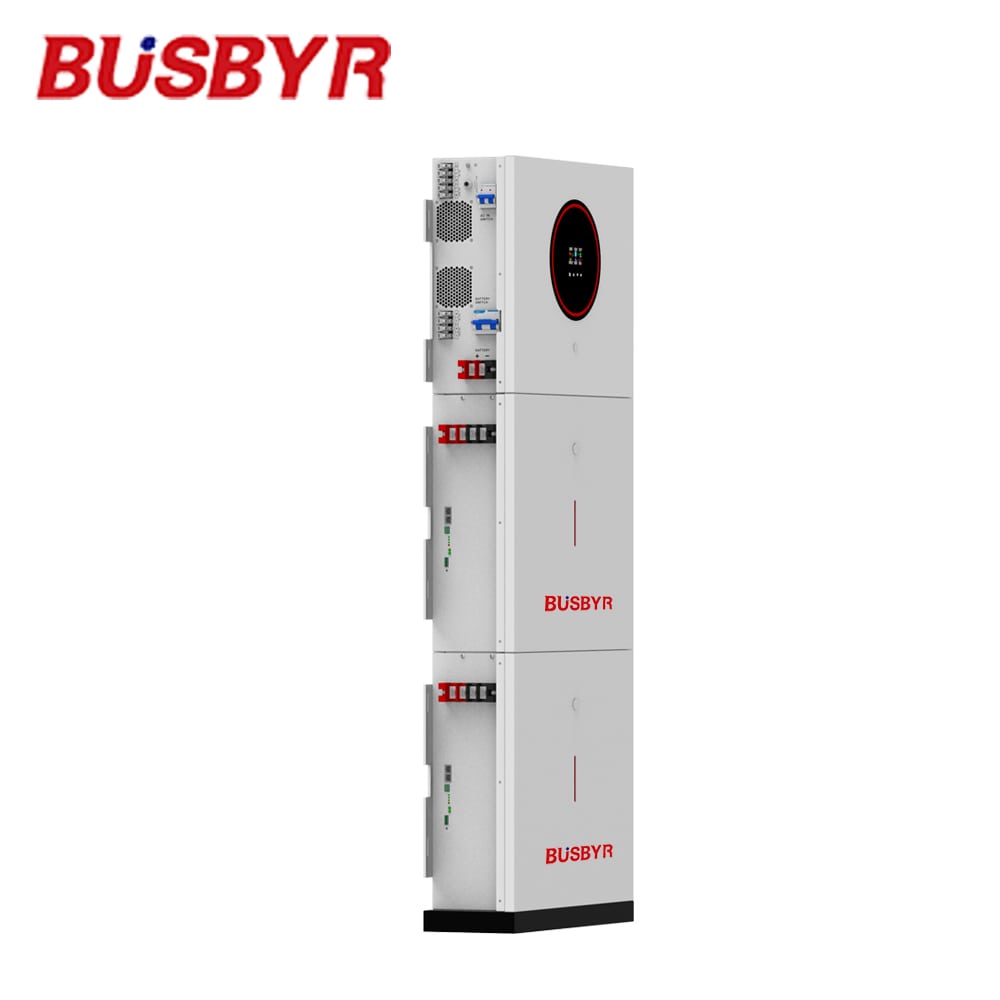

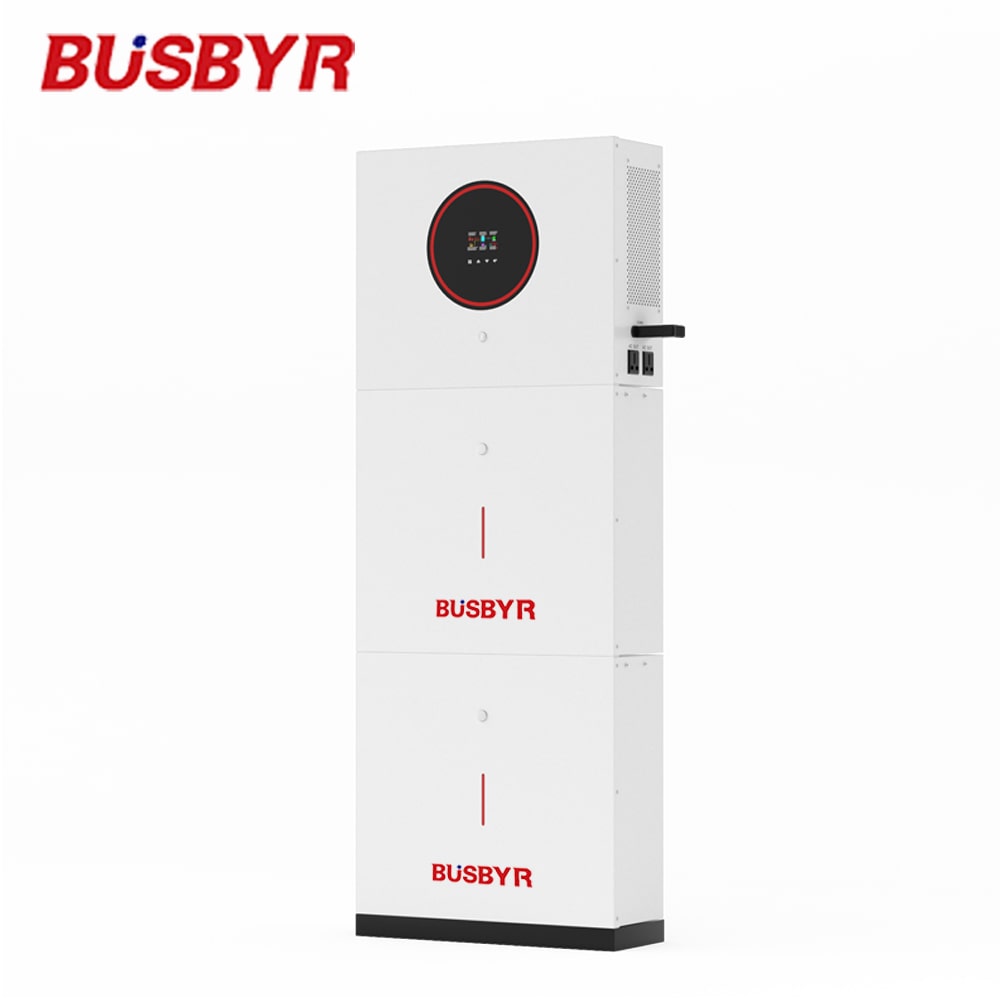

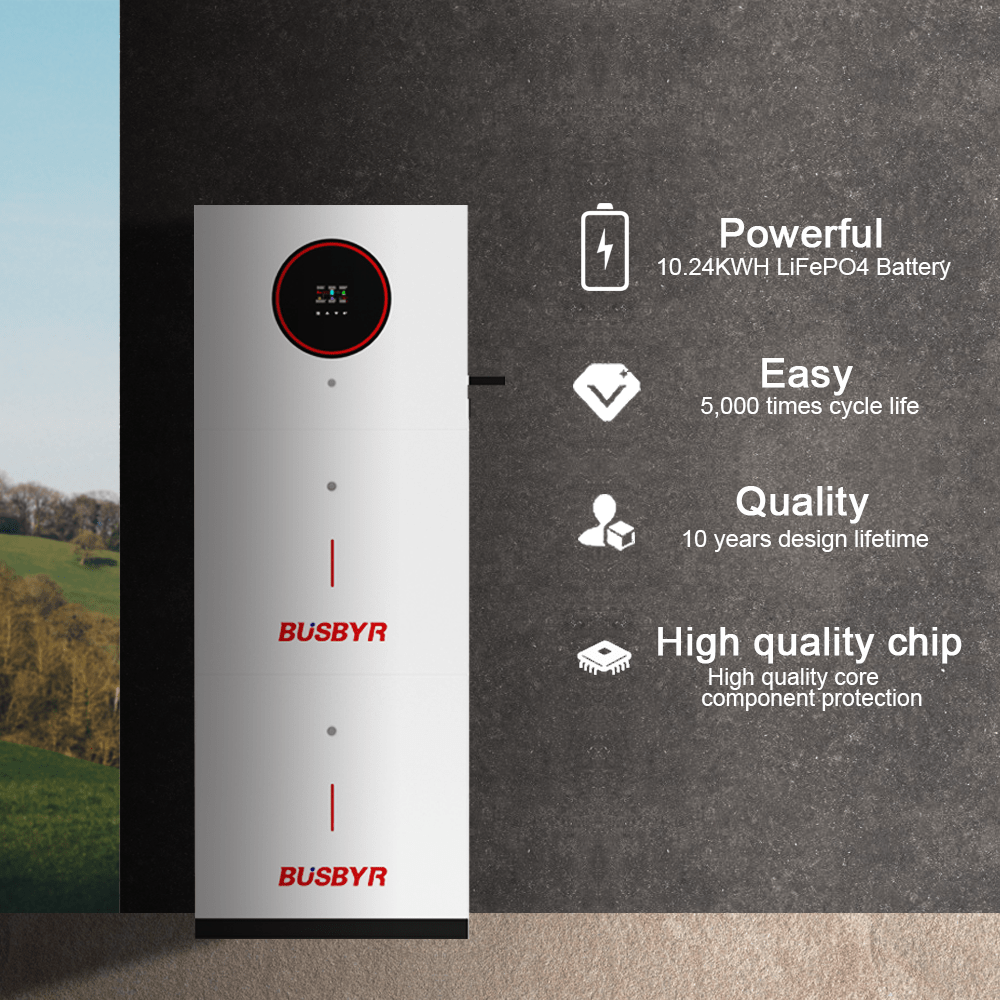

100AH 51.2V 5.12KWH Residential ESS All-in-One Battery Storage System

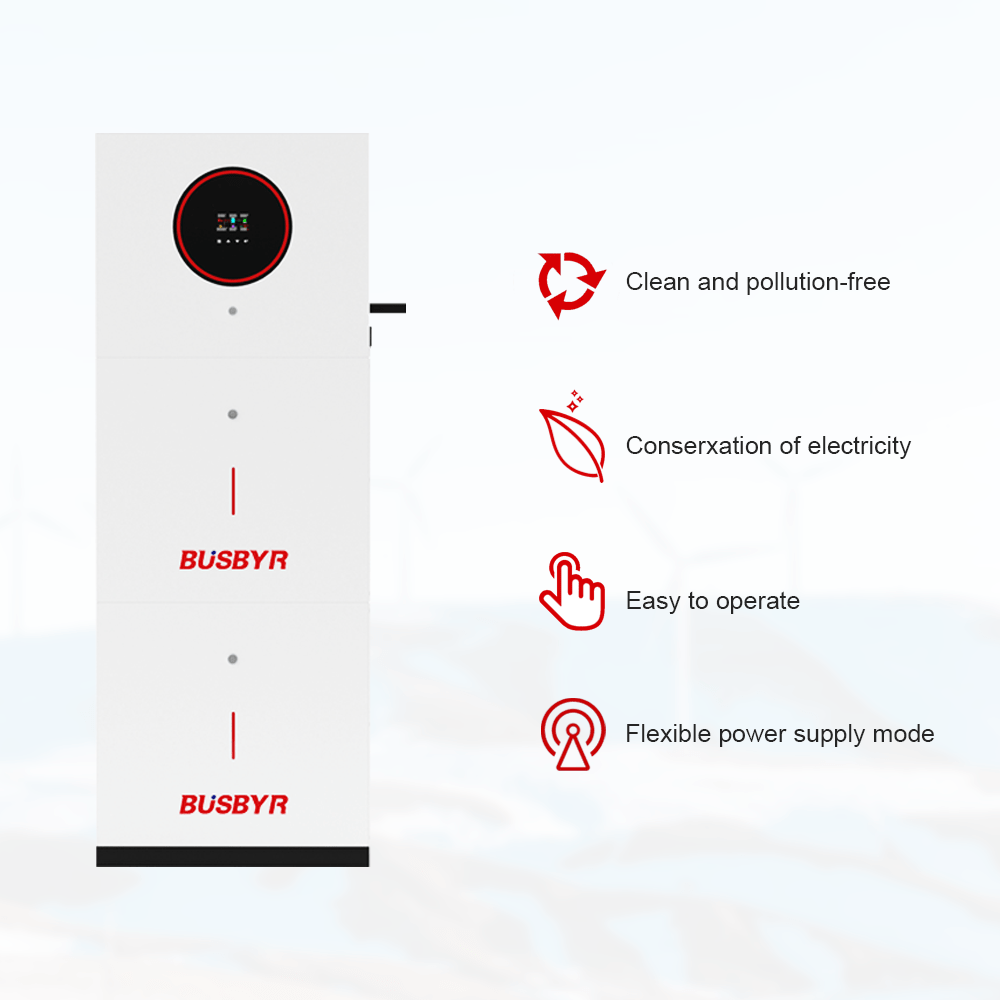

BS5-ESS Series (5/10KWH)Key Features

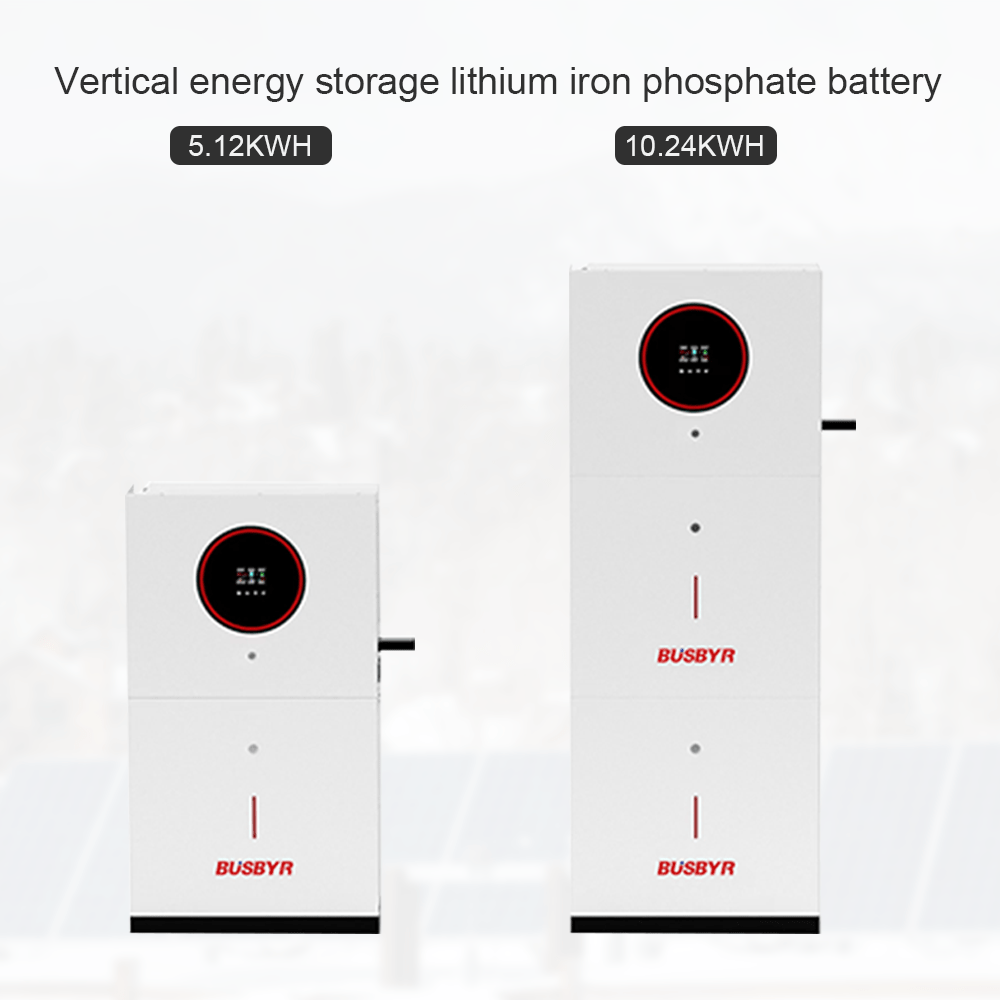

●Lithium battery modular capacity: 5120Wh / 10240Wh
●Integrated inverter design, easy to use and quick to install
●Multiple working modes and flexible charging
●Intelligent BMS system, which can be easily expanded
●Adopts the latest optimized MPPT tracking technology
●App Remote Control&Monitor supported
●IP 65 designed, for better protection against water and dust
●Smart technology and advanced internal design are optimized for its working environment
Description

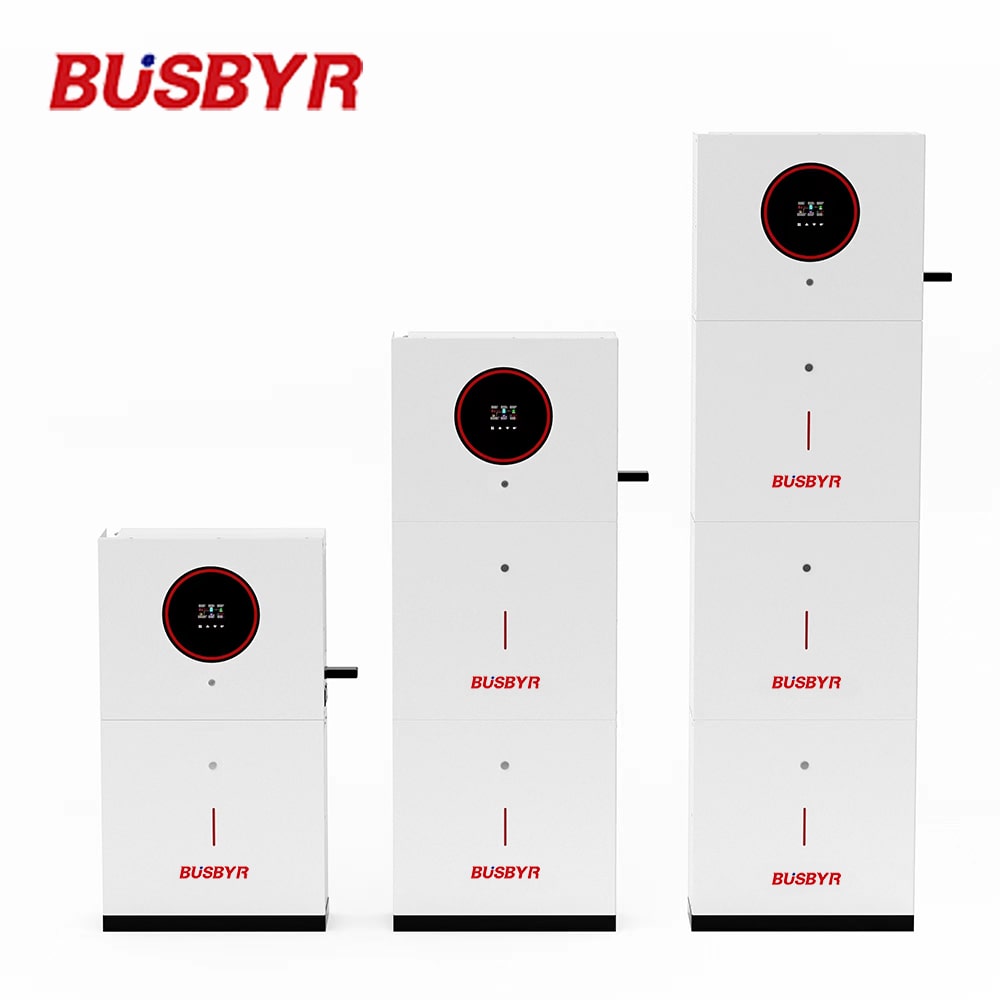

The energy storage system is an all-in-one solution that integrates a hybrid solar inverter and lithium battery into one unit. This model combines off-grid and grid-connected energy management to easily store solar energy in home batteries. 24-hour monitoring can be carried out through the APP application. The energy storage module adopts high-performance, long-life lithium iron phosphate battery. The energy storage system adopts a modular design, including a power module and a battery expansion module, which can be easily combined into a system of any capacity required by the user. Each energy storage module integrates an intelligent BMS system, which can be easily expanded. BS5-AIO range is an effective All-In-ONE(AIO) plug & play installation solution for solar panel installers to benefit from.
Specification
BS5-Alll-in-One Battery | ||
Product Series | BS5-AIO-5 | BS5-AIO-10 |
Rated Voltage | 51.2V | 51.2V |
Working Voltage Range | 40-58.4V | 40-58.4V |
Charge Voltage | 58.4V | 58.4V |
Rated Capacity | 100AH | 200AH |
Energy | 5.12KWH | 10.24KWH |
Rated Charge Current | 50A | 50A |
Peak Charge Current | 100A | 100A |
Rated Discharge Current | 75A | 75A |
Peak Discharge Current | 100A | 100A |
Charge Temperature | 0-55°C | 0-55°C |
Discharge Temperature | -10-55°C | -10-55°C |
Optimum Temperature | 15-25°C | 15-25°C |
Cooling Method | Natural Cooling | Natural Cooling |
Relative Humidity | 5%-95% | 5%-95% |
Altitude | ≤2000M | ≤2000M |
Cycle Life | ≥5000 80%DOD, 0.5C/0.5C, 25°C | |
Communication Interface | CAN/RS485/RS232 | |
Protection | Over temperature/Over curernt/Over voltage protection | |
Design Lifetime | ≥10 years | |

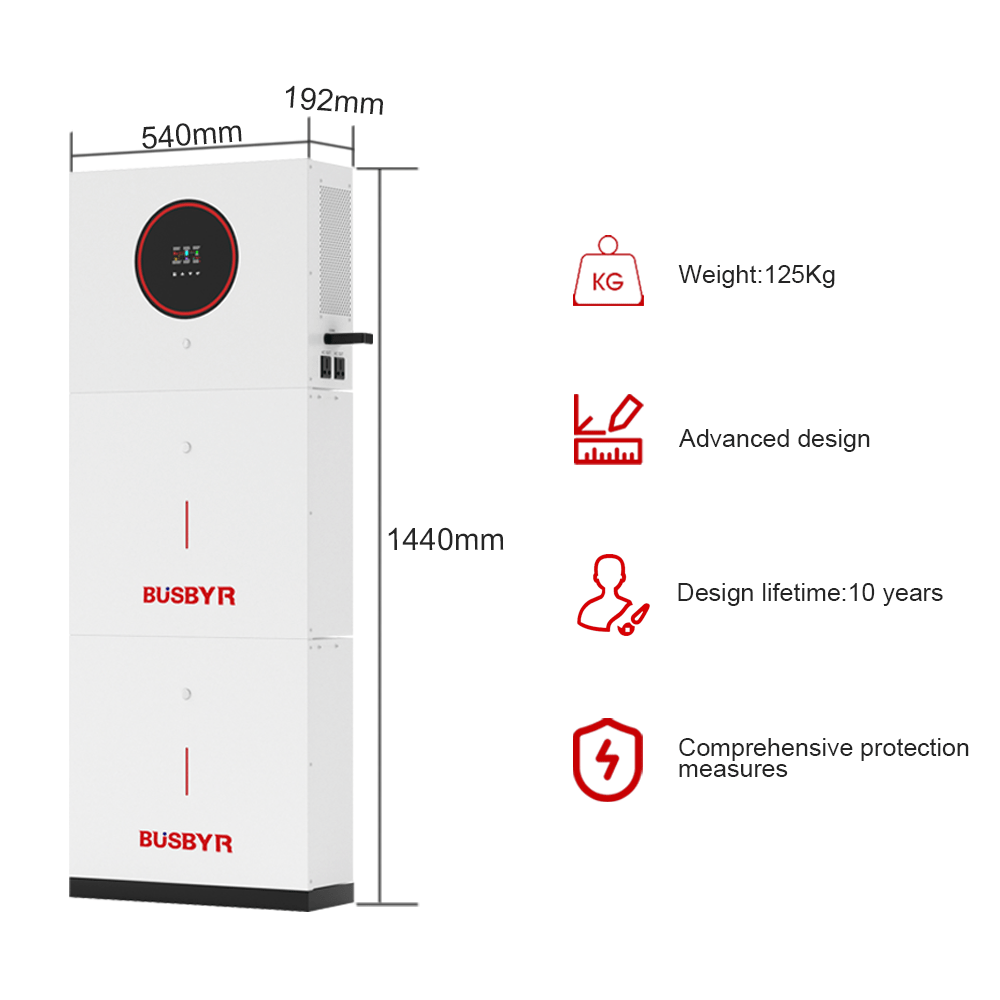

Dimension(L*W*H) | 540*192*963mm | 540*192*1440mm |
Weight(kg) | 75kg | 125kg |
Battery Type | LiFePO4 | |
BS5-Hybrid Inverter | ||
Inverting Mode | ||
Output Voltage Waveform | Pure sine wave | |
Rated Output Power(VA) | 6000 | 6000 |
Rated Output Power(W) | 6000 | 6000 |
Rated Output Voltage(VAC) | 220V/230VAC | |
Output Voltage Error | ±5% | |
Output Frequency Range(Hz) | 50/60HZ | |
AC Charge | ||
Charge Voltage Range | 40-60VDC | |
Charge Current Error | ±5ADC | ±5ADC |
Maximum Charge Current | 60A | 60A |
Solar Charge | ||
Maximum PV Open Circuit Voltage | 500VDC | 500VDC |
PV Operation Voltage Range | 120-500VDC | 120-500VDC |
MPPT Voltage Range | 120-500VDC | 120-500VDC |
Battery Voltage Range | 40-60VDC | 40-60VDC |
Maximum Output Power | 5000W | 5000W |
Noise Emission(dB) | <35 | <35 |
Operation Temperature Range | -15°C-55°C | -15°C-55°C |
Storage Temperature Range | -25°C-55°C | -25°C-55°C |
FAQ
Q1: How about the label and the logo?
A1: Customize label and logo is Acceptable.
Q2: How about the MOQ ?
A2: Depends on Different Model Different Product. Some item without MOQ Request.
Q3: Can I Get the Sample?
A3: Yes, For the Sample in Stock are Ready. The sample can be send to you within 1-2 work days.
Q4: When can you ship it when i place order? Also, what is the shipping terms?
A4:Usually it needs 2-5 work days for product in stock. About 20-30 days for customized order. It is also depends on your quality. We usually by express such as UPS, DHL, Fedex, TNT etc. Also can by sea, It takes the customer make choose.
Q5: Payments?
A5: T/T, Western Union, Paypal, MoneyGram etc.
Q6: What kind of certificates you have for your solar controllers ?
A6: Our solar products has CE,ROHS,ISO9001 certificates approved.
Q7: Are you a manufacturer or trading company?
A7: We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV inverter,PV energy storage oriented. And we have our own factory.
Q8: How are about the delivery?
A8: Sample:1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order:4-8 working days after confirming the sample
Q9: How're about your customers service?
A9: All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is below 0.1%. we do try our best to provide a good customer service.
Q10: Minimum Order Quantity?
A10: Be equal or greater than 1 piece.
