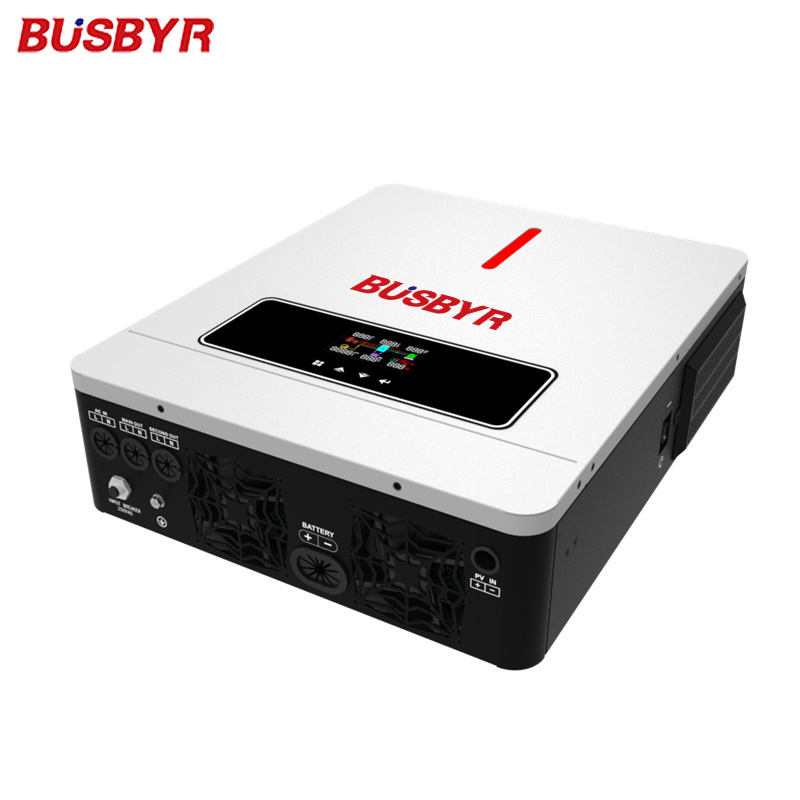

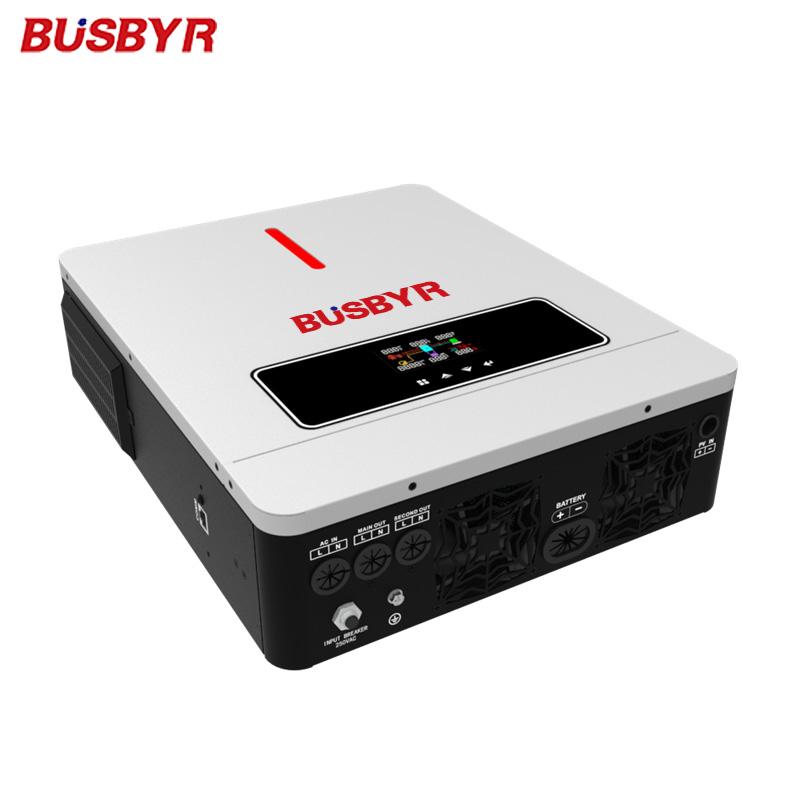

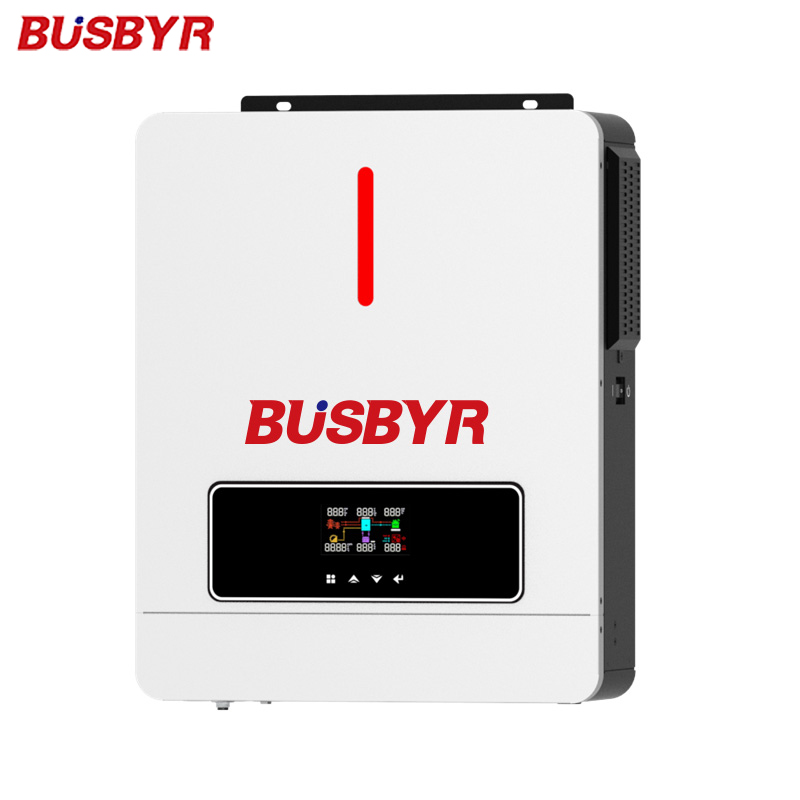

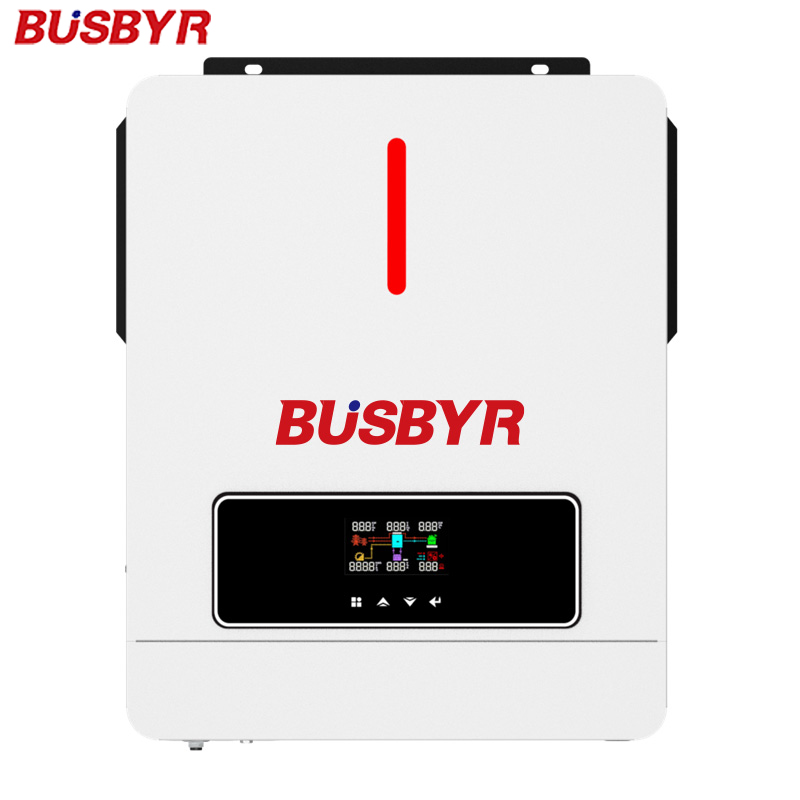

LV Series 120V 6000W 48VDC Pure Sine Wave Solar Inverter with Bulit-in 100A MPPT Hybrid Inverter
BS4-Eco-lv Series (3.6/5KW)●Pure sine wave solar inverter(on/off Grid)
●Output power factor 1.0
●WIFl&GPRS available for IOS and Android
●Inverter can run without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 120A MPPT Solar charge:max 4200W(for 3.6KW),
max 6000W(for 5KW)
●AC output voltage 120VAC
●High PV input voltage range(60~500VDC)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life

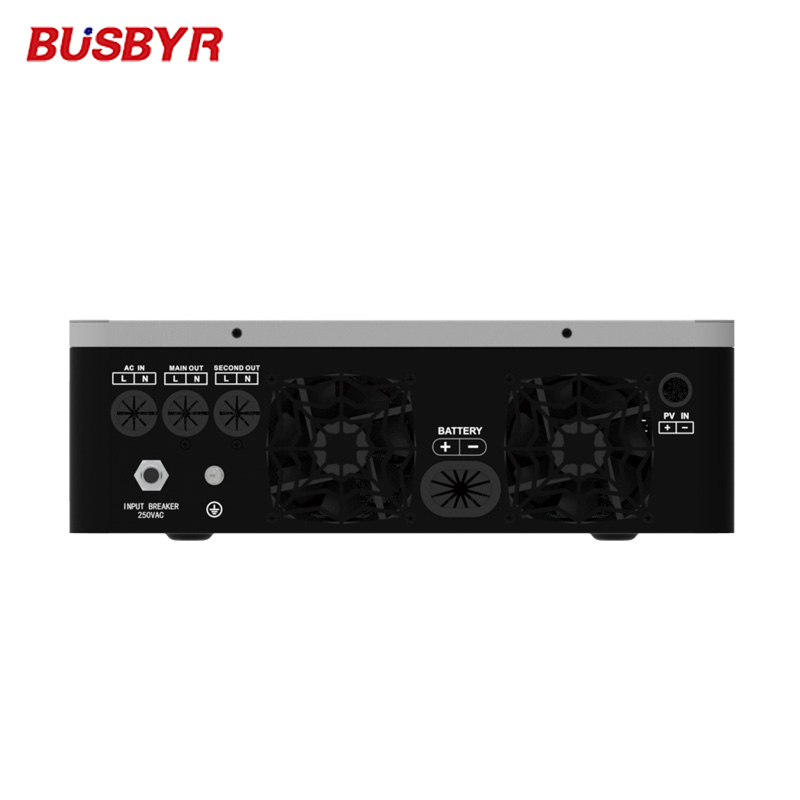

●Dual output
The 6KW intelligent hybrid solar inverter is a new single-phase hybrid inverter with a low battery voltage of 48V to ensure the system is safe and reliable. The BS4-ECO-LV series has compact design, high power density, supports battery-free operation, and saves equipment investment. Built-in 100A MPPT solar charge and lithium battery automatic activation system to expand application scenarios. High photovoltaic input voltage range and dual output make the solar energy system smart and flexible.
MODEL | BS4-ECO-LV 3.6KW PLUS | BS4-ECO-LV-5KW PLUS |
Phase | 1-phase | |
Maximum PV Input Power | 4200W | 6000W |
Rated Output Power | 3600W(3000/3150/3300) | 5000W(4100/4300/4500) |
Maximum Solar Charging Current | 120A | 100A |
GRID-TIE OPERATION | ||
PV Input(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | |
Maximum DC Voltage | 60-450VDC | |
Number of MPPT Trackers/Maximum Input Current | 1/23A | 1/23A |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/110V settable) | |
Output Voltage Range | 60-150VAC | |
Nominal Output Current | 30A | 41.7A |
Power Factor | >0.99 | |
Feed-in Grid Frequency Range | 47~55±0.3HZ/57-65±0.3HZ | |
EFFICIENCY | ||
Maximum Conversion Efficiency(Sloar to AC) | 98% | |
TWO LOAD OUTPUT POWER(V2.0) | ||
Full Load | 3600W | 6200W |
Maximum Main Load | 3600W | 6200W |
Maximum Second Load(battery mode) | 1200W | 1667W |
Main Load Cut Off Voltage | 22VDC | 44VDC |
Main Load Return Voltage | 26VDC | 52VDC |
OFF-GRID OPERATION | ||
AC INPUT | ||
Rated Input Voltage | 110/120VAC | |
Input Voltage Range | 90-140VAC±2% | |
Maximum AC Input Current | 40A | 50A |
Nominal operating frequency | 47~55±0.3HZ/57~65±0.3HZ | |
Surge power | 7200W | 10000W |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/110V settable) | |
Output Waveform | Pure sine wave | |
Efficiency(DC to AC) | 94% | |
BATTERY&CHARGER | ||
Nominal DC Voltage | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 120A |
Maximum AC Charging Current | 80A | |
GENERAL | ||
PHYSICAL | ||
Dimension,D W X H(mm) | 420*350*110 | |
Cartoon Dimension,D X W XH(mm) | 500*415*180 | |
Net Weight(kgs) | 8.8 | 9.5 |
Gross Weight(kgs) | 10.5 | 11.5 |
INTERFACE | ||
Communication Port | RS232/WIFI/GPRS/Lithium Battery | |
ENVIRONMENT | ||
Operating Temperature | -10-50℃ | |
