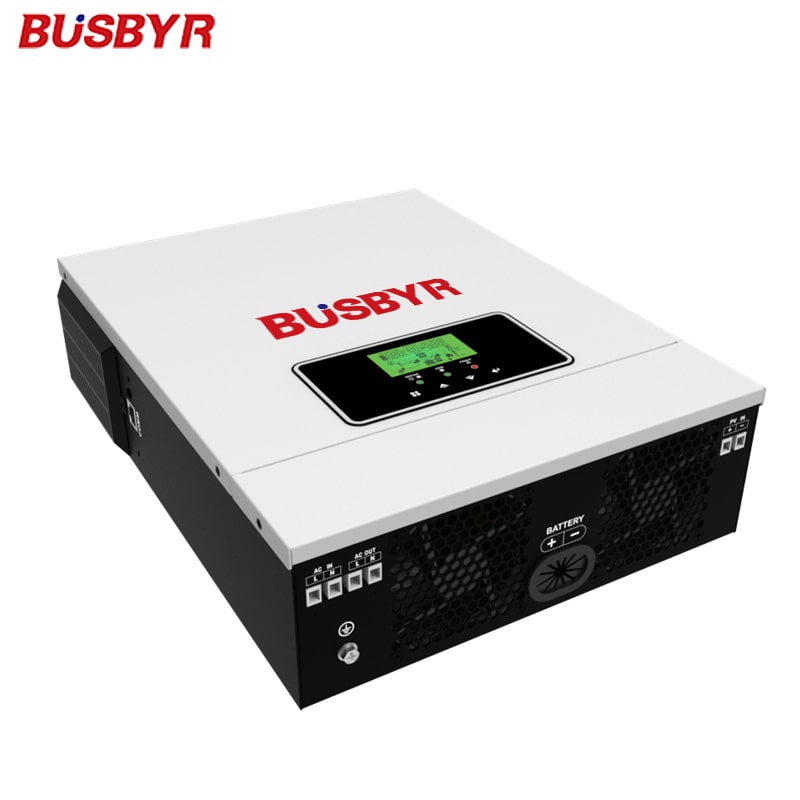

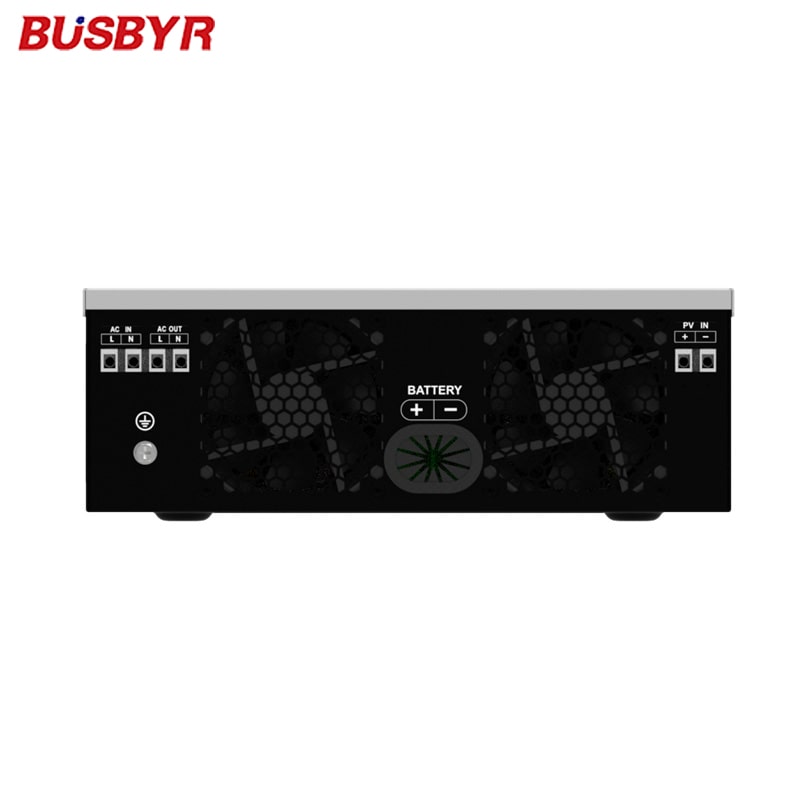

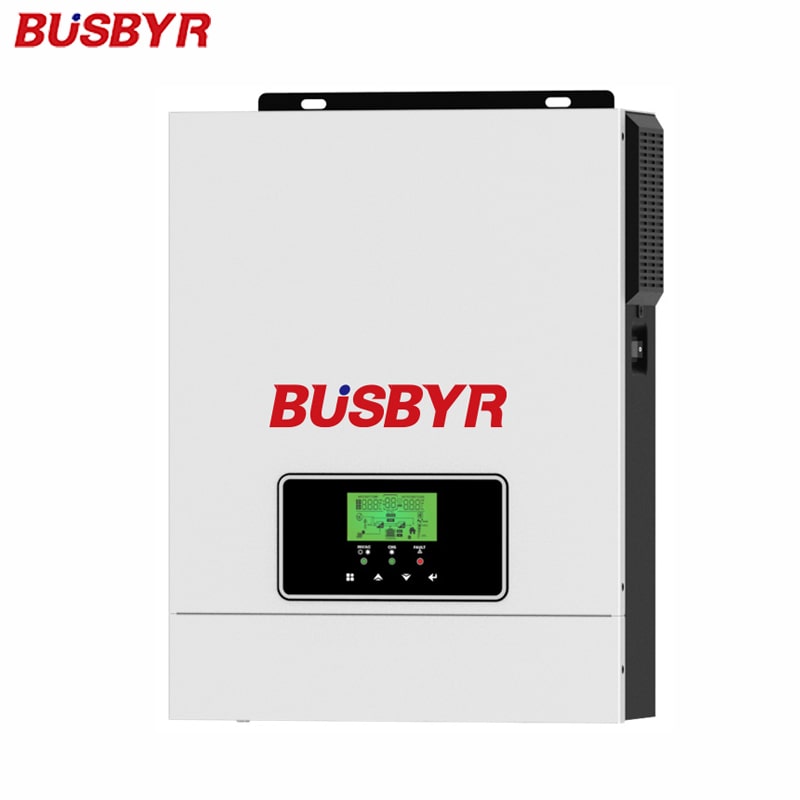

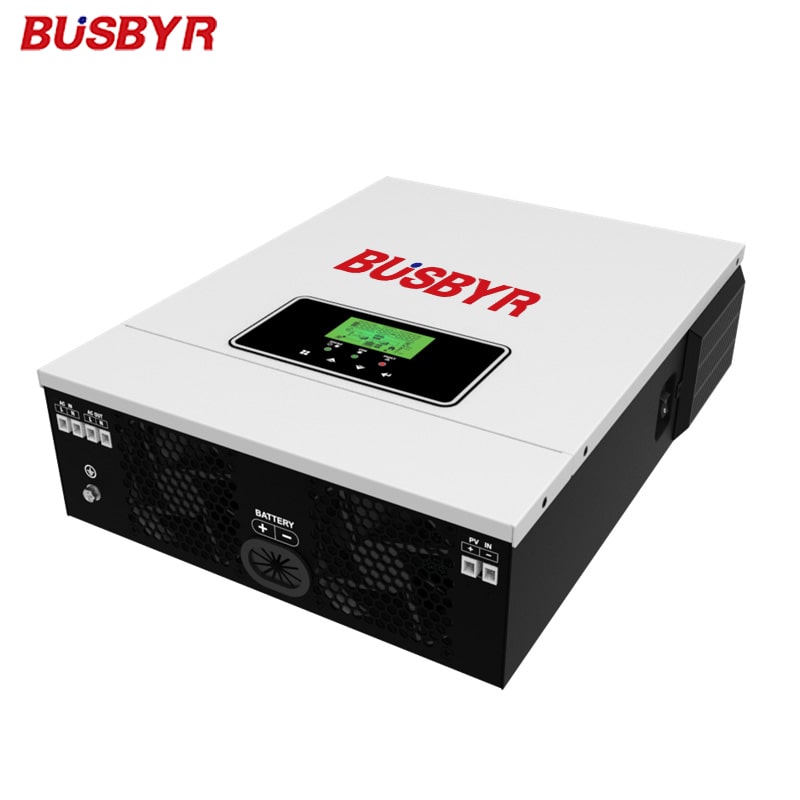

3kva solar inverter with MPPT
BS4 Plus Series (2/3KW)Key Features
●Pure sine wave solar inverter
●PF=1.0
●Support WIFI&GPRS interface for App
●Built-in 80A MPPT solar charger
●High PV input voltage range(30~400VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Compatible with lithium battery
●Solar energy is provided directly to the load first
Description
3kva solar inverter with MPPT has ultra-low starting power, and the photovoltaic input voltage ranges from 30VDC to 400VDC. Widely used in various types: microcomputer systems, communication systems, households, aviation, emergency, communication, industrial equipment, etc. This MPPT solar inverter also supports OEM&ODM.
Specification
Model | BS4-Plus-2000-12 | BS4-Plus-3200-24 |
RATED POWER | 2000VA/1600W | 3200VA/3000W |
AC Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation | 230VAC±5% | |
Surge Power | 4000VA | 6400VA |
Efficiency(Peak)PV to INV | 98% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 12VDC | 24VDC |
Floating Charge Voltage | 13.5VDC | 27VDC |
Overcharge Protection | 16VDC | 33VDC |
Maximum AC Charge Current | 60A | |
SOLAR CHARGER | ||
Maximum PV Array Power | 2000W | 3000W |
MPPT Range Operating Voltage | 30-400VDC | |
Maximum PV Array Open Circuit Voltage | 400VDC | |
Maximum Charging Current | 80A | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 357*273*95 | |
Cartoon Dimension,D X W XH(mm) | 440*340*170 | |
Net Weight(kgs) | 5 | 5.5 |
Gross Weight(kgs) | 6 | 6.5 |
Communication interface | RS232/GPRS/WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non~condensing) | |
Operating Temperature | -10-50℃ | |
