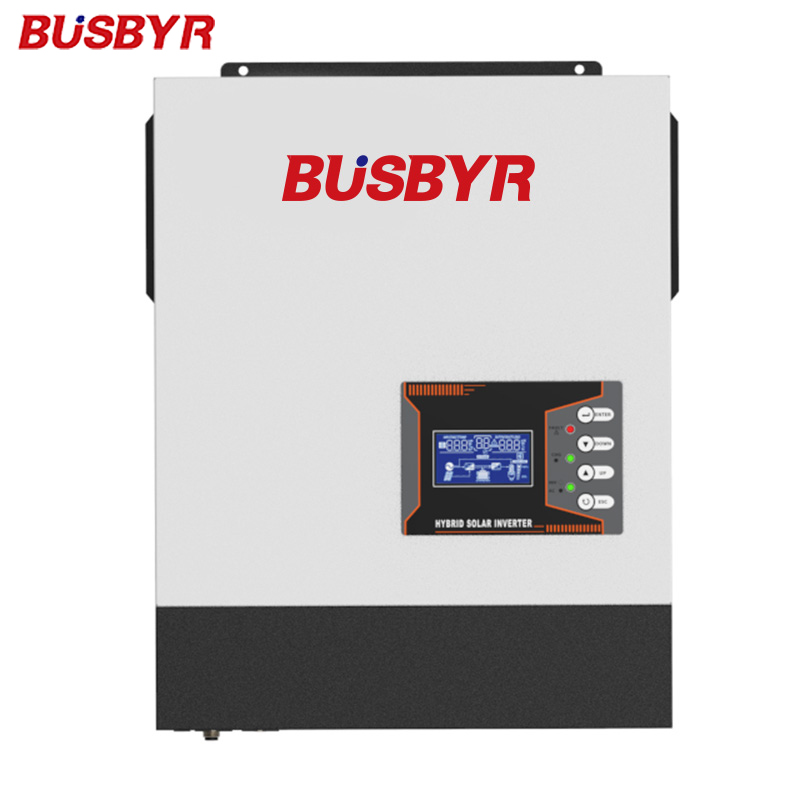

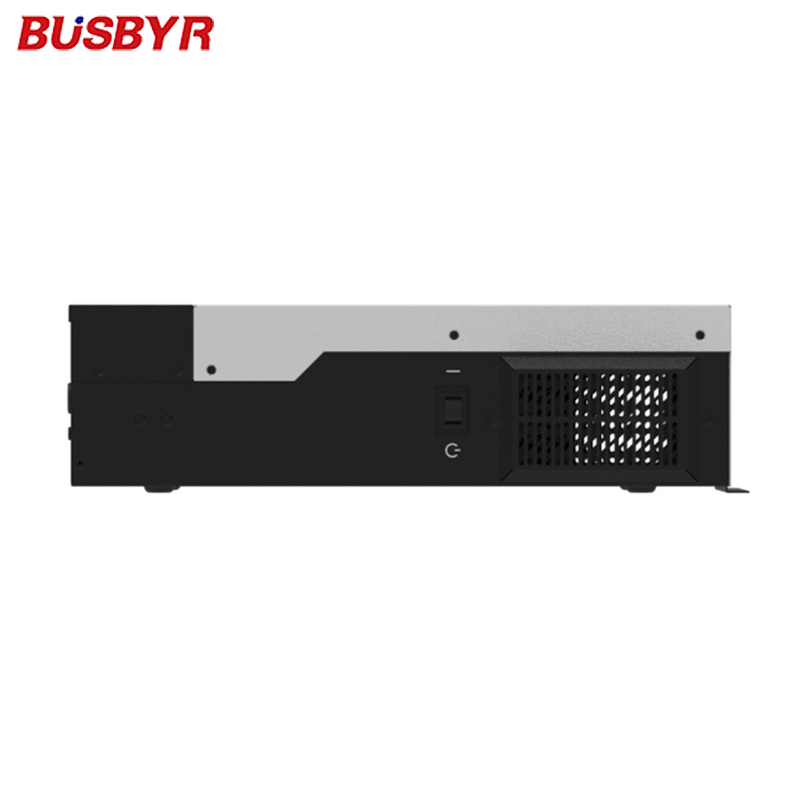

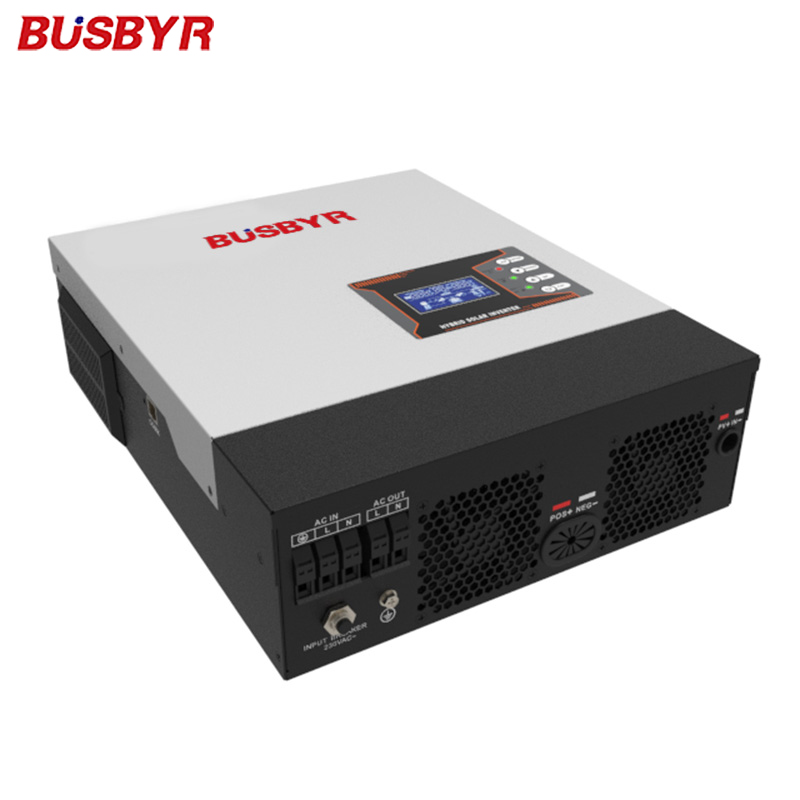

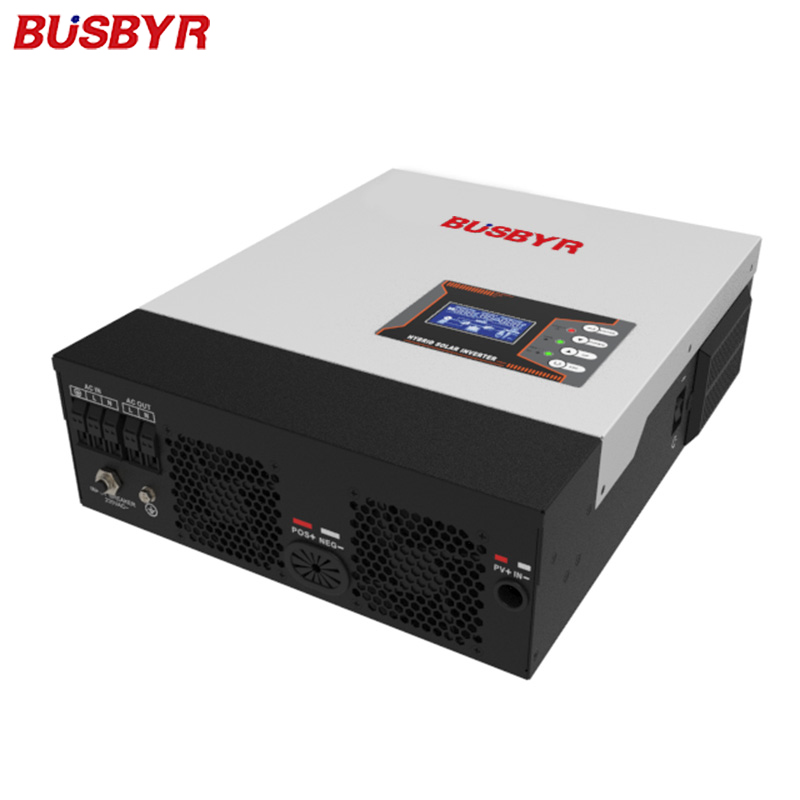

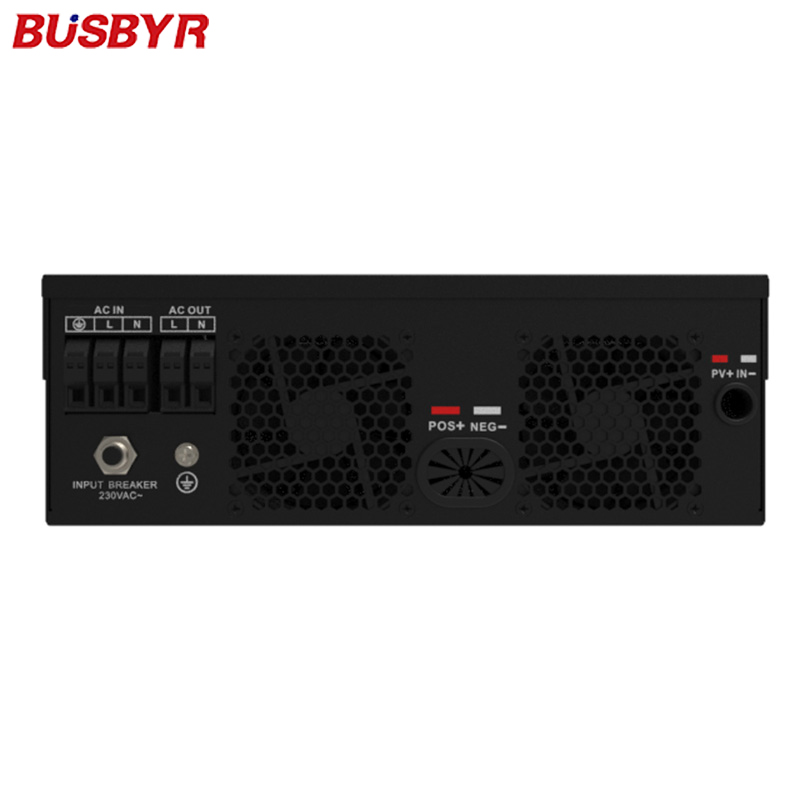

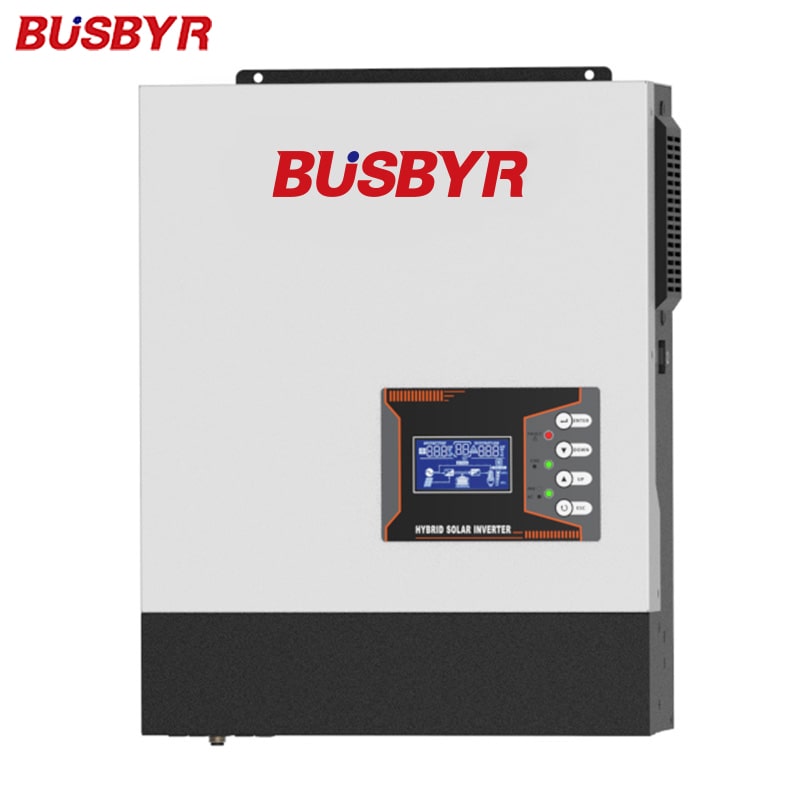

3.2KW off grid solar power inverter
BS1 Series (1.5/2/3/5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for App
●Built-in 80A MPPT solar charger
●With wide PV input range: 120VDC-450VDC
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Compatible with lithium battery
●Solar energy is provided directly to the load first
Description
The market divides photovoltaic inverters into two types: photovoltaic off-grid inverters and grid tie inverters. There is no big difference in the main circuit structure between off-grid solar power inverters and grid tie solar power inverters. The main difference is that photovoltaic grid-connected inverters need to consider the operation safety of grid-connected and grid-tie inverters. This is the 3.2kw off grid solar power inverter with pure sine wave, smart battery charge design and built-in 80A MPPT solar charger.
Specification
Model | BS1-White-3200-24 | BS1-White-3200-48 |
RATED POWER | 3200VA/3200W | 3200VA/3200W |
AC Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation | 230VAC±5% | |
Surge Power | 6400VA | 6400VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms(For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum AC Charge Current | 80A | 60A |
SOLAR CHARGER | ||
Maximum PV Array Power | 4000W | 4000W |
MPPT Range Operating Voltage | 120~450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 80A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 384*330*105 | |
Cartoon Dimension,D X W XH(mm) | 480*378*205 | |
Net Weight(kgs) | 7.95 | 7.95 |
Gross Weight(kgs) | 8.4 | 8.4 |
Communication interface | RS232/GPRS/WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5%to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10~50℃ | |
