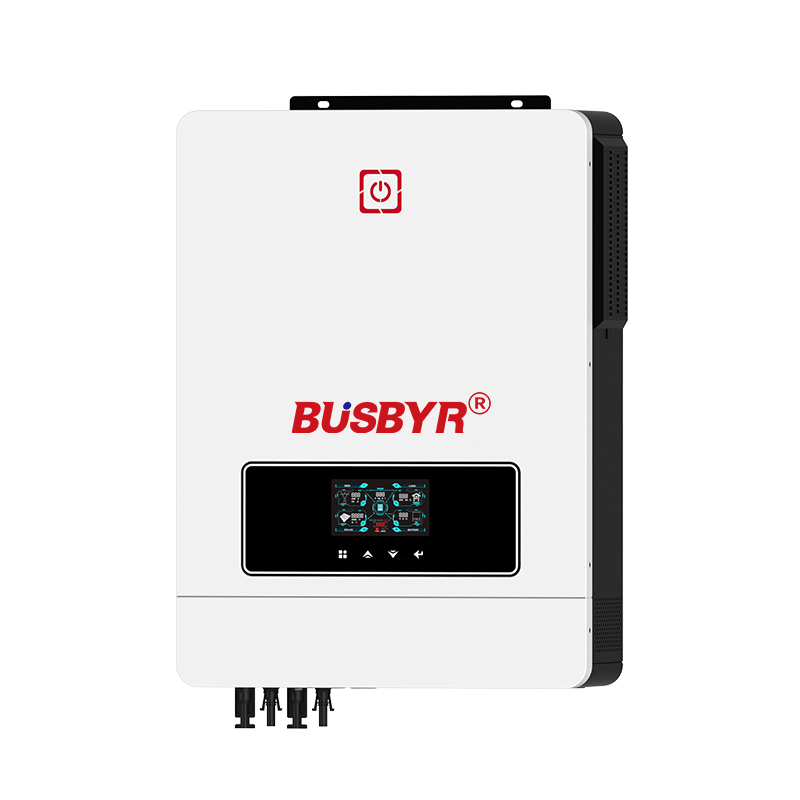

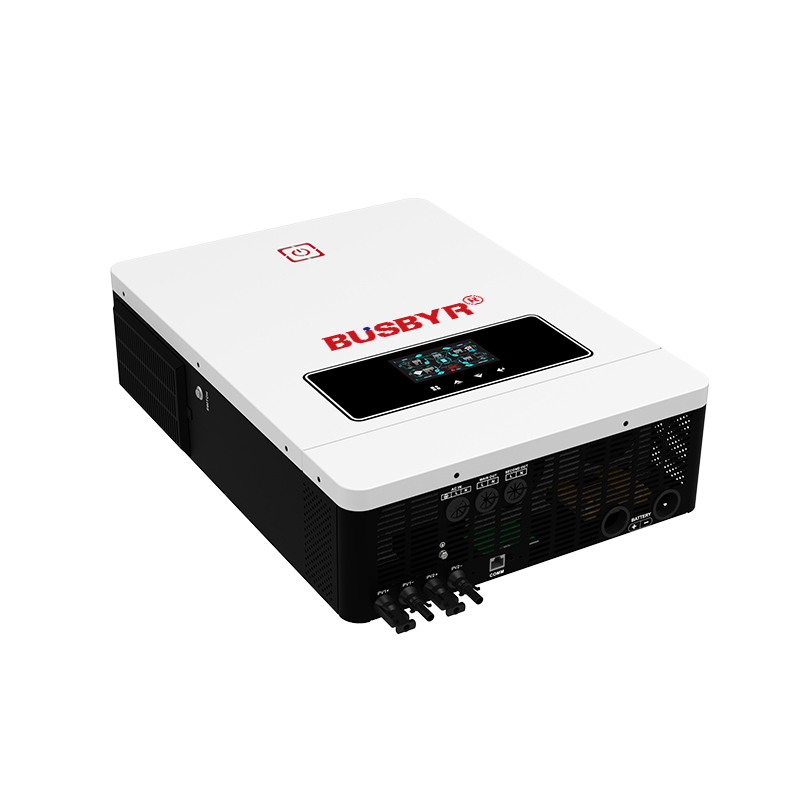

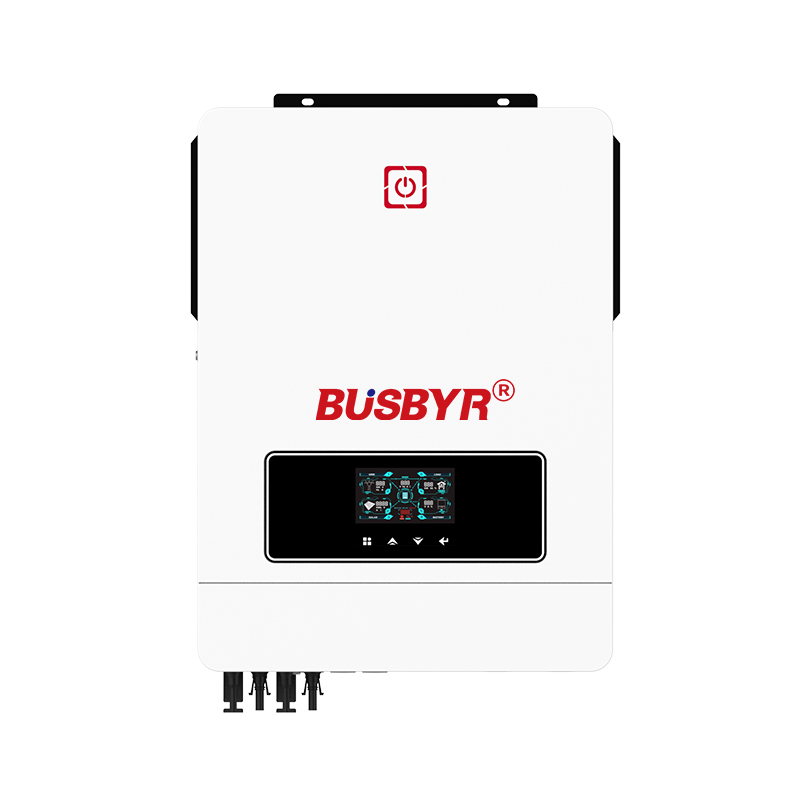

10kva hybrid solar inverter
BS4 Max Series (7.2/8.2/10.2KW)Key Features
●Pure sine wave solar inverter(on/off Grid)
●Output power factor 1.0
●Support WIFI&GPRS for App
●Inverter running without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 160A MPPT solar charger (for 8.2kw,10.2kw),140 A(for 7.2kw)
●High PV input voltage range(90~500VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life

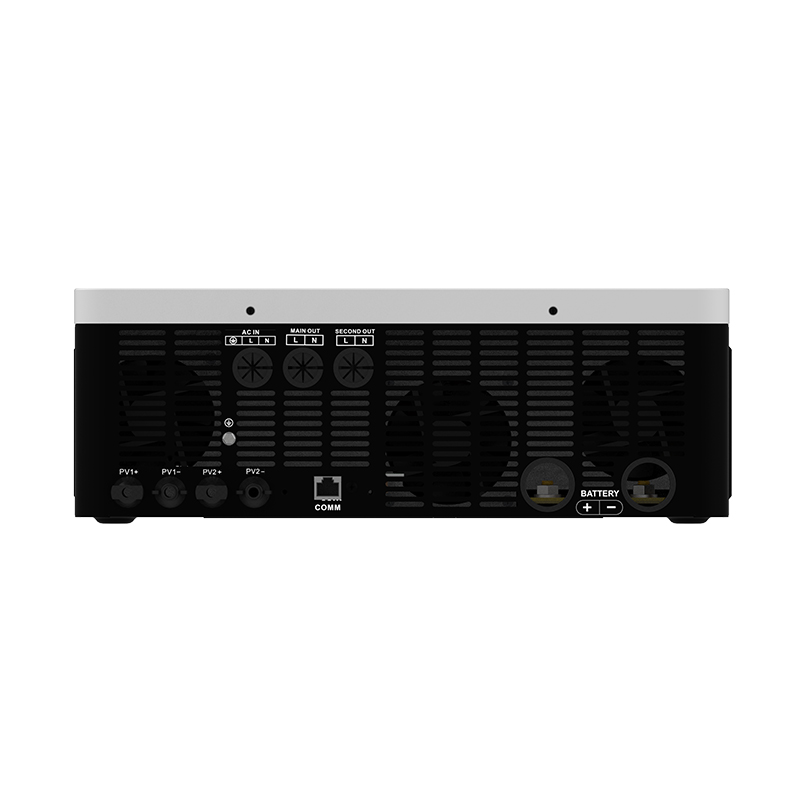

●Dual output
●Dual PV Input
●Touch button
●On Off Grid Work Mode

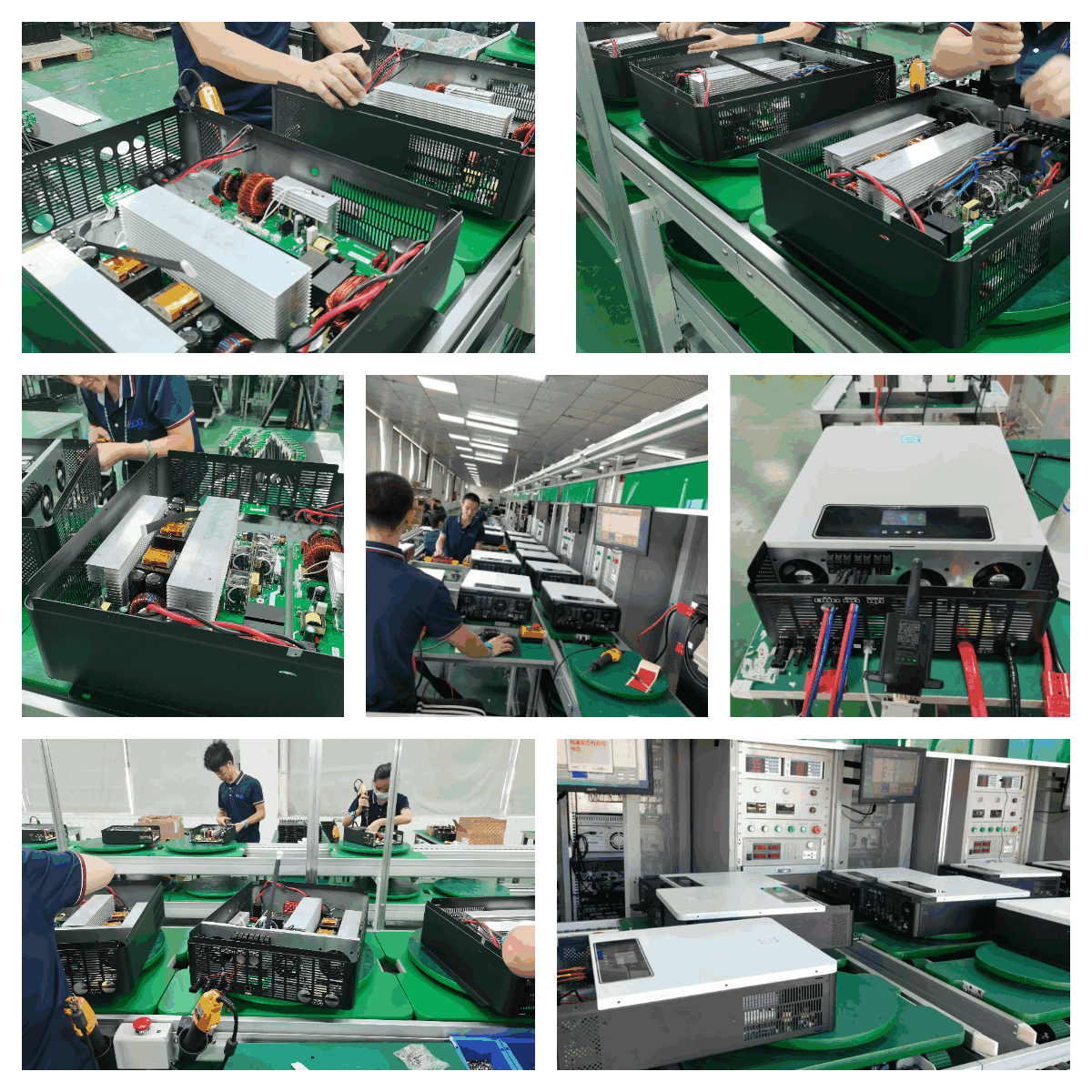

Description

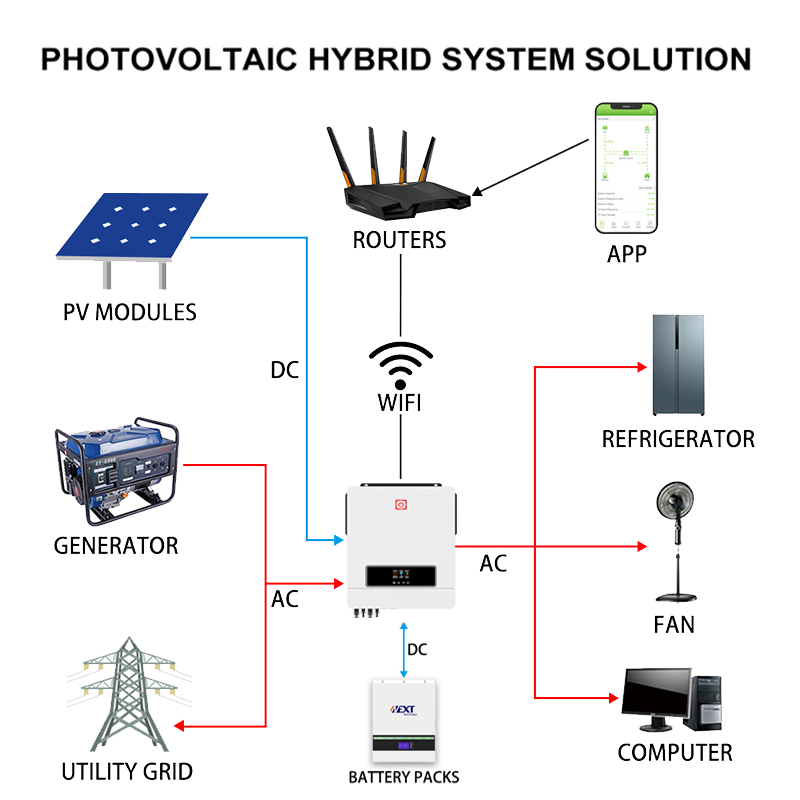

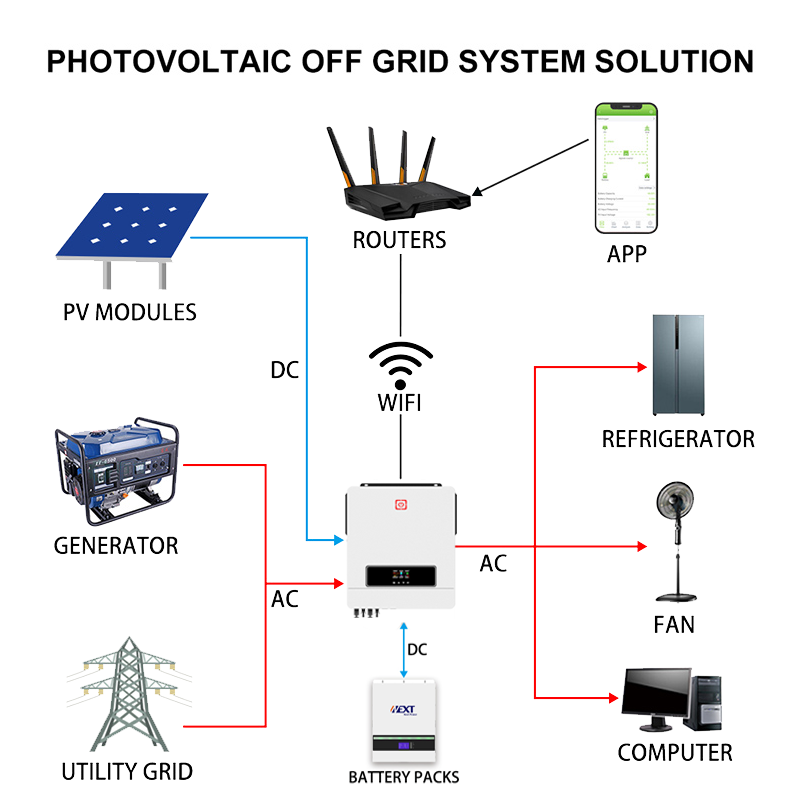

10kva hybrid solar inverter is a multifunctional grid-tie solar inverter, which integrates MPPT solar charge controller, high-frequency pure sine wave inverter and UPS function module in one machine, which is very suitable for grid-connected backup power supply and self-use applications. The transformerless design provides reliable power conversion in a compact size. The entire system also requires other equipment for complete operation, such as photovoltaic modules, generators or the utility grid. Please consult your system integrator for other possible system architectures based on your requirements.
Specification
MODEL | BS4-MAX-7.2KW | BS4-MAX-8.2KW | BS4-MAX-10.2KW | BS4-MAX-10.8KW |
Phase | 1-phase | |||
Maximum PV Input Power | 7200W | 8200W | 10200W | 10800W |
Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA | |
Maximum Solar Charging Current | 140A | 160A | 160A | 160A |
GRID-TIE OPERATION | ||||
PV Input(DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC | |||
MPPT Voltage Range | 90VDC-450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | 2/18A | ||
GRID OUTPUT(AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Voltage Range | 195-253VAC | |||
Nominal Output Current | 31.3A | 35.6A | 44.3A | |
Power Factor | >0.99 | |||
Feed-in Grid Frequency Range | 49~51±1Hz | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency(DC/AC) | 98% | |||
TWO LOAD OUTPUT POWER | ||||
Full Load | 7200W | 8200W | 10200W | |
Maximum Main Load | 7200W | 8200W | 10200W | |
Maximum Second Load(battery mode) | 2400W | 2733W | 3400W | |
Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | |
Main Load Return Voltage | 52VDC | 52VDC | 52VDC | |
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
Acceptable Input Voltage Range | 90-280 VAC or 170-280VAC | |||
Maximum AC Input Current | 40A | 40A | 50A | |
Nominal operating frequency | 50/60Hz | |||
Surge power | 14400W | 16400W | 20400W | |
PV INPUT(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC-450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||
BATTERY MODE OUTPUT(AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency(DC to AC) | 94% | |||
BATTERY&CHARGER | ||||
Nominal DC Voltage | 48VDC | 48VDC | 48VDC | |
Maximum Solar Charging Current | 140A | 160A | 160A | |
Maximum AC Charging Current | 120A | 140A | 140A | |
GENERAL | ||||
PHYSICAL | ||||
Dimension,D X W X H(mm) | 420*310*110 | 530*420*160 | ||
Cartoon Dimension,D X W XH(mm) | 588*463*205 | 618*463*205 | ||
Net Weight(kgs) | 13.1 | 14.2 | 14.5 | 14.8 |
Gross Weight(kgs) | 14.1 | 15.7 | 16 | 16.3 |
INTERFACE | ||||
Communication Port | RS232/WIFI//GPRS/Lithium Battery | |||
ENVIRONMENT | ||||
Operating Temperature | -10-50℃ | |||
