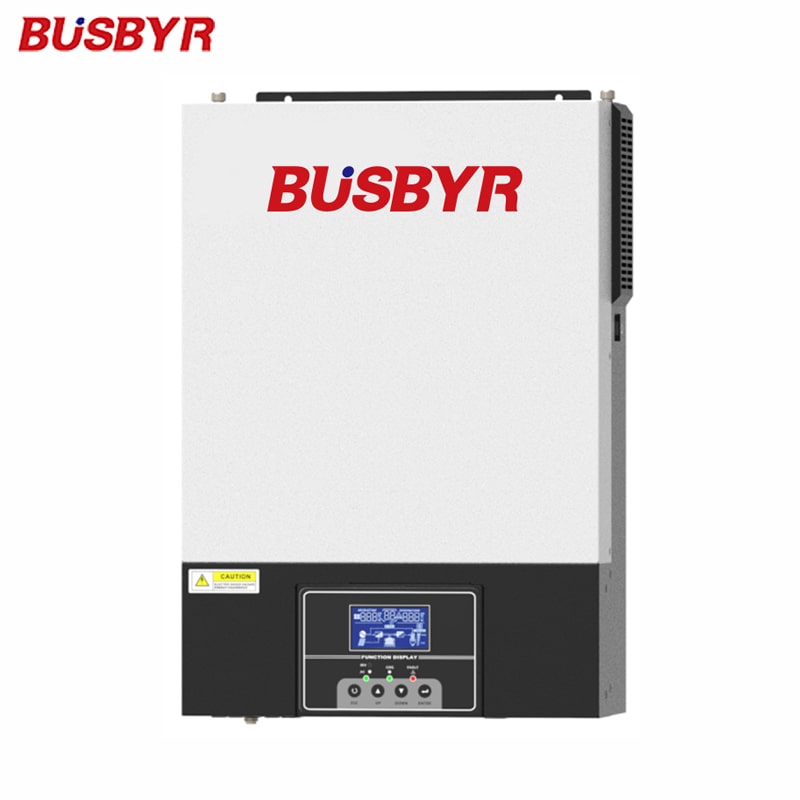

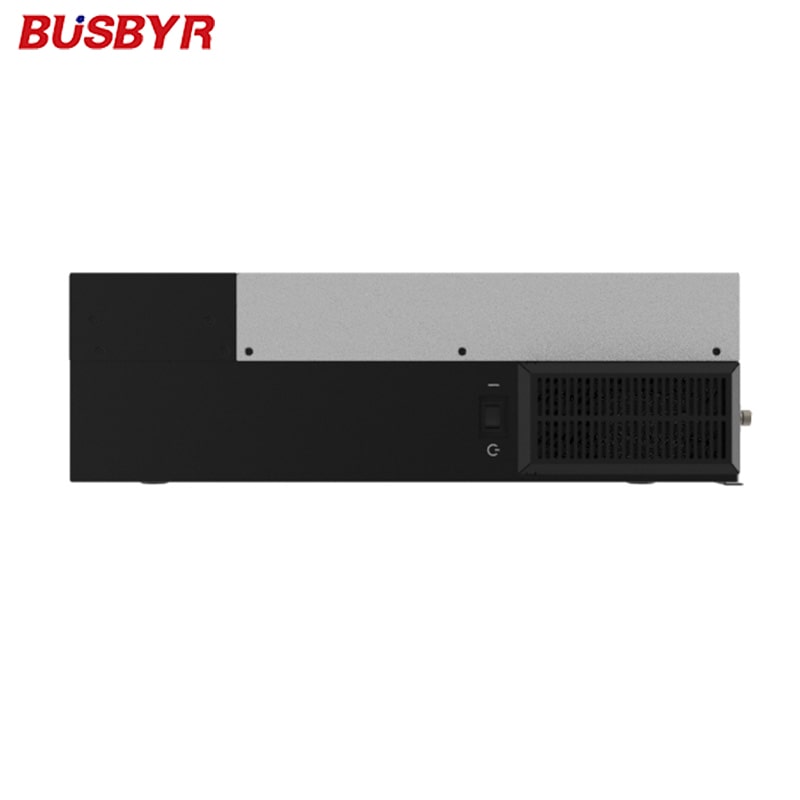

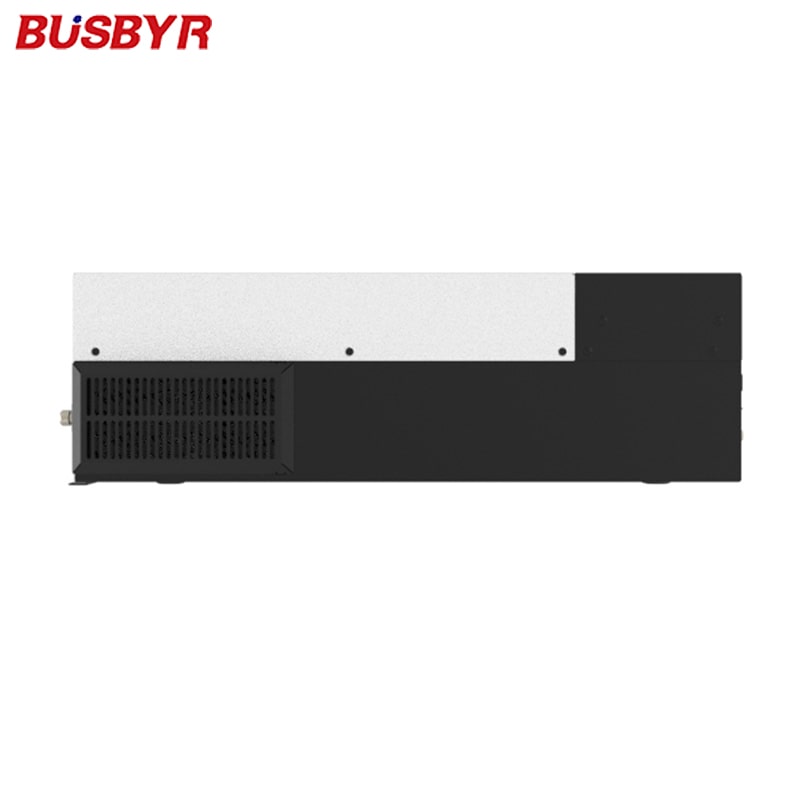

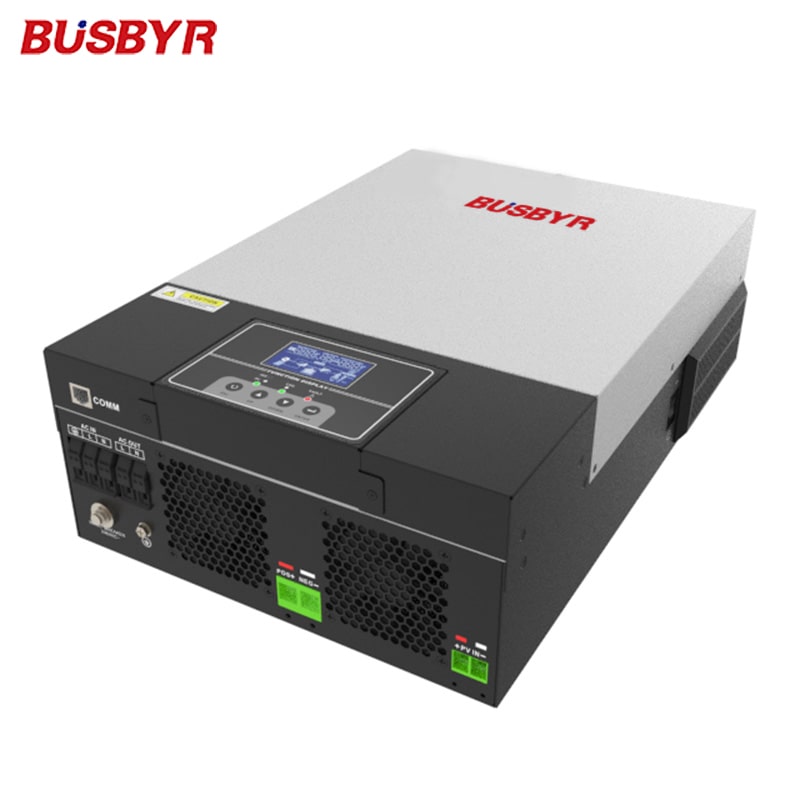

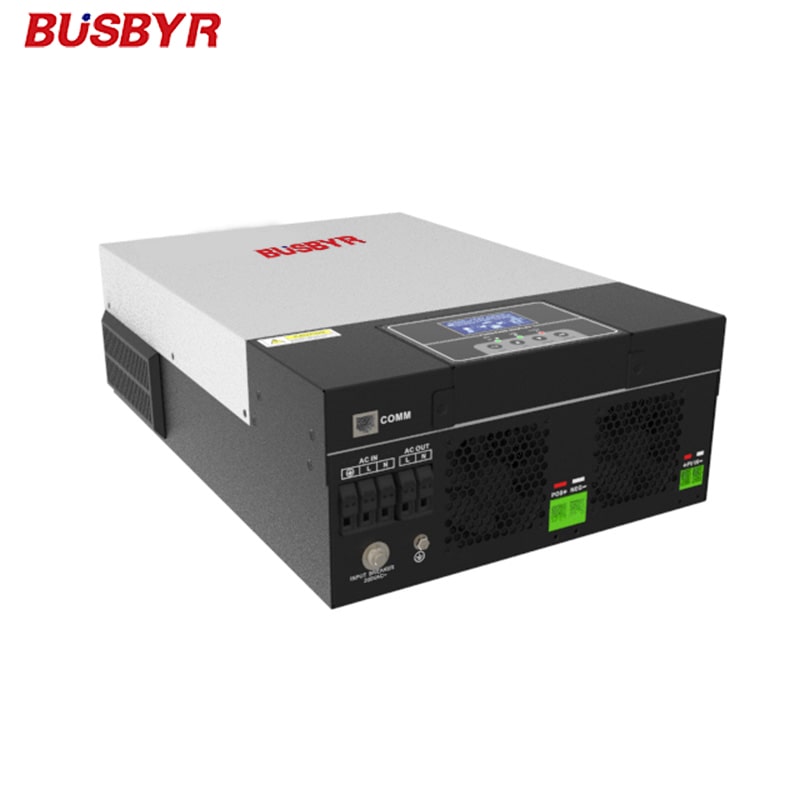

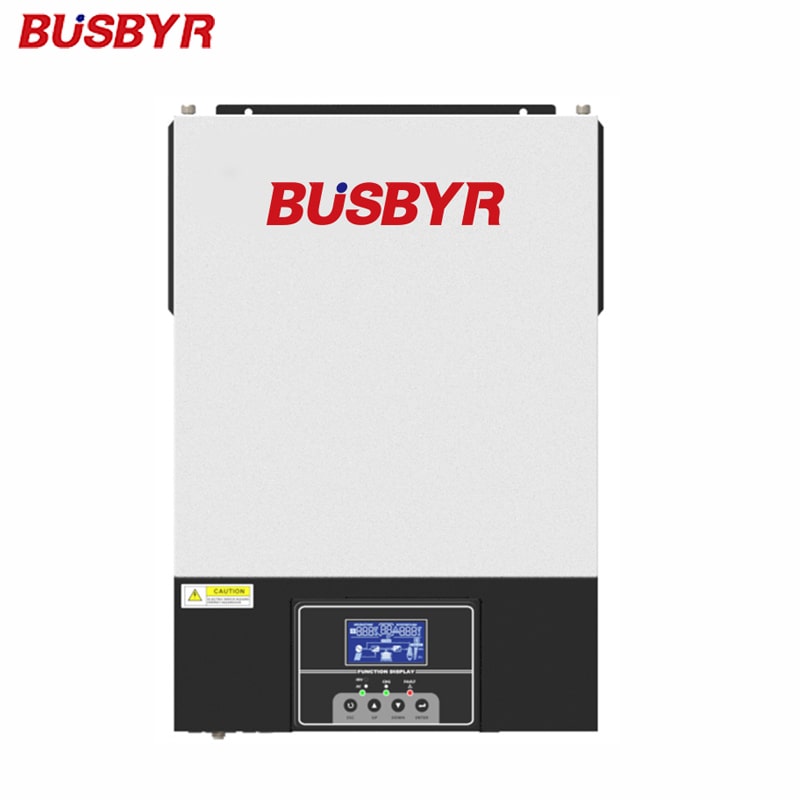

5.5KW off grid inverter
BS3 Series (3.5/5.5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for APP
●Inverter running without battery
●Built-in 100A MPPT solar charger
●With wide PV input range: 120VDC-450VDC
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Built-in Remote LCD Display
Description
The 5.5KW off grid inverter is equivalent to a voltage source, which mainly functions as an independent grid, so it is also called an independent inverter. BS3 series 5500w off-grid inverter has a maximum efficiency of 98%, and supports RS232/GPRS/WIFI/Remove LCD interface. This type is usually used in satellite communication equipment, military vehicles, medical ambulances, police cars, ships, solar and wind power generation and other places that require emergency backup power, and can constitute an EPS emergency power system.
Specification
Model | BS3-3500W | BS3-5500W |
RATED POWER | 3500VA/3500W | 5500VA/5500W |
Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 7000VA | 11000VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum Charge Current | 80A | 80A |
SOLAR CHARGER | ||
Maximum PV Array Power | 5000W | 6000W |
MPPT Range Operating Voltage | 120w450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 100A | 100A |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 100*300*440 | |
Cartoon Dimension,D X W XH(mm) | 555*393*225 | |
Net Weight(kgs) | 10 | 11 |
Gross Weight(kgs) | 11 | 12 |
Communication interface | RS232/GPRS/WIFI/Remove LCD | |
OPERATING ENVIRONMENT | ||
Humidity | 5%to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10-50℃ | |
