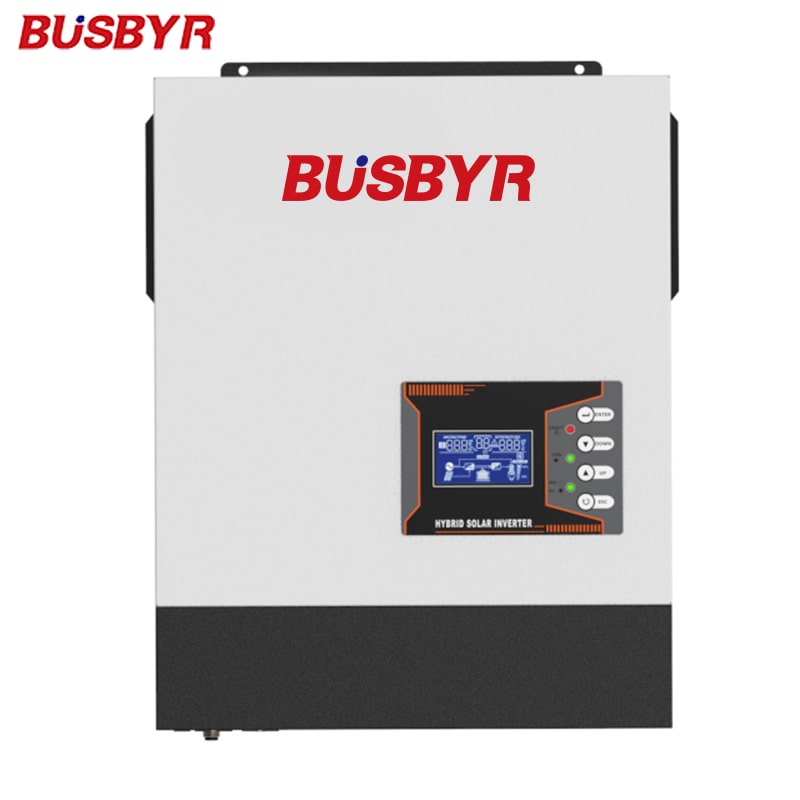

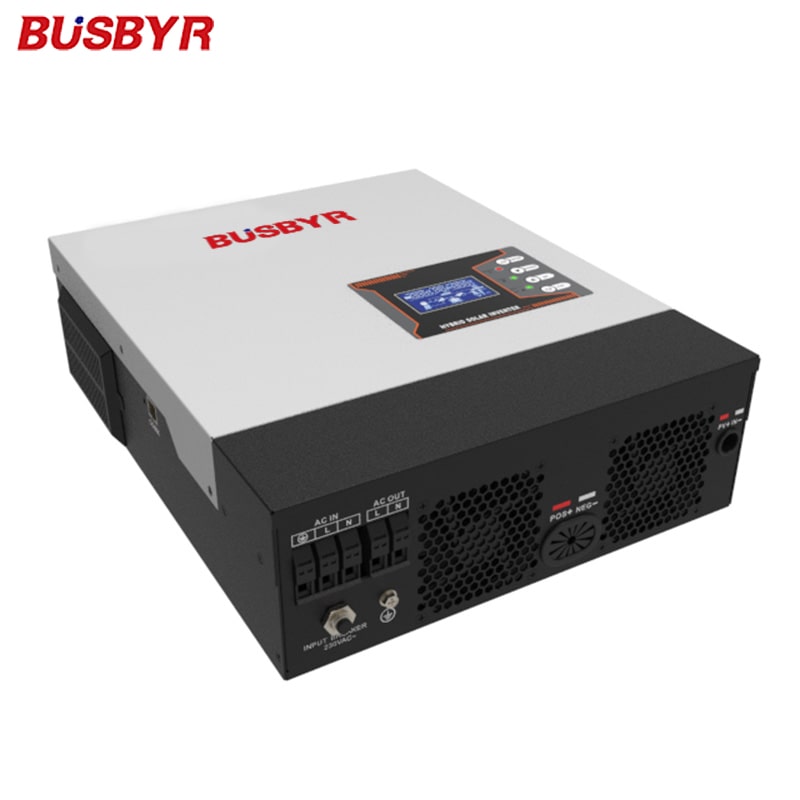

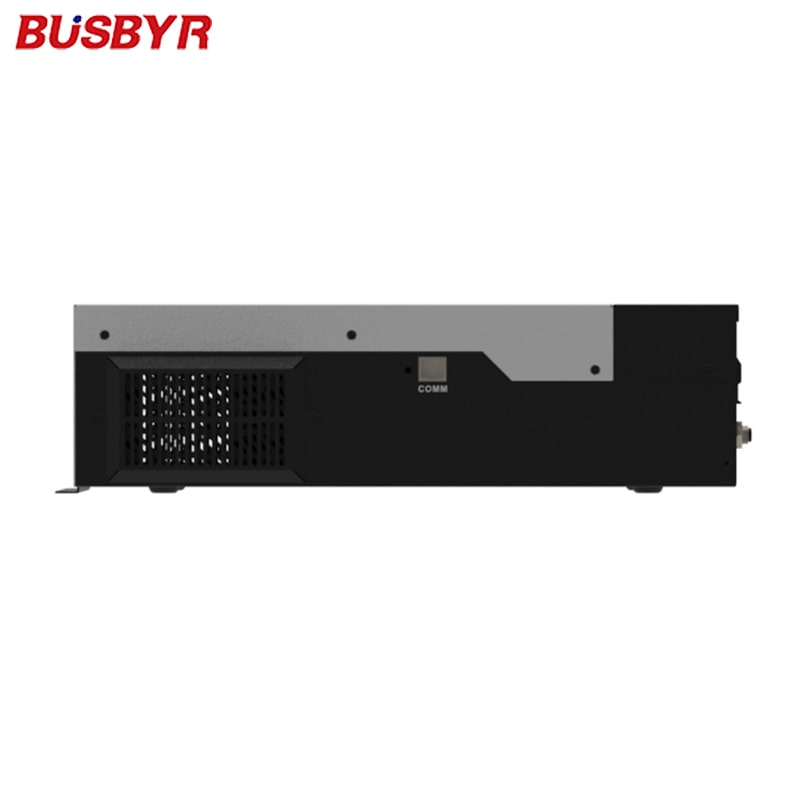

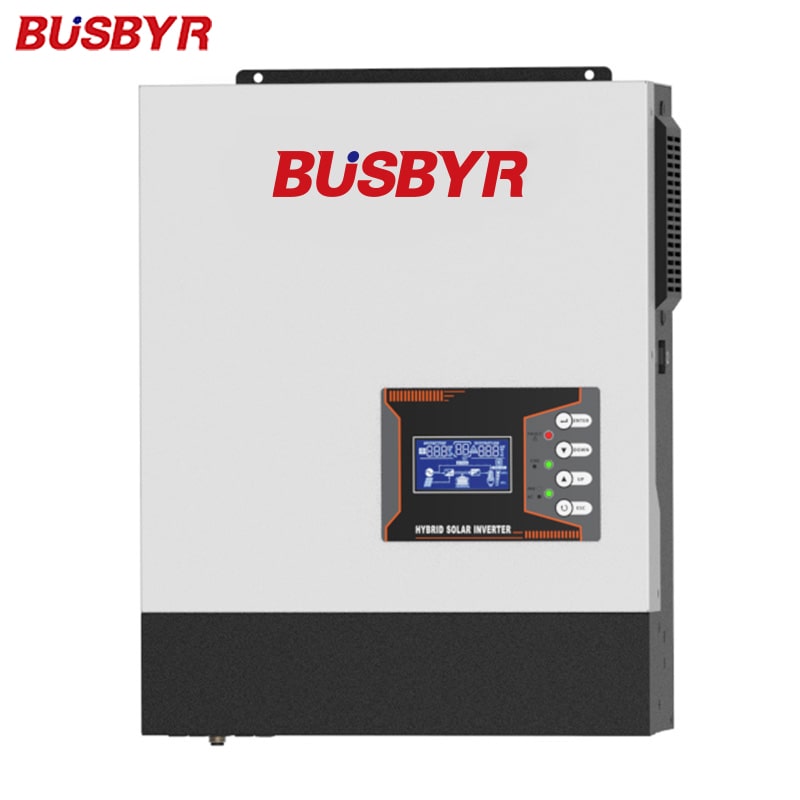

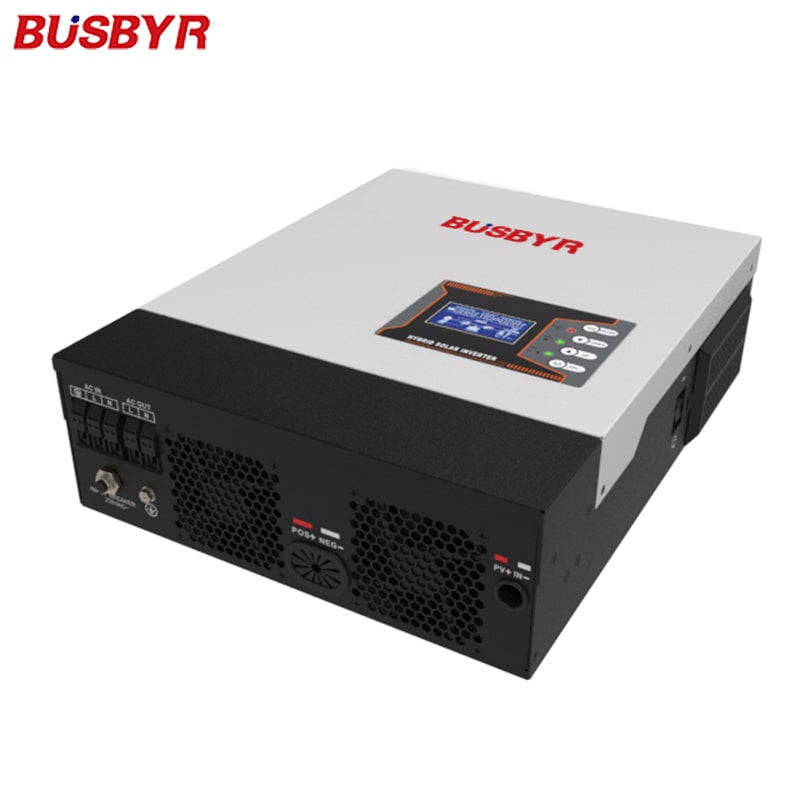

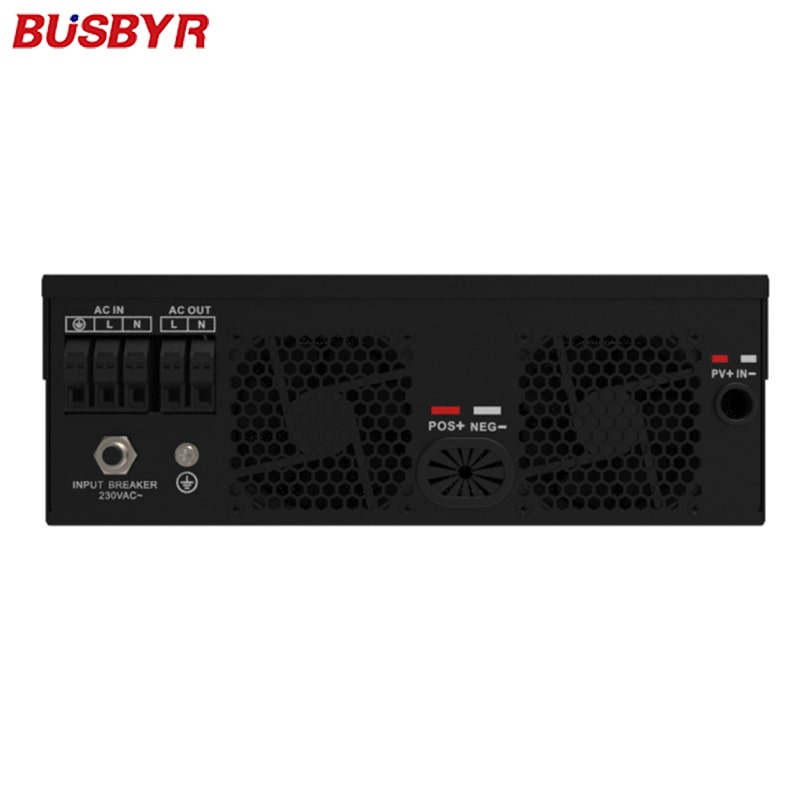

5KW off grid single inverter for home
BS1 Series (1.5/2/3/5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for App
●Built-in 80A MPPT solar charger
●With wide PV input range: 120VDC-450VDC
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Compatible with lithium battery
●Solar energy is provided directly to the load first
Description
This 5KW off grid single inverter for home is the pure sine wave solar inverter. The inverter BS1 series power coverage is 1.5kW to 5.2kW, and it can be installed and used as long as there is sunlight. Because it is not limited by regions, it is widely used in remote power -free regions, isolated islands, fishing boats, outdoor breeding bases, etc.
Specification
Model | BS1-White-3200-24 | BS1-White-3200-48 |
RATED POWER | 3200VA/3200W | 3200VA/3200W |
AC Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
AC OUTPUT | ||
AC Voltage Regulation | 230VAC±5% | |
Surge Power | 6400VA | 6400VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms(For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum AC Charge Current | 80A | 60A |
SOLAR CHARGER | ||
Maximum PV Array Power | 4000W | 4000W |
MPPT Range Operating Voltage | 120~450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 80A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 384*330*105 | |
Cartoon Dimension,D X W XH(mm) | 480*378*205 | |
Net Weight(kgs) | 7.95 | 7.95 |
Gross Weight(kgs) | 8.4 | 8.4 |
Communication interface | RS232/GPRS/WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5%to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10~50℃ | |
