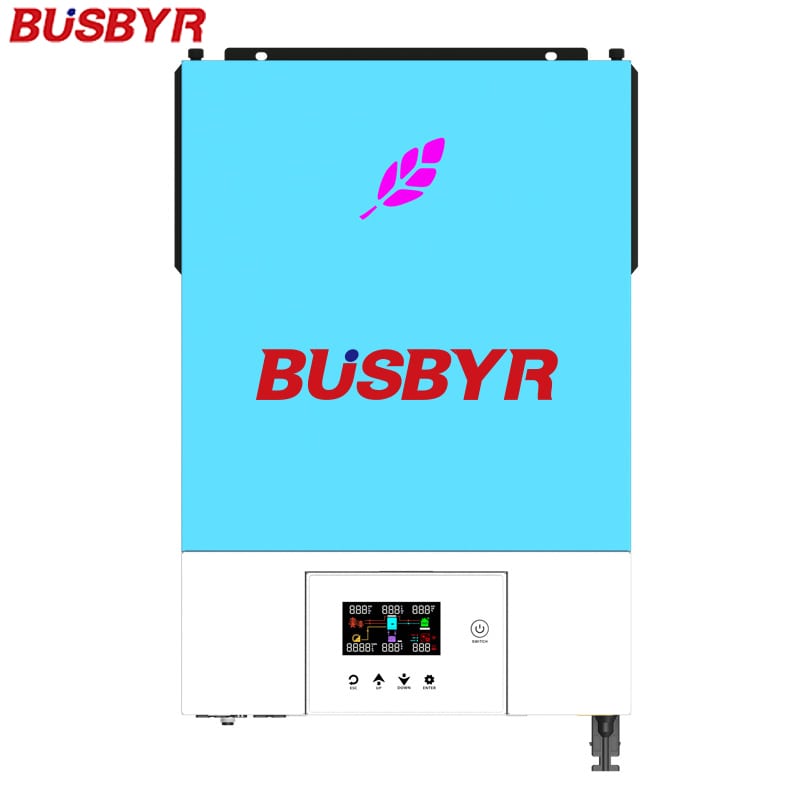

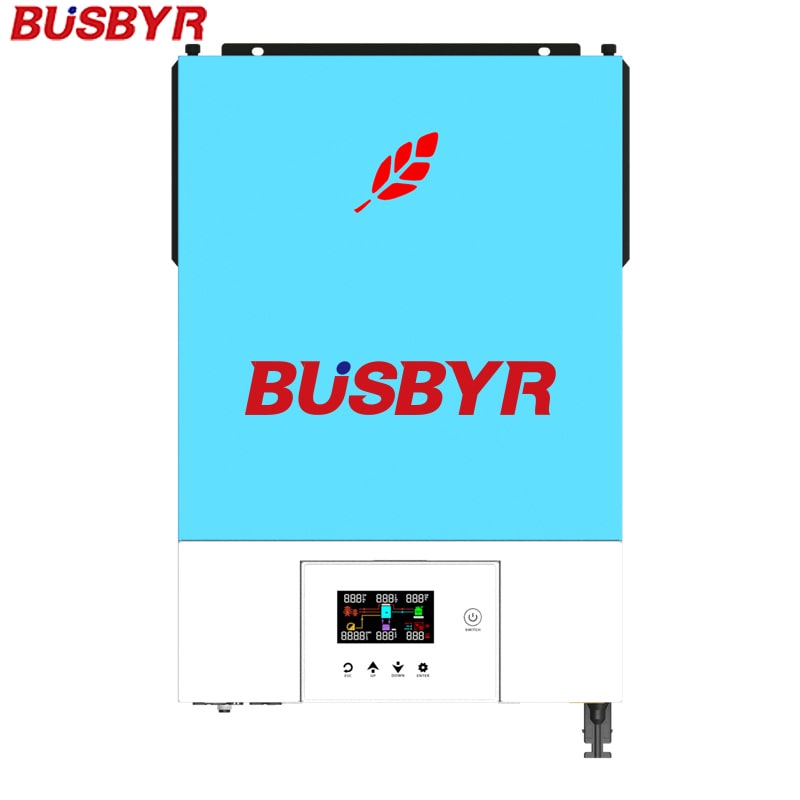

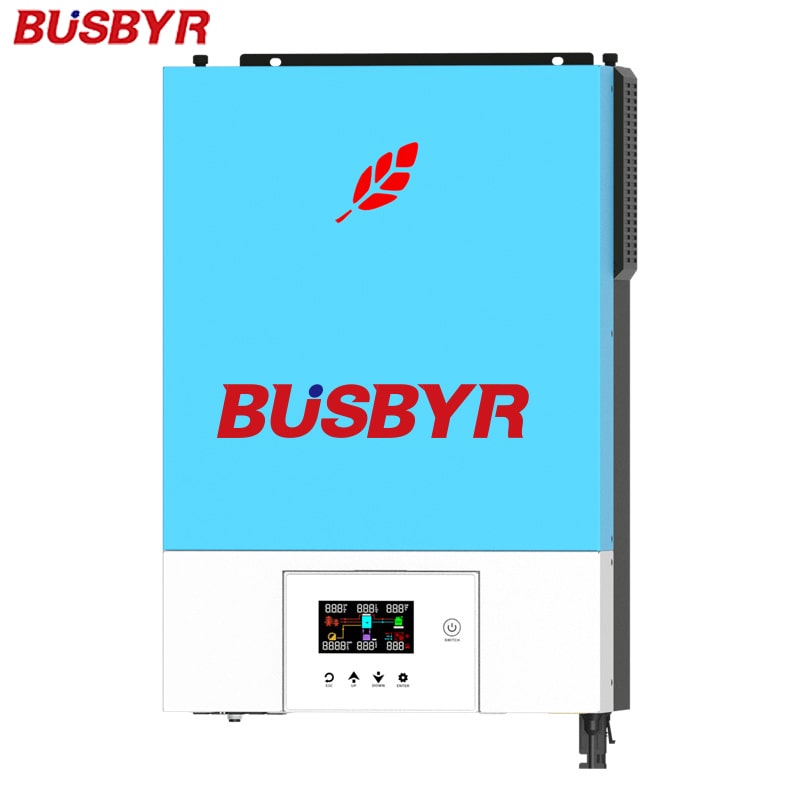

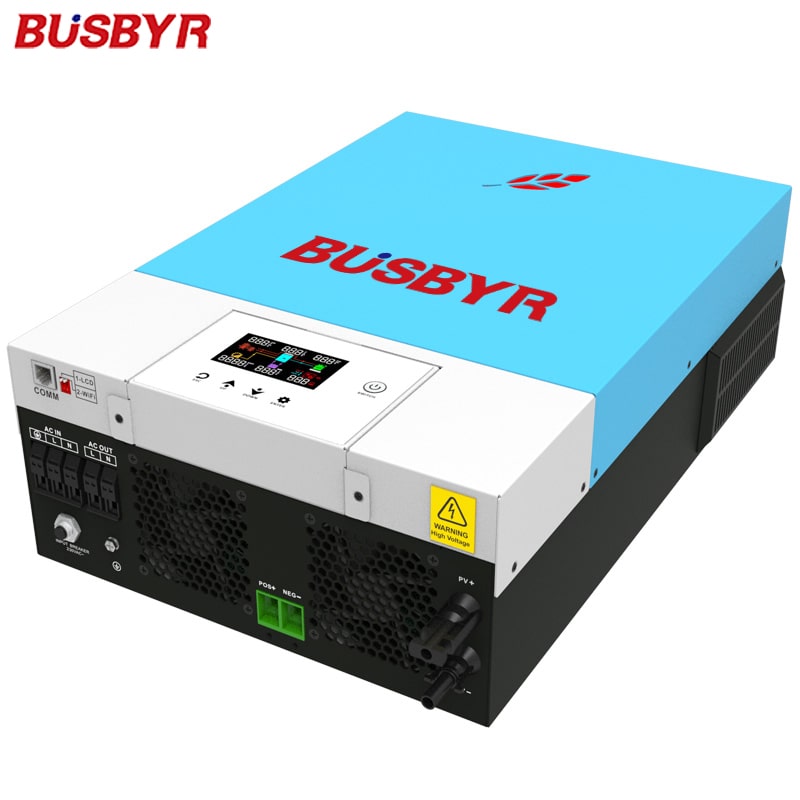

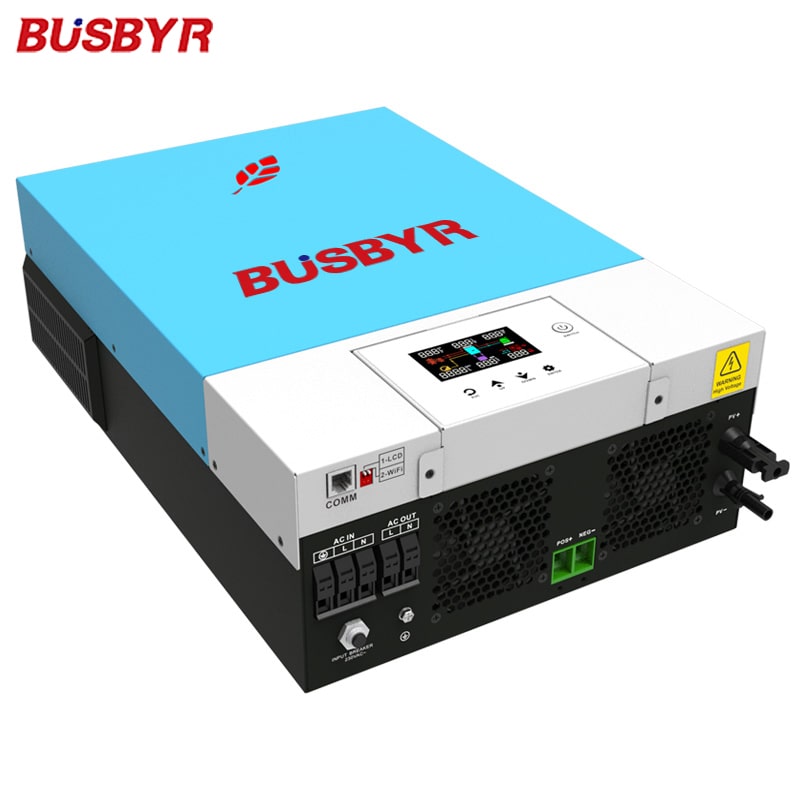

On/Off Grid Hybrid Solar Inverter 3.6KW
BS4 Pro Series (3.6/4.2/6.2KW)Key Features
●Pure sine wave solar inverter(on/off Grid)
●PF=1.0
●Support Wifi&GPRS for App
●Inverter can running without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 120A MPPT(for 3.6KW/6.2KW)/140A(for 4.2KW)
●Solar Charging Current: Max 6200w(for3.6kw/4.2kw),max 6500w (for 6.2kw)
●Wide PV input voltage range(90~500VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life

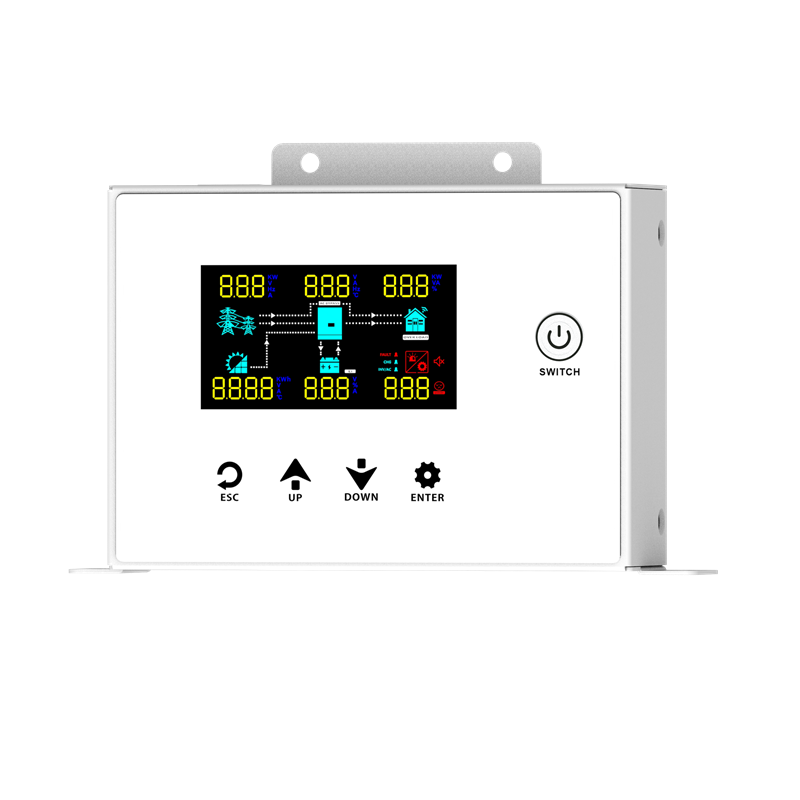

●Built Remove LCD Display and Key
●Overload/Over temperature/short circuit protection
Description
On/Off Grid Hybrid Solar Inverter 3.6KW inverter is a string inverter specially developed by Busbyr Solar for residential users. It has the characteristics of small size, light weight, easy installation and maintenance, and excellent cost performance. This hybrid solar inverter can be used without batteries, has a mobile, flexible and intelligent operation interface, and supports RS232/WIFI/Remove LCD/GPRS sockets, and is widely applicable to various household appliances.
Specification
MODEL | BS4-PRO-3.6KW | BS4-PRO-4.2KW | BS4-PRO-6.2KW |
Phase | 1-phase | ||
Maximum PV Input Power | 6200W | 6200W | 6500W |
Rated Output Power | 3600W | 4200W | 6200W |
Maximum Solar Charging Current | 120A | 140A | 120A |
GRID-TIE OPERATION | |||
PV Input(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
Maximum DC Voltage | 90-450VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/23A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195.5-253VAC | ||
Nominal Output Current | 15.7A | 18.2A | 27.0A |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49~51±1Hz | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(Sloar to AC) | 98% | ||
OFF-GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280 VAC or170-280VAC | ||
Maximum AC Input Current | 30A | 30A | 40A |
Nominal operating frequency | 50/60Hz | ||
Surge power | 7200W | 8400W | 12400W |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY&CHARGER | |||
Nominal DC Voltage | 24VDC | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 140A | 120A |
Maximum AC Charging Current | 100A | ||
GENERAL | |||
PHYSICAL | |||
Dimension,D X W X H(mm) | 420*310*140 | ||
Cartoon Dimension,D X W XH(mm) | 550*400*230 | ||
Net Weight(kgs) | 10 | 10.5 | 11 |
Gross Weight(kgs) | 11 | 11.5 | 12 |
INTERFACE | |||
Communication Port | RS232/WIFI/Remove LCD/GPRS | ||
ENVIRONMENT | |||
Operating Temperature | -10-50℃ | ||
