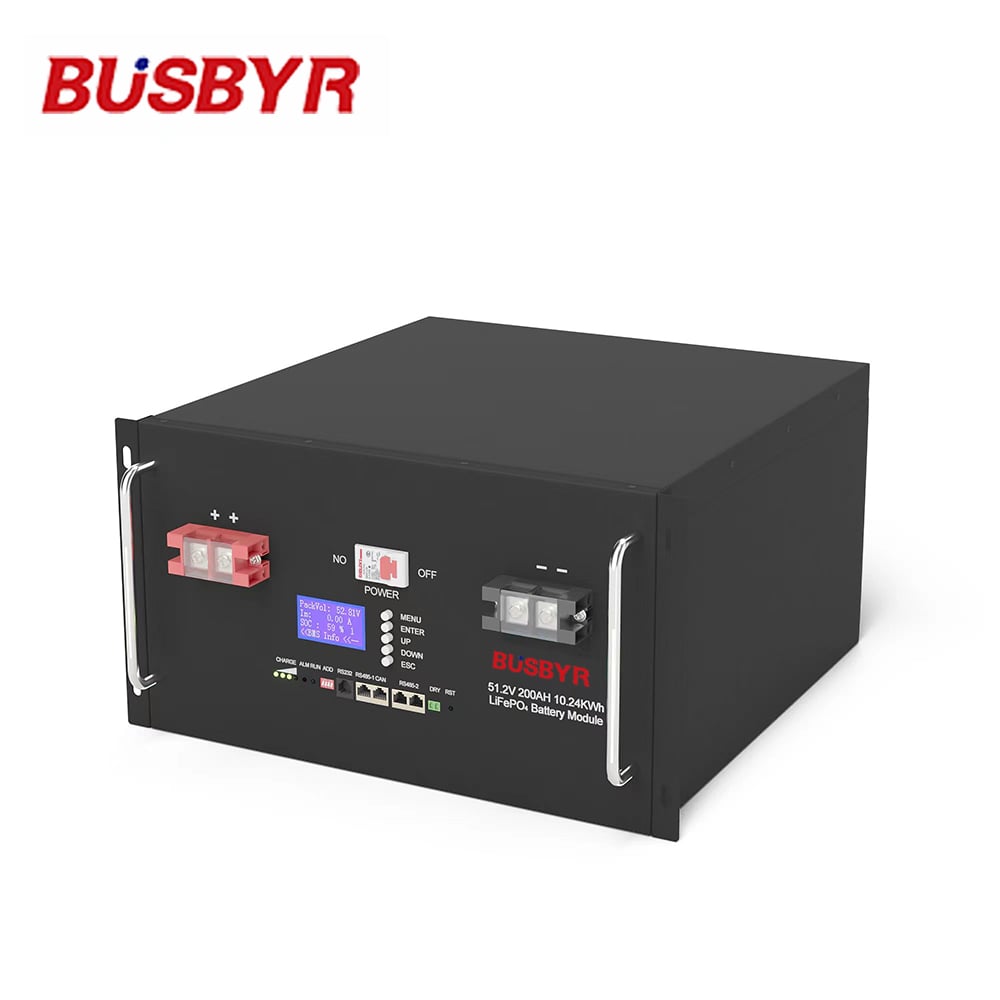

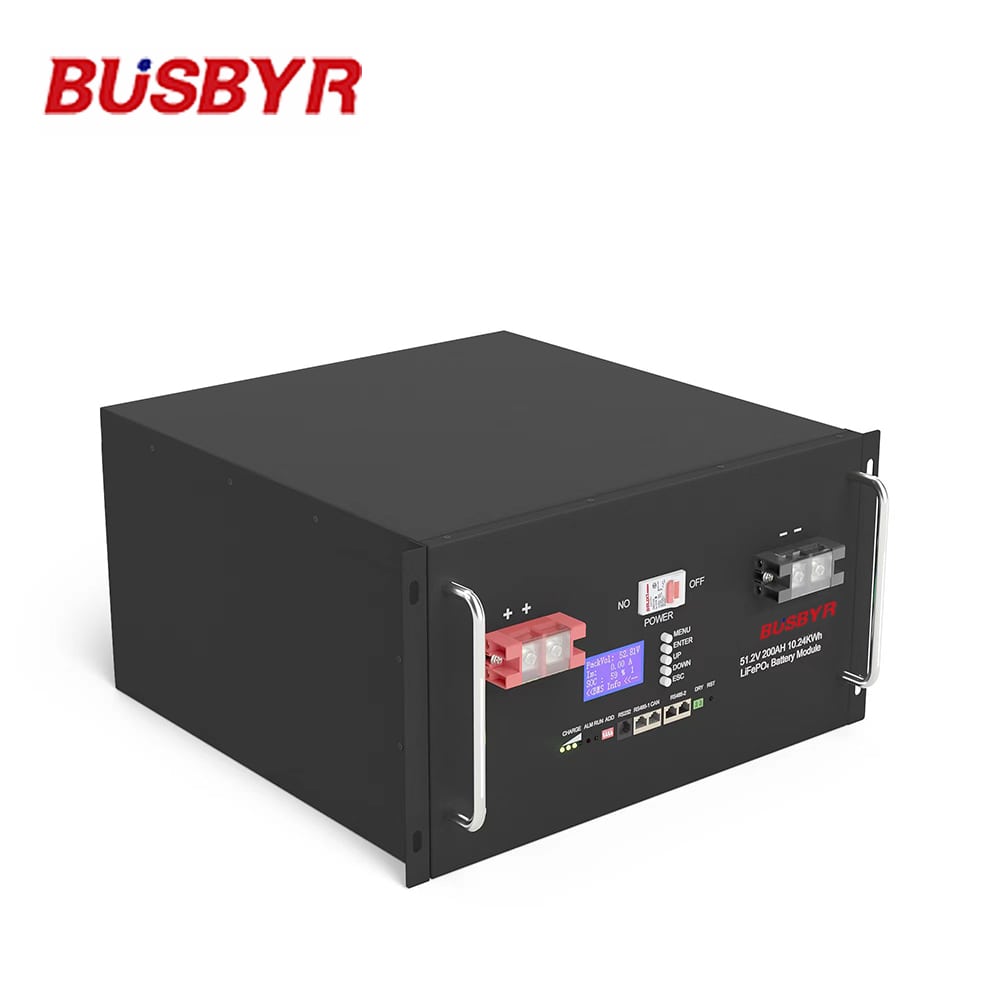

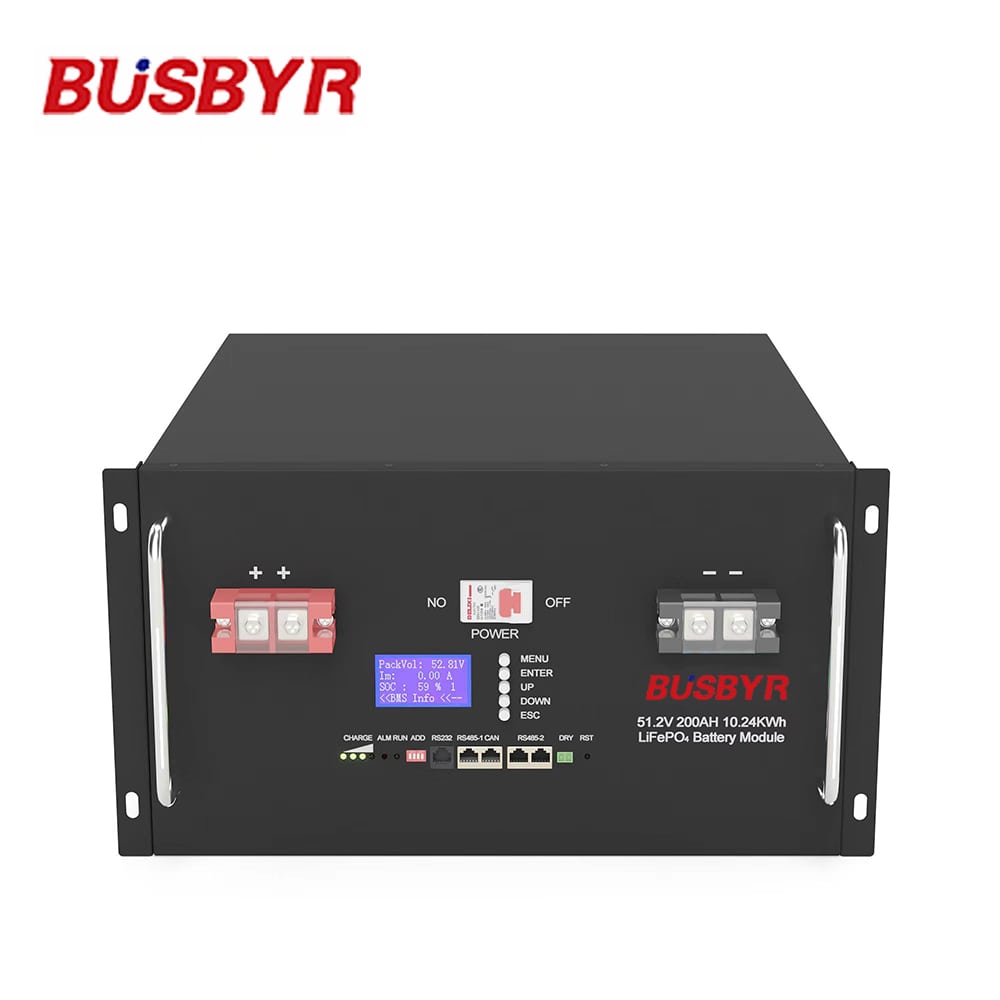

Customized 10KWh 48V 200Ah BMS Lifepo4 Solar Energy Storage System Server Rack Lithium Battery
Rack-Mounted Lithium BatteryKey Features
●Safety in use
●Low self discharge rate
●Good high temperature performance
●High Cycle times and long service life
●High energy density and conversion efficiency
●Environmental friendly, without any heavy metals
●Easy installation, BMS Modbus protocol can communicate with the inverter
Description

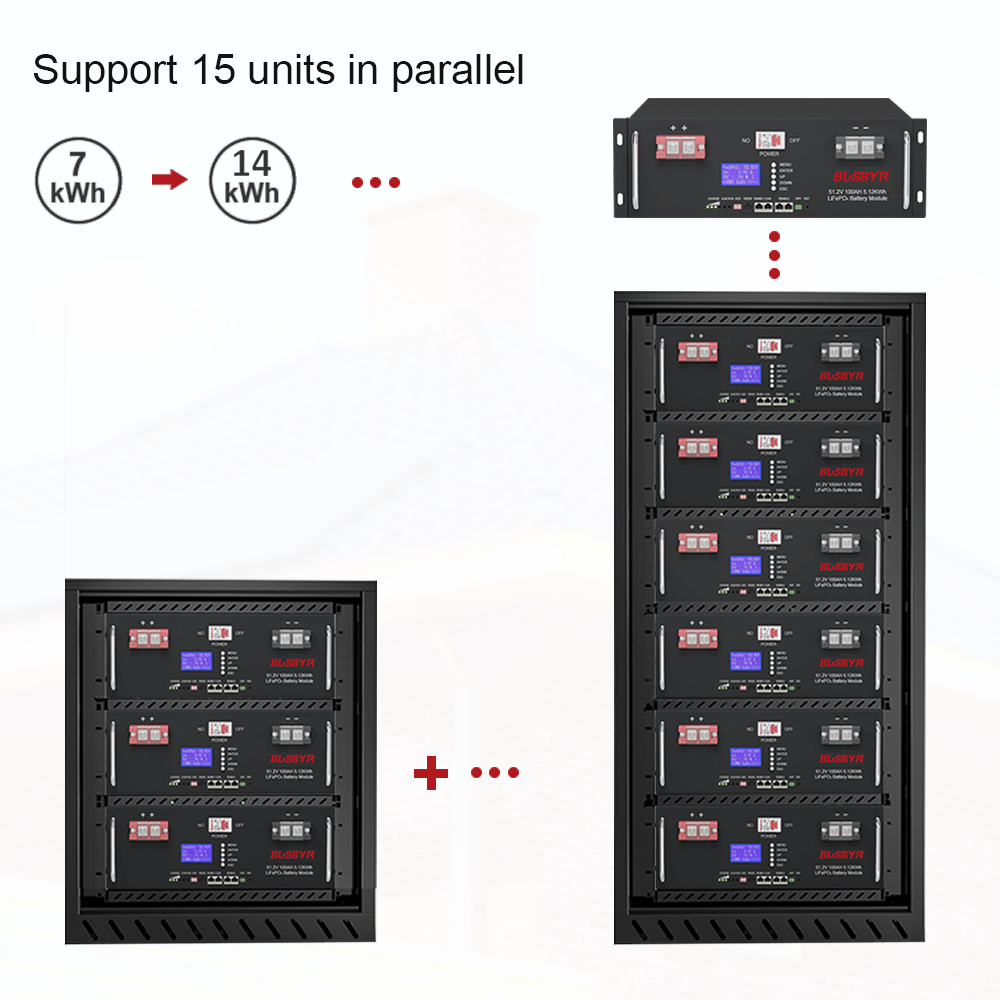

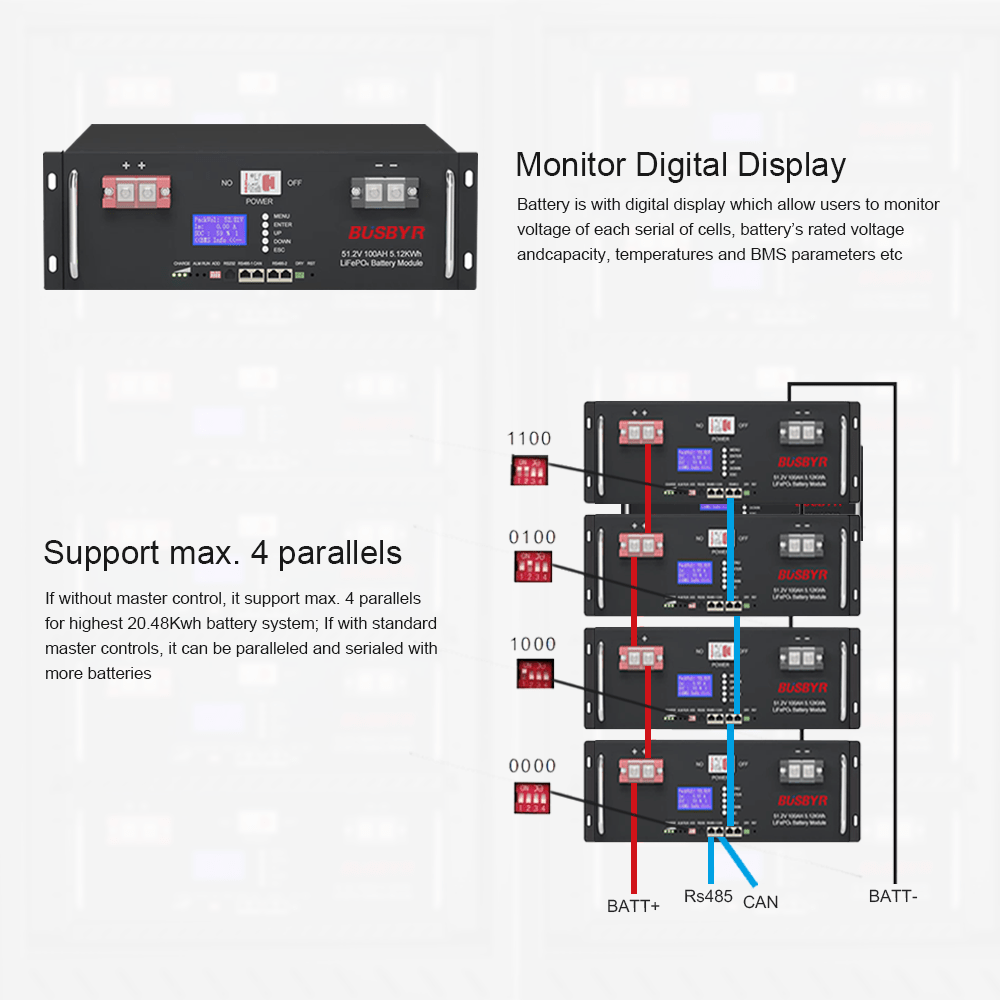

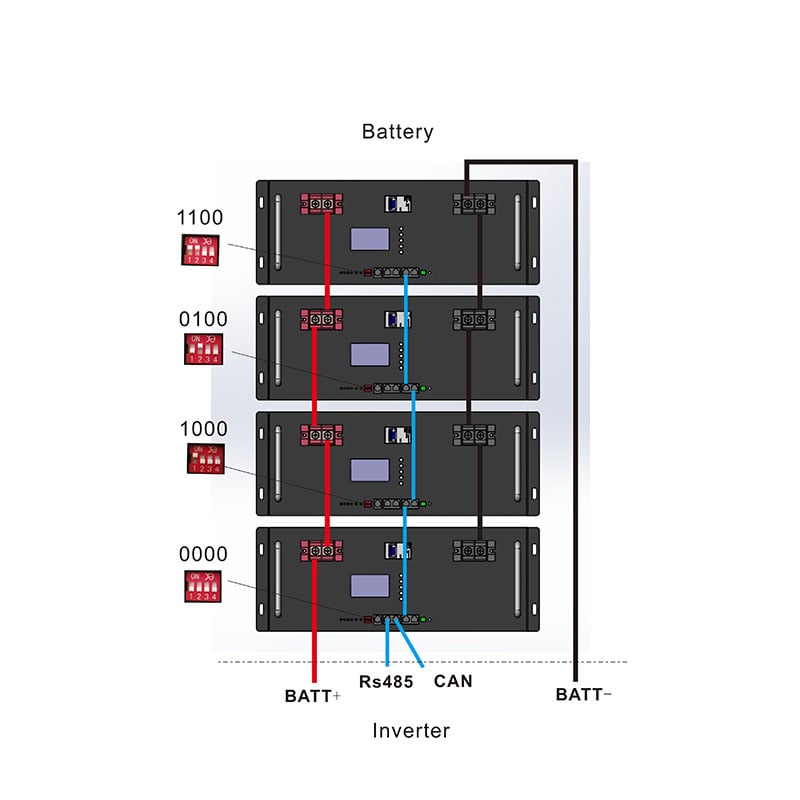

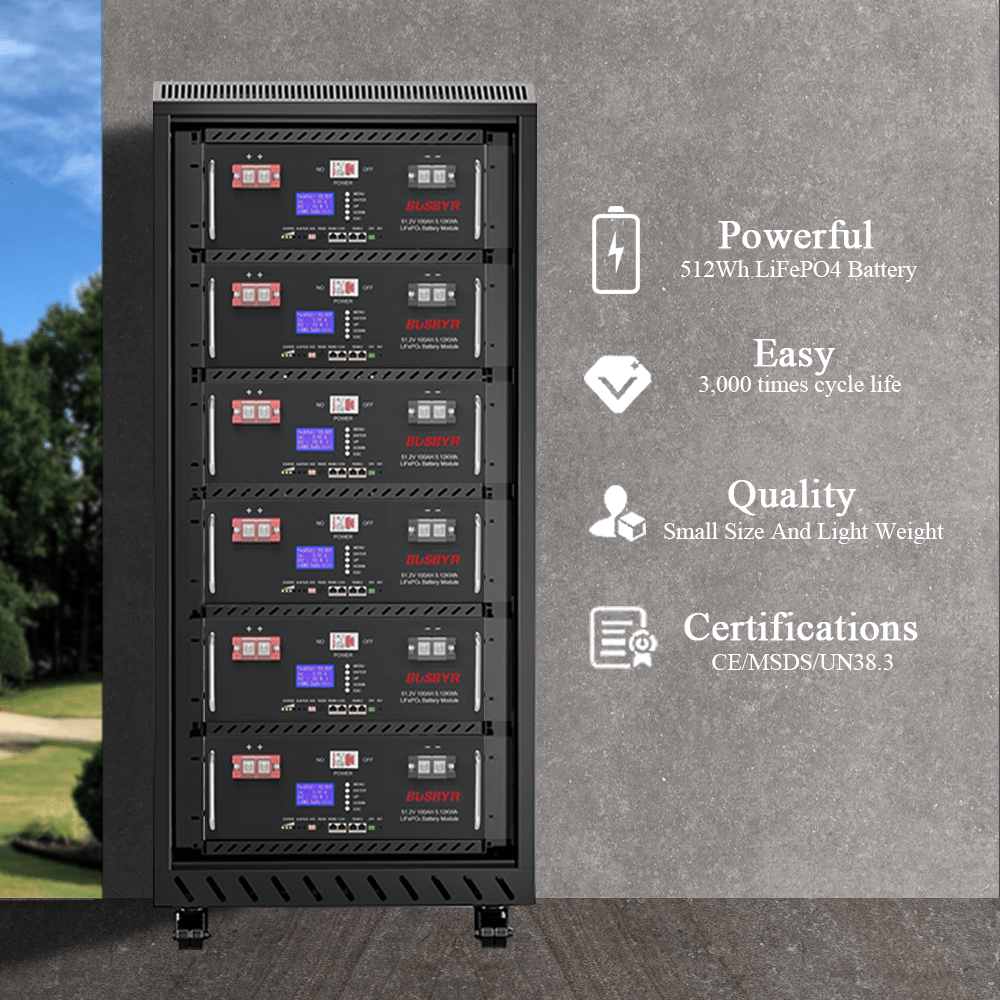

This battery is a new type of energy storage product, which can be used to provide reliable power supply for various equipment and systems. It is especially suitable for applications with large power, limited installation space, limited bearing capacity and long life. Battery built-in BMS -battery management system, battery voltage, current, temperature and other information management and monitoring. In addition, the battery pack can balance the charge and discharge to prolong the cycle life. Multiple battery packs can be parallel to expand capacity and power, parallel to expand capacity and longer power support time requirements.
Battery Parameter
Model Number | LFP48-501 | LFP48-502 | LFP48-75 | LFP48-100 | LFP48-150 | LFP48-200 |
Norminal Battery Energy | 2.40KWH | 2.56KWH | 3.84KWH | 5.12KWH | 7.68KWH | 10.24KWH |
Norminal Capacity | 50Ah | 50Ah | 75Ah | 100Ah | 150Ah | 200Ah |
Norminal Voltage | 48V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |

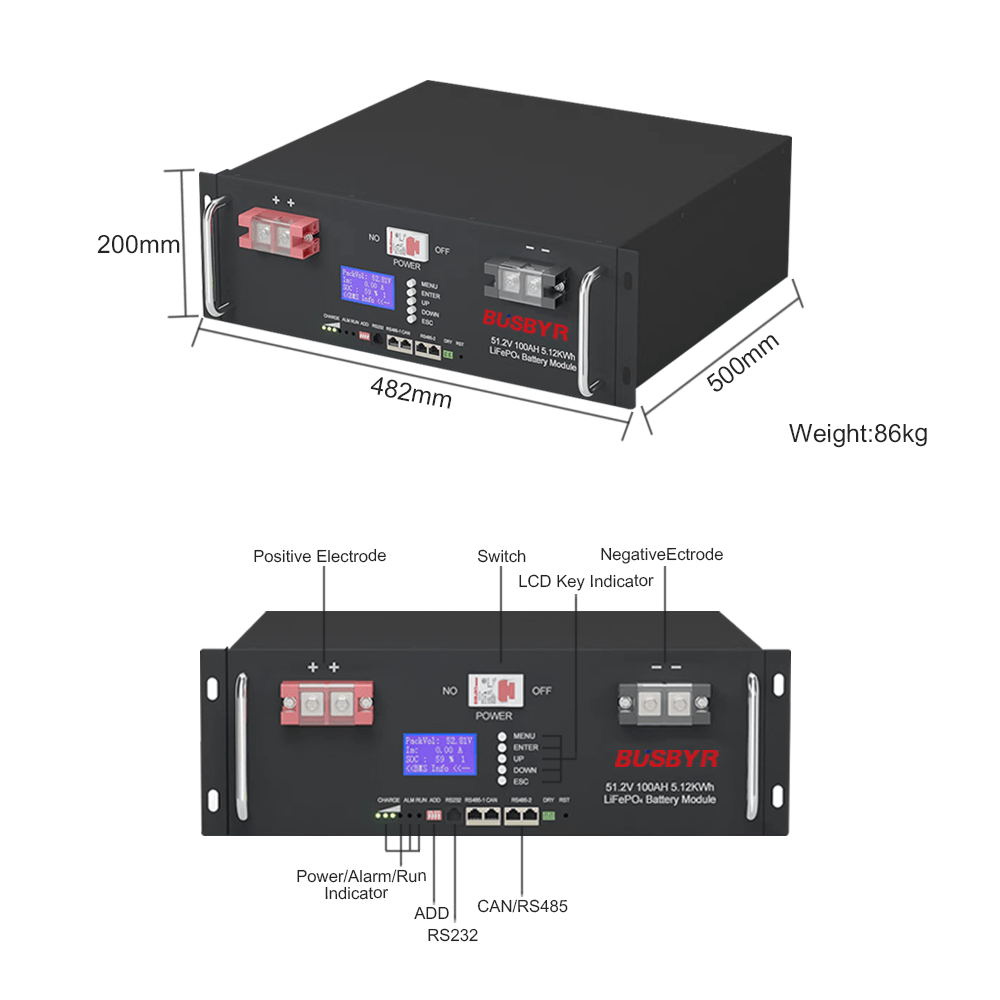

Dimensions (mm) | 2U 482x410x89 | 3U 482x350x132 | 3U 482x350x132 | 4U 482x400x177 | 5U 482x430x222 | 6U 482x500x280 |
Internal Resistance | ≤30mΩ | |||||
Cycle Life | >6000 | |||||
Months Self Discharge | <3% | |||||
Charge Data | ||||||
DC Normal Charge Voltage | 58.4±1Vdc | |||||
Charge Mode | 0.2C to 58.4V, then 58.4V charge current to 0.02C (CC/CV) | |||||
Recommended Charger Current | <20A | |||||
Allowed Max.Charge Current | 25A | 50A | ||||
Charge Cut-off Voltage | 54.7±1Vdc | 58.4±1Vdc | ||||
Discharge Data | ||||||
Continuous Discharge Current | 25A | 50A | ||||
Allowed Max. discharge current | 50A | 100A | ||||
Discharge cut-off voltage | 38V | 40V | ||||
Working Condition | ||||||
Charge Temperature | 0°C to 45°C (32°F to 113°F) | |||||
Discharge Temperature | -20° C to 60°C(4°F to140°F) | |||||
Storage Temperature | 0°C to 40°C(32°F to 104°F) | |||||
Enclosure Protection Level | IP30 | |||||
Mechanical Data | ||||||
Cell&Capacity | 25AH&50AH | 25AH&75AH | 50AH&100AH | 50AH&150AH | 50AH&100AH | |
Case material | Iron Rack Mount Case | |||||
