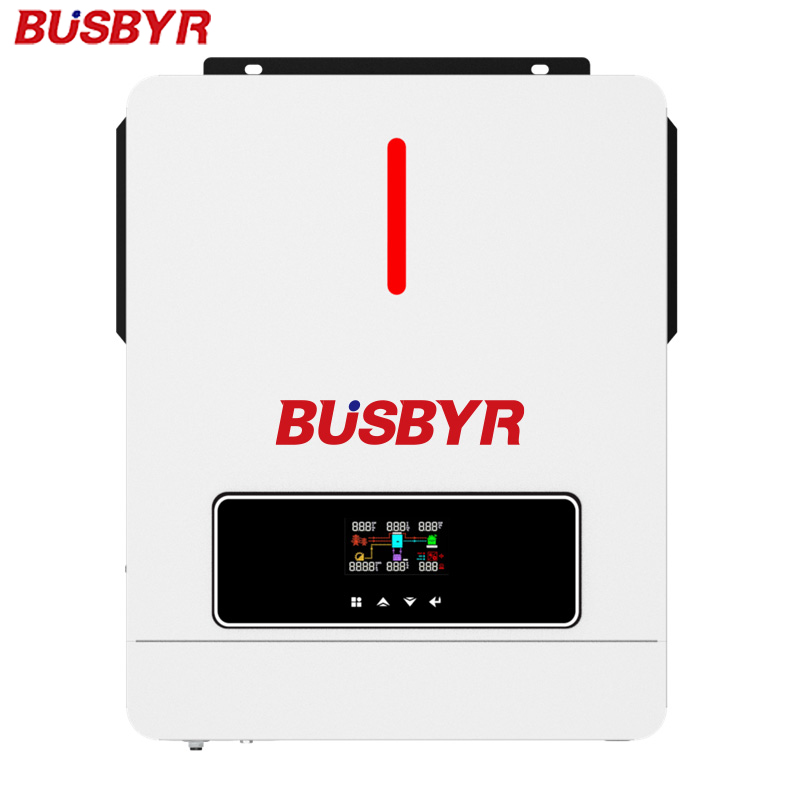

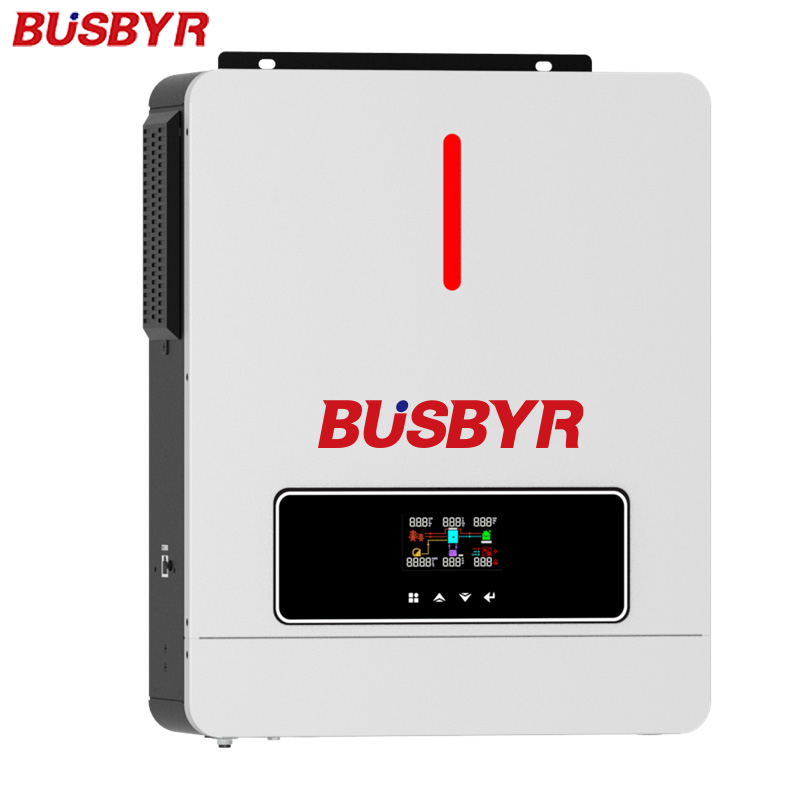

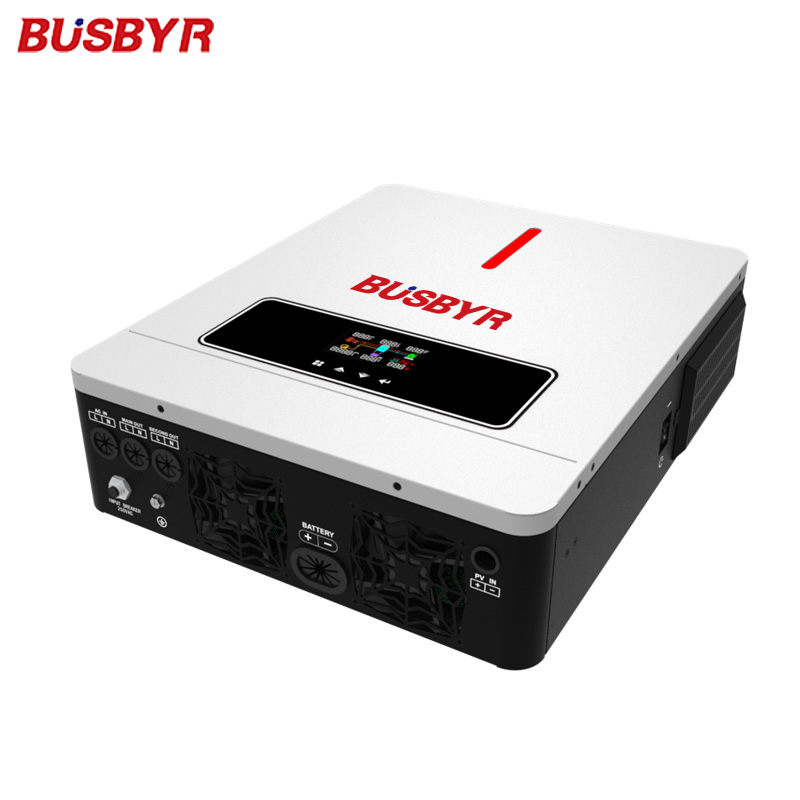

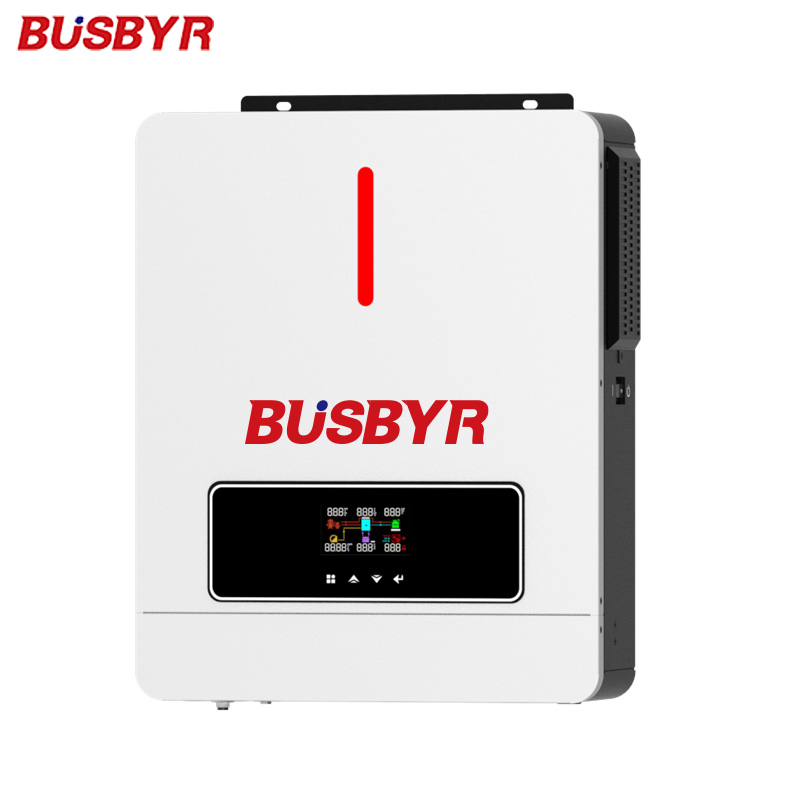

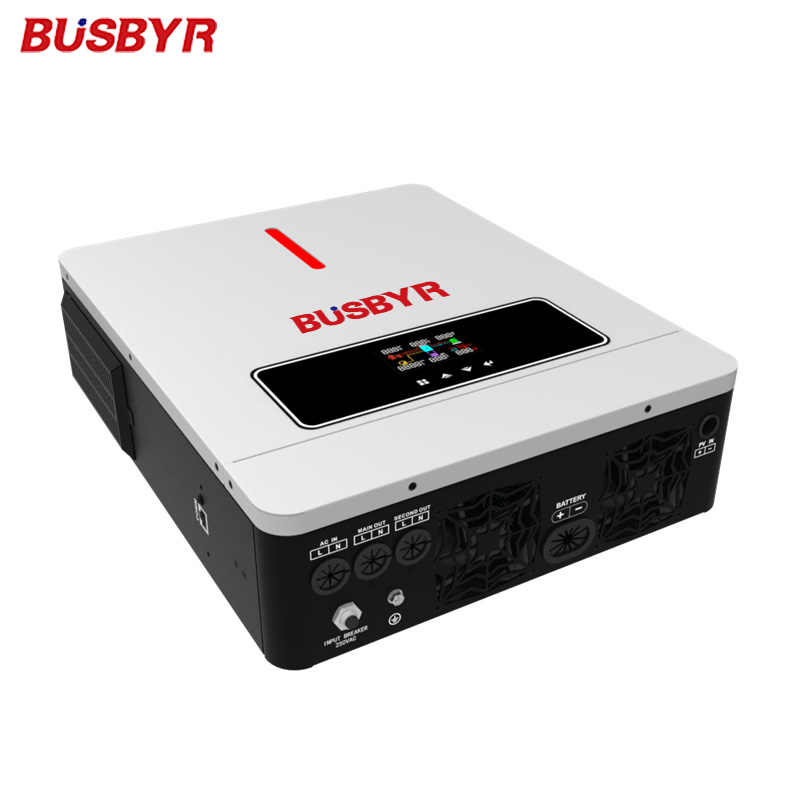

LV Series 120V 4200W 24VDC Pure Sine Wave Solar Inverter with Bulit-in 120A MPPT Hybrid Inverter
BS4-Eco-lv Series (3.6/5KW)●Pure sine wave solar inverter(on/off Grid)
●Output power factor 1.0
●WIFl&GPRS available for IOS and Android
●Inverter can run without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 120A MPPT Solar charge:max 4200W(for 3.6KW),
max 6000W(for 5KW)
●AC output voltage 120VAC
●High PV input voltage range(60~500VDC)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life

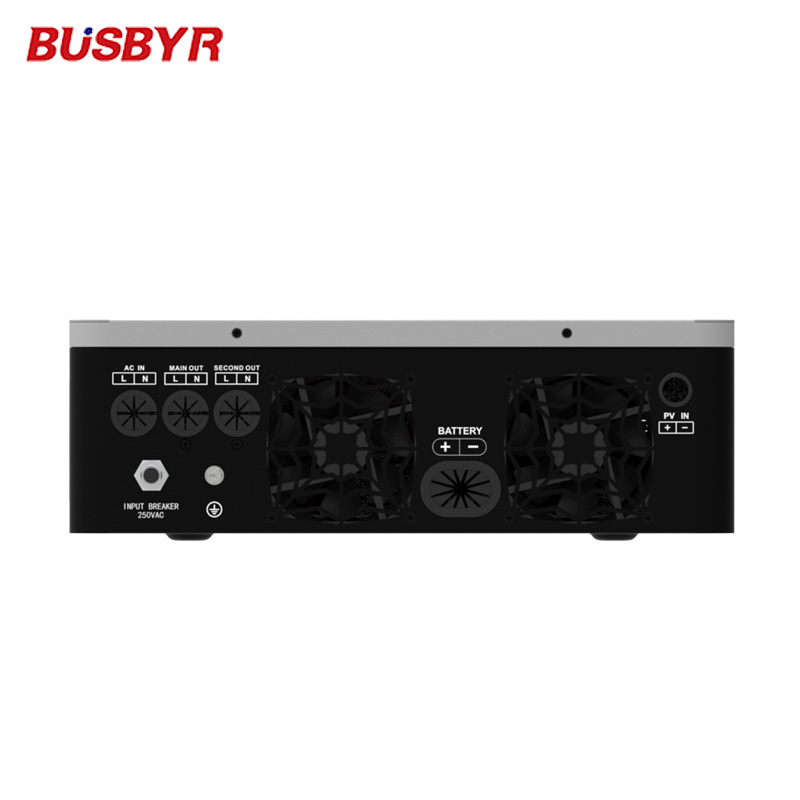

●Dual output
This 4.2KW pure sine wave solar inverter built-in 120A MPPT, rate output power is 3.6kw. PV input voltage range from 60VDC to 500VDC. Can be used in both grid-tie and off-grid pv systems. This string inverter is based on the concept of modularization. Each photovoltaic string (1-5kW) passes through an inverter, which has maximum power peak tracking at the DC end and is connected in parallel to the grid at the AC end. Many large PV plants use string inverters. Hybrid inverter, flexible and maneuverable. It is commonly used in places where there are many problems with the power grid, and places where island earthquakes occur frequently.
Specifications
MODEL | BS4-ECO-LV 3.6KW PLUS | BS4-ECO-LV-5KW PLUS |
Phase | 1-phase | |
Maximum PV Input Power | 4200W | 6000W |
Rated Output Power | 3600W(3000/3150/3300) | 5000W(4100/4300/4500) |
Maximum Solar Charging Current | 120A | 100A |
GRID-TIE OPERATION | ||
PV Input(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | |
Maximum DC Voltage | 60-450VDC | |
Number of MPPT Trackers/Maximum Input Current | 1/23A | 1/23A |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/110V settable) | |
Output Voltage Range | 60-150VAC | |
Nominal Output Current | 30A | 41.7A |
Power Factor | >0.99 | |
Feed-in Grid Frequency Range | 47~55±0.3HZ/57-65±0.3HZ | |
EFFICIENCY | ||
Maximum Conversion Efficiency(Sloar to AC) | 98% | |
TWO LOAD OUTPUT POWER(V2.0) | ||
Full Load | 3600W | 6200W |
Maximum Main Load | 3600W | 6200W |
Maximum Second Load(battery mode) | 1200W | 1667W |
Main Load Cut Off Voltage | 22VDC | 44VDC |
Main Load Return Voltage | 26VDC | 52VDC |
OFF-GRID OPERATION | ||
AC INPUT | ||
Rated Input Voltage | 110/120VAC | |
Input Voltage Range | 90-140VAC±2% | |
Maximum AC Input Current | 40A | 50A |
Nominal operating frequency | 47~55±0.3HZ/57~65±0.3HZ | |
Surge power | 7200W | 10000W |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 120VAC(100/105/110V settable) | |
Output Waveform | Pure sine wave | |
Efficiency(DC to AC) | 94% | |
BATTERY&CHARGER | ||
Nominal DC Voltage | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 120A |
Maximum AC Charging Current | 80A | |
GENERAL | ||
PHYSICAL | ||
Dimension,D W X H(mm) | 420*350*110 | |
Cartoon Dimension,D X W XH(mm) | 500*415*180 | |
Net Weight(kgs) | 8.8 | 9.5 |
Gross Weight(kgs) | 10.5 | 11.5 |
INTERFACE | ||
Communication Port | RS232/WIFI/GPRS/Lithium Battery | |
ENVIRONMENT | ||
Operating Temperature | -10-50℃ | |
