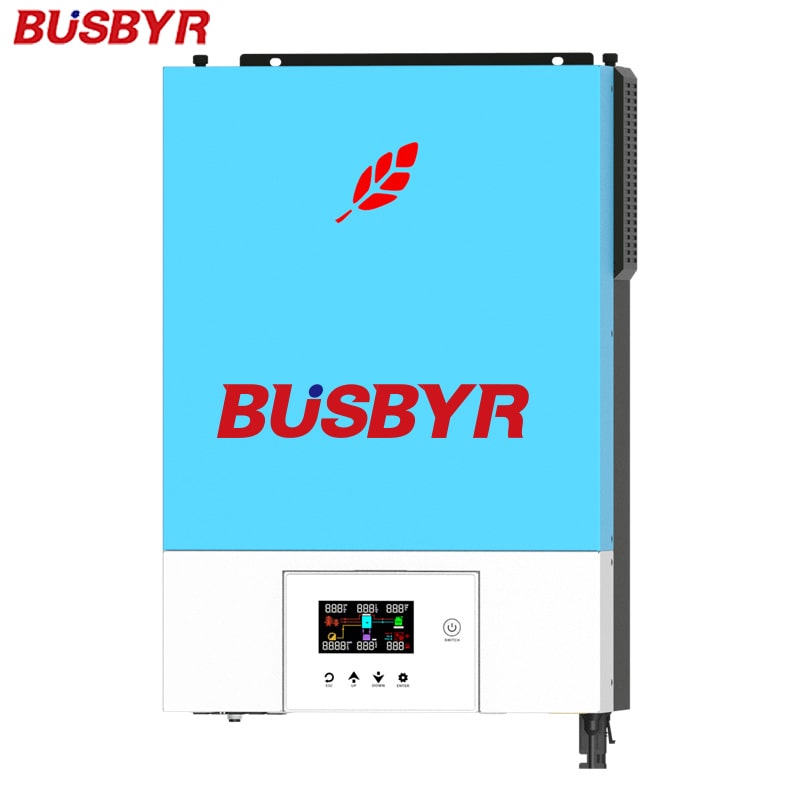

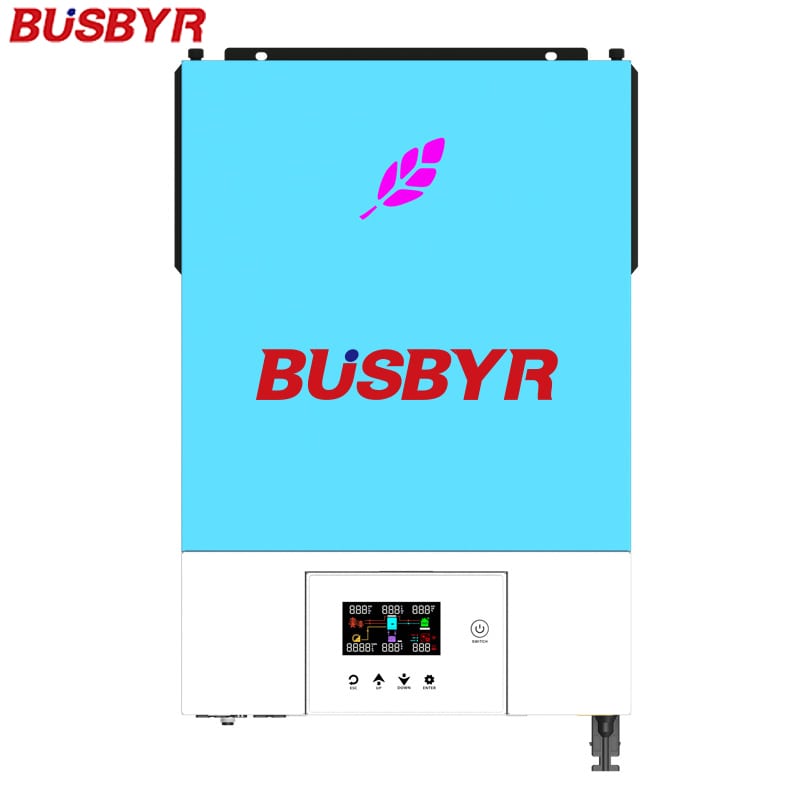

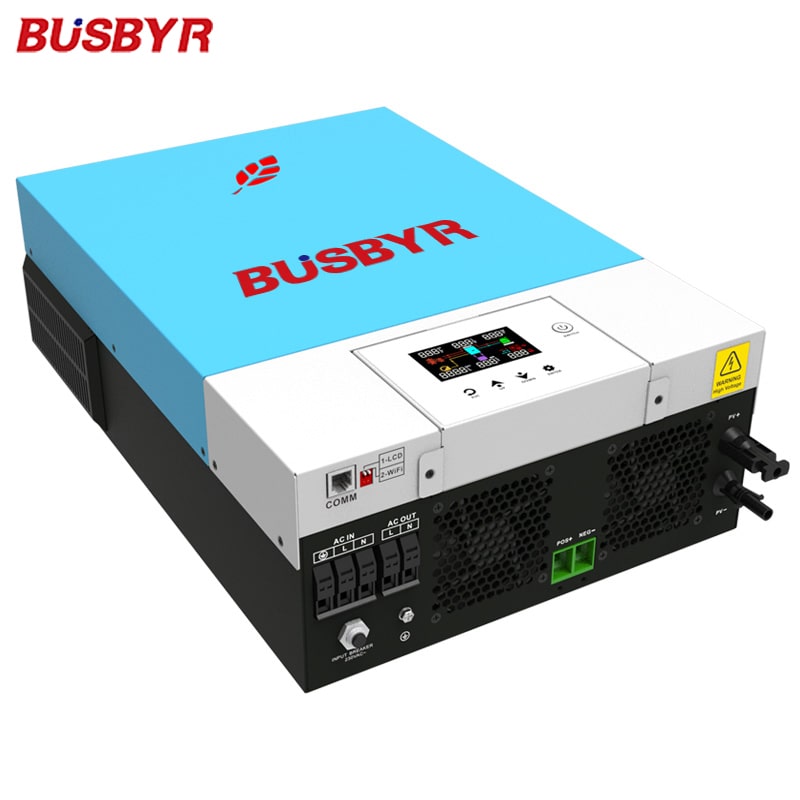

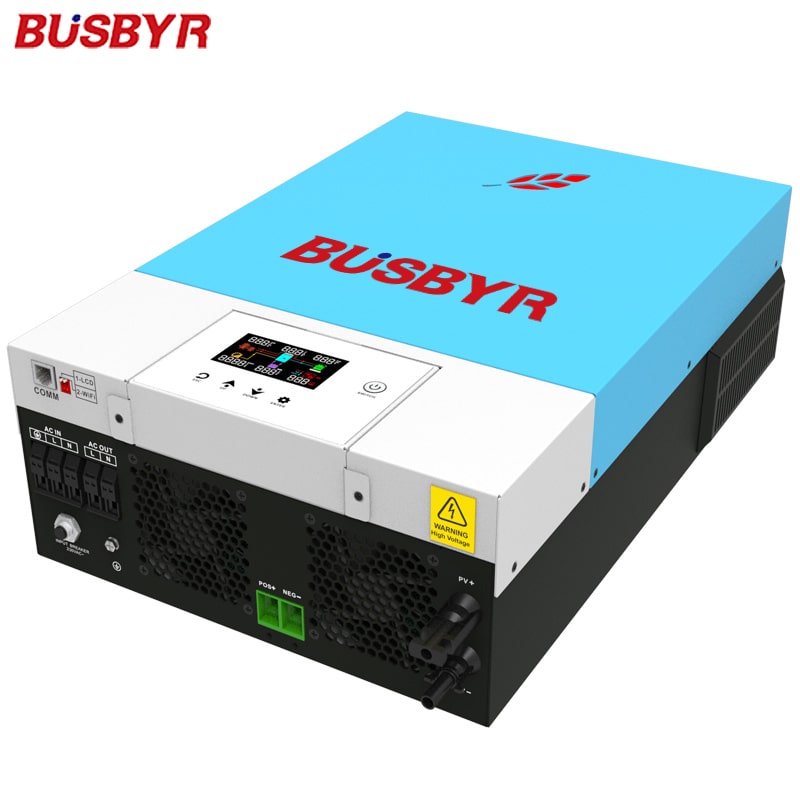

hybrid solar inverter 4.2KW
BS4 Pro Series (3.6/4.2/6.2KW)Key Features
●Pure sine wave solar inverter(on/off Grid)
●Output power factor 1.0
●Support WIFI&GPRS for App
●Inverter can running without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 120A MPPT(for 3.6KW/6.2KW)/140A(for 4.2KW)
●Solar Charging Current: Max 6200w(for3.6kw/4.2kw),max 6500w (for 6.2kw)
●High PV input voltage range(90~500VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Overload/Over temperature/short circuit protection
Description
Hybrid Solar Inverter 4.2KW is a pure sine wave inverter with configurable input voltage range, suitable for home appliances and PC, battery charging current can be set via LCD according to application. It also requires equipment to have a complete operating system, including generators or utilities and photovoltaic modules. The inverter can power a variety of appliances in a home or office environment, including motor-based appliances such as lights, fans, refrigerators, and air conditioners.
Specification
MODEL | BS4-PRO-3.6KW | BS4-PRO-4.2KW | BS4-PRO-6.2KW |
Phase | 1-phase | ||
Maximum PV Input Power | 6200W | 6200W | 6500W |
Rated Output Power | 3600W | 4200W | 6200W |
Maximum Solar Charging Current | 120A | 140A | 120A |
GRID-TIE OPERATION | |||
PV Input(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
Maximum DC Voltage | 90-450VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/23A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195.5-253VAC | ||
Nominal Output Current | 15.7A | 18.2A | 27.0A |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49~51±1Hz | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(Sloar to AC) | 98% | ||
OFF-GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280 VAC or170-280VAC | ||
Maximum AC Input Current | 30A | 30A | 40A |
Nominal operating frequency | 50/60Hz | ||
Surge power | 7200W | 8400W | 12400W |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY&CHARGER | |||
Nominal DC Voltage | 24VDC | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 140A | 120A |
Maximum AC Charging Current | 100A | ||
GENERAL | |||
PHYSICAL | |||
Dimension,D X W X H(mm) | 420*310*140 | ||
Cartoon Dimension,D X W XH(mm) | 550*400*230 | ||
Net Weight(kgs) | 10 | 10.5 | 11 |
Gross Weight(kgs) | 11 | 11.5 | 12 |
INTERFACE | |||
Communication Port | RS232/WIFI/Remove LCD/GPRS | ||
ENVIRONMENT | |||
Operating Temperature | -10-50℃ | ||
