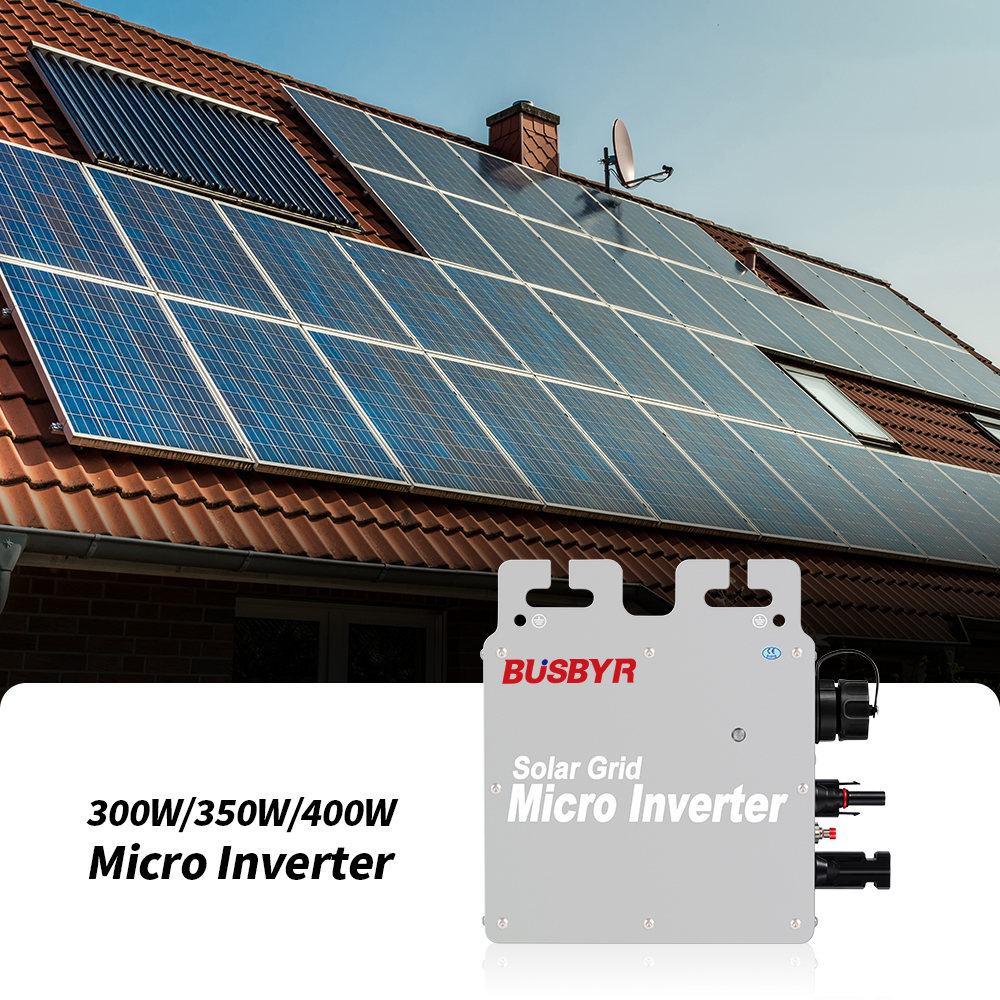

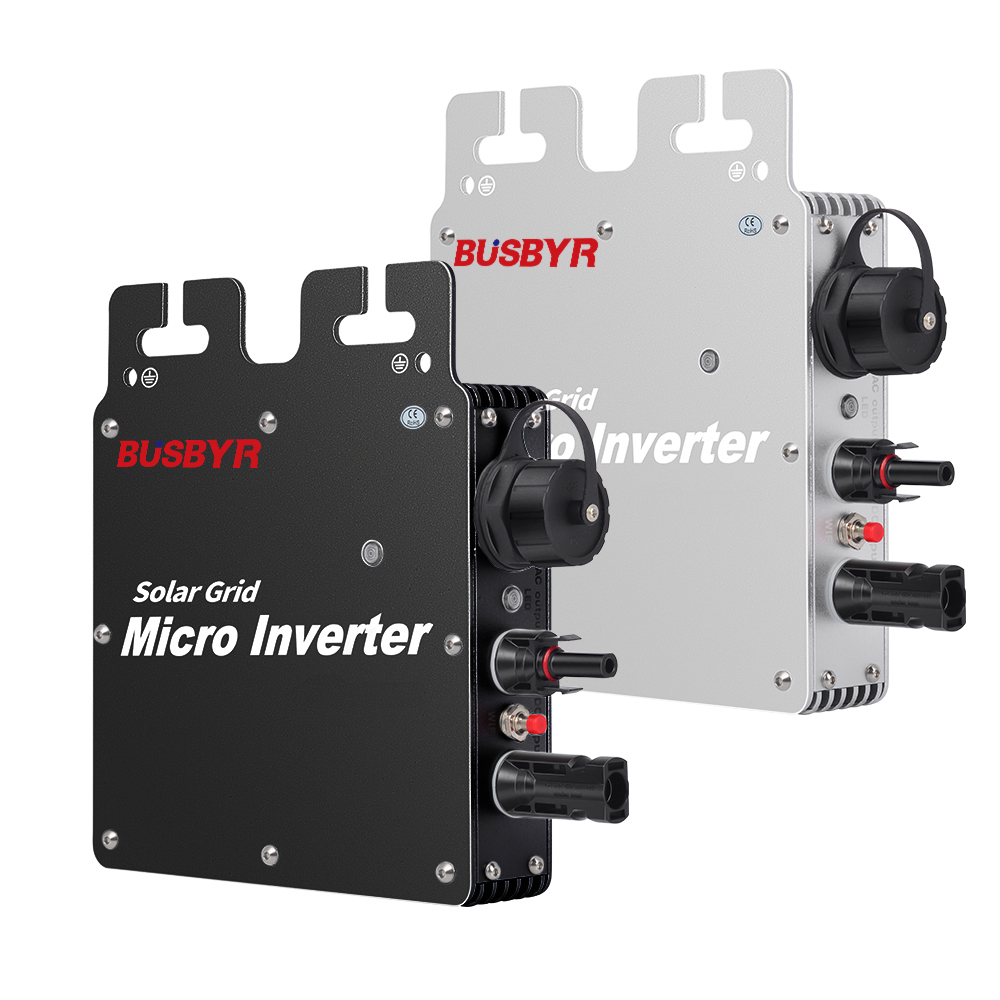

300W 350W 400W Balcony All In One Microinverter

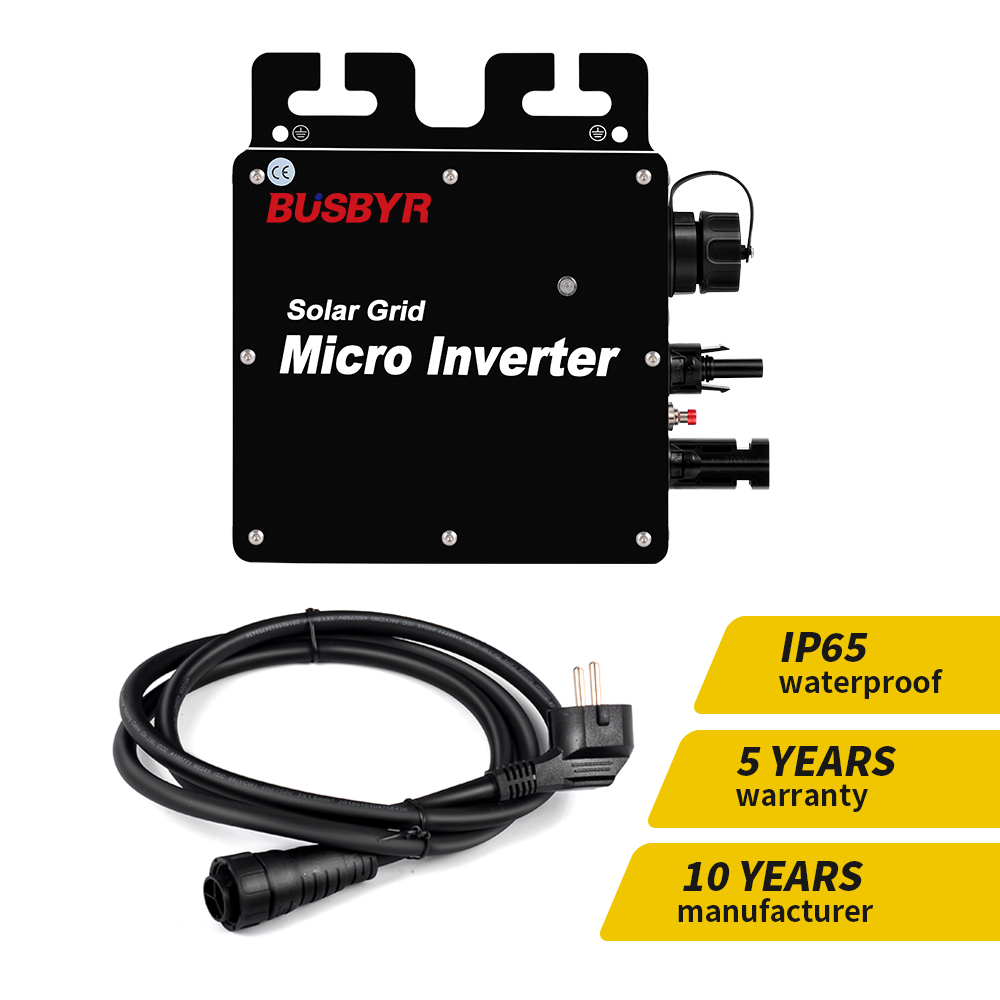

300w 350w 400w Microinverter> IP65 waterproof grade
> Back outlet hole to prevent electric shock
> Smartphone APP intelligence system
> Better heat dissipation
> 20% More Efficient Than Traditional Solar Inverter
> MPPT power automatic tracking

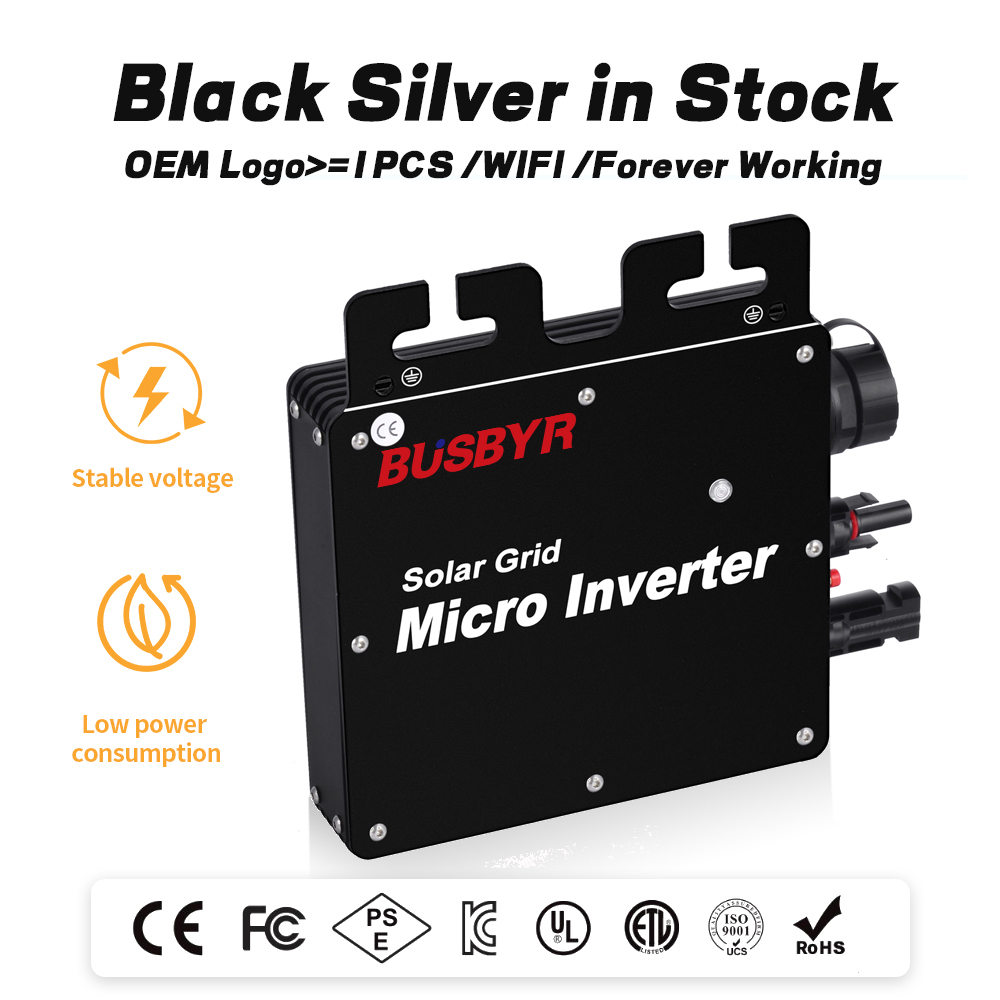

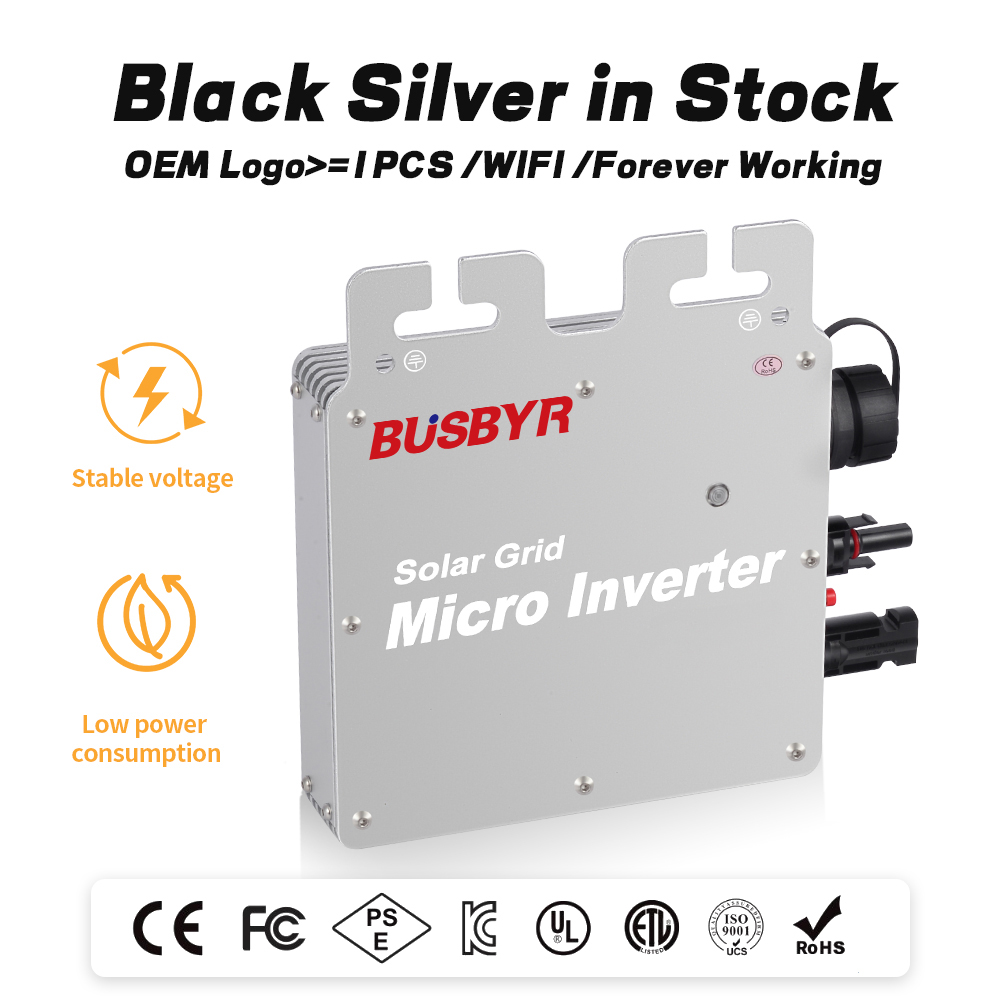

> CE, FC, PSE, UL, CE, RoHS, ISO9001 certificated
The balcony all-in-one grid-connected micro-inverter is an advanced solar power generation device that integrates multiple functions into one. Not only can realize grid-connected power generation, but also has remote monitoring function, which is convenient for users to monitor power generation status in real time. At the same time, the micro-inverter also supports easy expansion, and can be flexibly expanded according to needs to meet the user's demand for power generation energy. In addition, the inverter also has a shelf life of up to 5 years, effectively ensuring users to enjoy high-quality power generation experience.
There are 300w/400w/600w/700w/800w/1200w/1400w/1600w/2000w available for Busbyr all-in-one grid-connected micro-inverter. A variety of wattages meet most domestic and commercial needs. Microinverters will become an important part of photovoltaic systems for future green energy development.
- High efficiency: MPPT engine is used to achieve the maximum efficiency of energy conversion
- Intelligent: Equipped with intelligent wifi module, which can realize remote monitoring and control
- Multiple security protections: with multiple security protection functions to ensure safety during use
- Simple installation: easy and convenient installation, suitable for various scenarios
- Excellent reliability: After rigorous testing and verification, it has good performance and reliability
Model | 300W | 350W | 400W | |
Input(DC) | Recommend solar panel input power (W) | 200-300W | 250-350W | 275-400W |
Number of DC input connections (groups) | MC4*1 | |||
Maximum DC input voltage | 52Vdc | |||
Operating voltage range | 20Vdc-50Vdc | |||
Start-up voltage | 18Vdc | |||
MPPT Tracking Range | 22Vdc-48Vdc | |||
MPPT Tracking accuracy | >99.5% | |||
Maximum DC input current | 14A | |||
Output(AC) | Rated output power | 280W | 330W | 380W |
Maximum output power | 300W | 350W | 400W | |
Rated output voltage | 120Vac 230Vac | |||
Output voltage range | 90Vac-160Vac 190Vac-270Vac | |||
Rated AC current (at 120V) | 2.5 A | 2.91A | 3.3A | |
Rated AC Current (at 230V) | 1.3 A | 1.52A | 1.73A | |
Rated output frequency | 50HZ 60HZ | |||
Output frequency range (HZ) | 47.5Hz-50.5Hz 58.9Hz-61.9Hz | |||
THD | <5% | |||
Power factor | >0.99 | |||
Maximum number of branch circult connections | @120Vac : 8 set /@230Vac : 16 set | |||
Efficiency | Maximum conversion efficiency | 95% | 94.5% | 94% |
CEC efficiency | 92% | |||
Night losses | <80 mW | |||
Protetion function | Over / under voltage protection | Yes | ||
Over / under frequency protection | Yes | |||
Anti-islanding protection | Yes | |||
Over current protection | Yes | |||
Over load protection | Yes | |||
Over temperature protection | Yes | |||
protection class | IP 65 | |||
Working environment temperature | -40~65℃ | |||
Weight (Kg) | 1.2 Kg | |||
Indication lights quantity | working status LED light *1 + Wifi signal LED light*1 | |||
Communication connection mode | Wifi/2.4G | |||
Cooling method | Natural cooling (no fan) | |||
Working environment | Indoor and outdoor | |||
Certification standards | EN1000-3-2 EN61000-3-3 EN62109-2 EN55032 EN55035 EN50438 | |||
