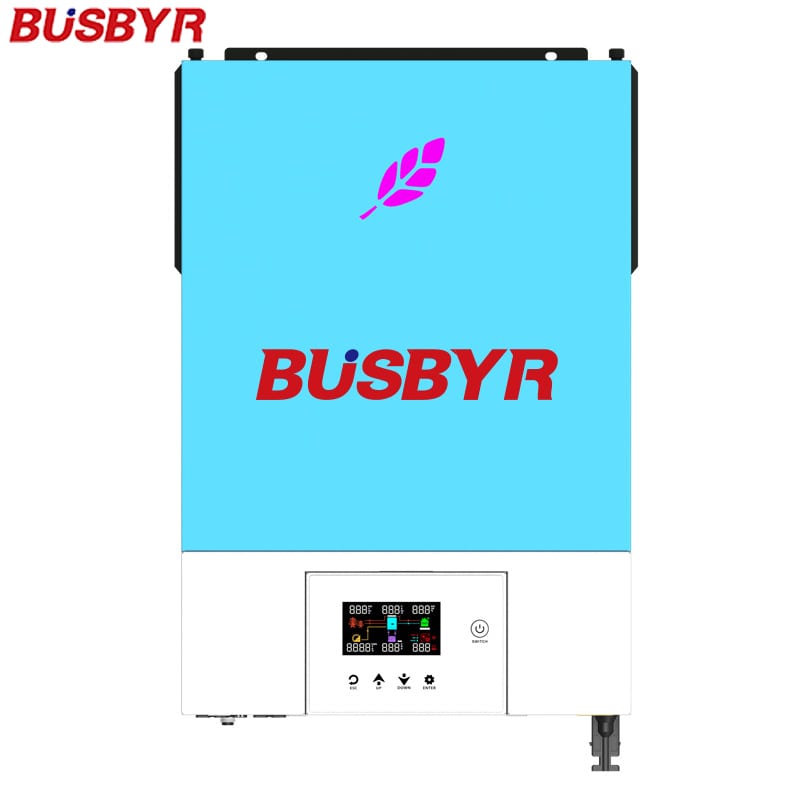

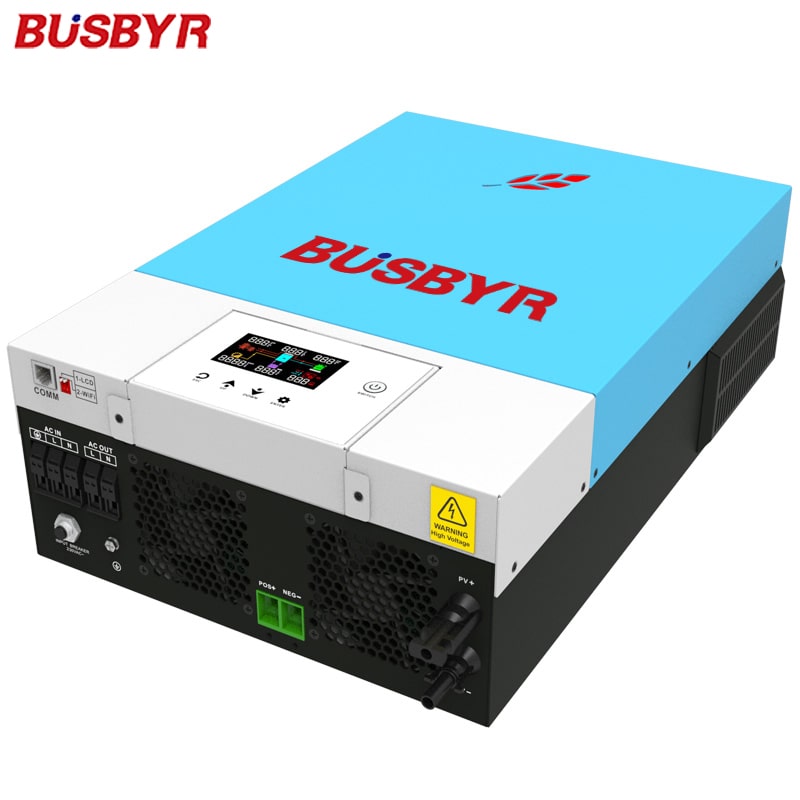

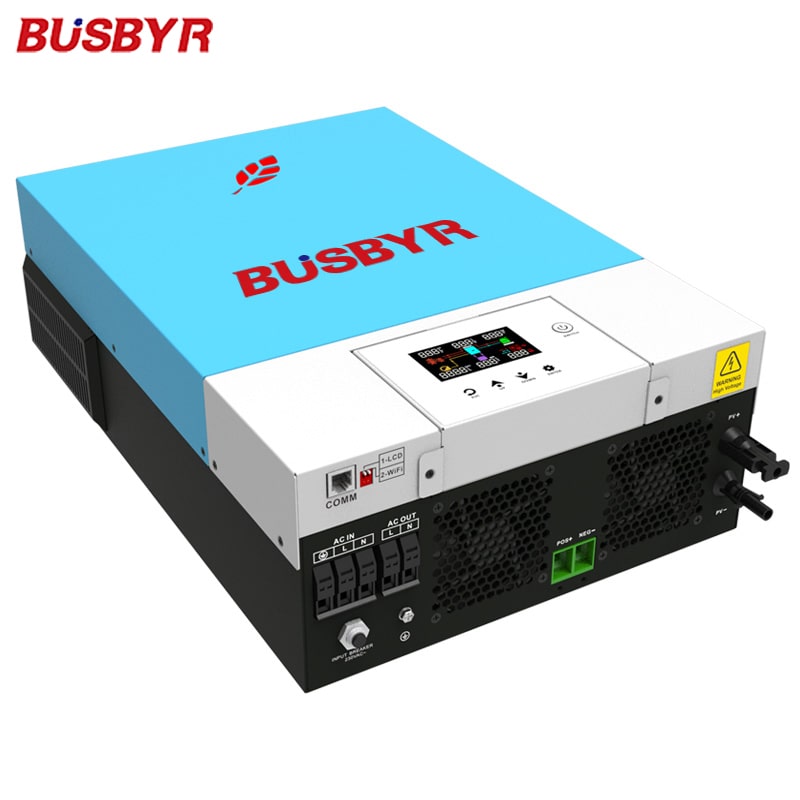

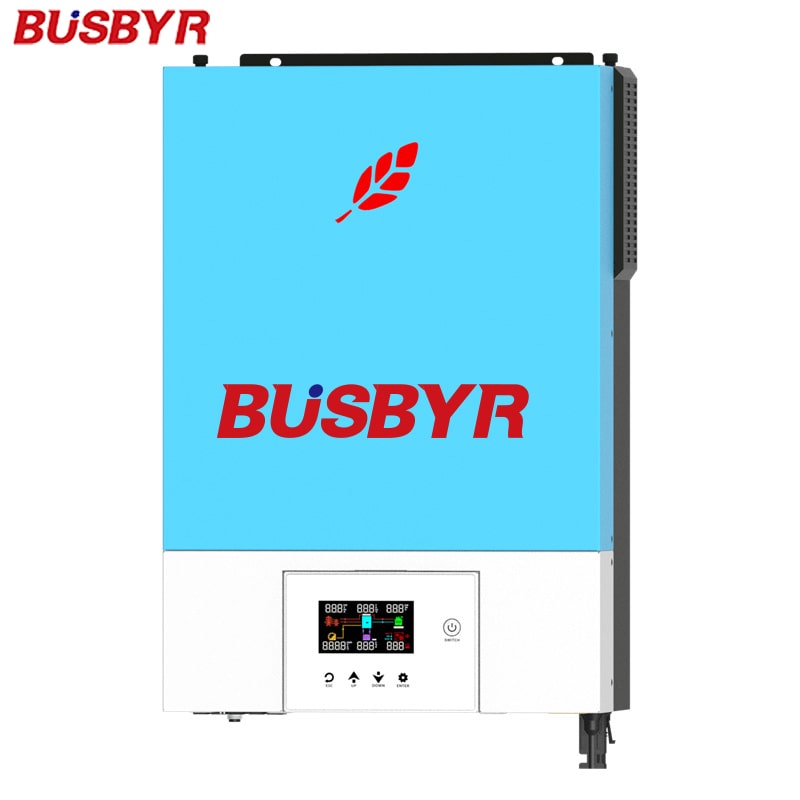

6.2KW Solar hybrid inverter
BS4 Pro Series (3.6/4.2/6.2KW)Key Features
●Pure sine wave solar inverter(on/off Grid)
●Output PF=1.0
●Support WIFI&GPRS for App
●Inverter can running without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 120A MPPT(for 3.6KW/6.2KW)/140A(for 4.2KW)
●Solar Charging Current: Max 6200w(for3.6kw/4.2kw),max 6500w (for 6.2kw)
●Wide PV input voltage range(90~500VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Overload/Over temperature/short circuit protection
Description
This 6.2KW Solar hybrid inverter built-in 120A MPPT and lithium battery automatic activation function, anti-dusk kit design, can be used in a variety of harsh environments. Equipped with a one-button recovery setting function, 3 power supply modes can be selected: mains priority, solar energy priority and SBU priority mode. BS4 Pro all series use the Intelligent operation and movable control screen, which is the prefect choice for home furnishing.
Specification
MODEL | BS4-PRO-3.6KW | BS4-PRO-4.2KW | BS4-PRO-6.2KW |
Phase | 1-phase | ||
Maximum PV Input Power | 6200W | 6200W | 6500W |
Rated Output Power | 3600W | 4200W | 6200W |
Maximum Solar Charging Current | 120A | 140A | 120A |
GRID-TIE OPERATION | |||
PV Input(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
Maximum DC Voltage | 90-450VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/23A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195.5-253VAC | ||
Nominal Output Current | 15.7A | 18.2A | 27.0A |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49~51±1Hz | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(Sloar to AC) | 98% | ||
OFF-GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280 VAC or170-280VAC | ||
Maximum AC Input Current | 30A | 30A | 40A |
Nominal operating frequency | 50/60Hz | ||
Surge power | 7200W | 8400W | 12400W |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY&CHARGER | |||
Nominal DC Voltage | 24VDC | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 140A | 120A |
Maximum AC Charging Current | 100A | ||
GENERAL | |||
PHYSICAL | |||
Dimension,D X W X H(mm) | 420*310*140 | ||
Cartoon Dimension,D X W XH(mm) | 550*400*230 | ||
Net Weight(kgs) | 10 | 10.5 | 11 |
Gross Weight(kgs) | 11 | 11.5 | 12 |
INTERFACE | |||
Communication Port | RS232/WIFI/Remove LCD/GPRS | ||
ENVIRONMENT | |||
Operating Temperature | -10-50℃ | ||
