6kw hybrid inverter for solar system
BSSI-V Series (2.2KW/3.2KW/4.2KW/6.2KW/7KW/10.2KW)Key Features
●Pure sine wave solar inverter(Output power factor 1.0)
●Built-in 120A MPPT Solar charge: max 6500W for 6.2KW

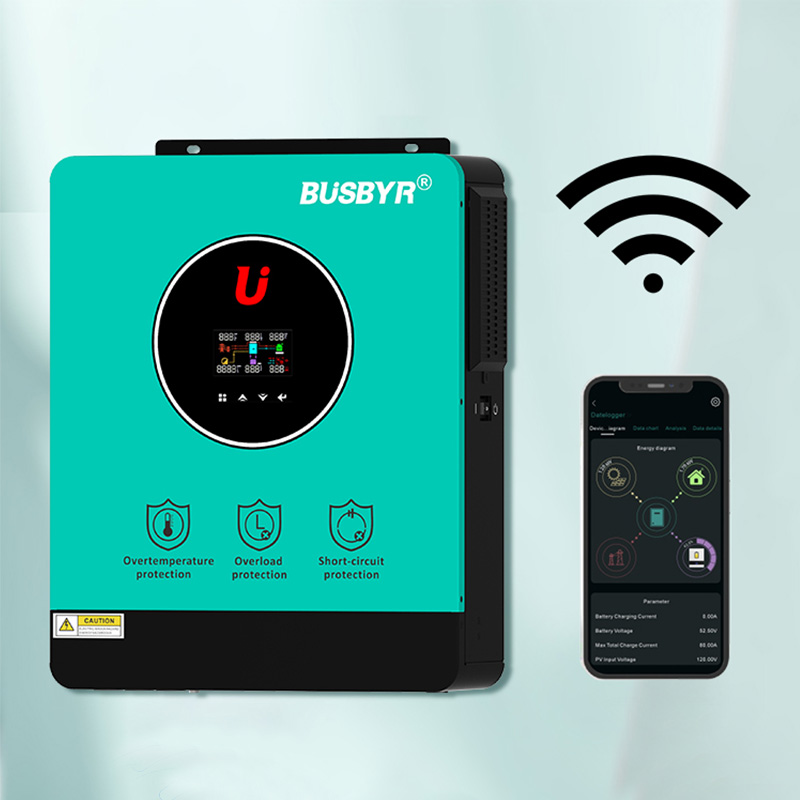

●WIFI&GPRS available for IOS and Android
●High PV input voltage range(60~500VDC)
●Inverter can run without battery
●Built-in anti-dust kit for harsh environment
●One-key restoration to factory Settings
●Smart battery charge design to optimize battery life
●Built-in Lithium battery automatic activation
●Dual output
●RS485/RS232/WIFI/GPRS/LITHIUM BATTERY
Description
The new 6kw hybrid inverter is a powerful solar system device. The inverter has built-in 120A mppt charging technology, which can efficiently convert solar power and provide stable power supply for the pv system. At the same time, the inverter also has intelligent WIFI connection function, which can remotely monitor and control the system operation through mobile phones and other devices. In addition, the inverter also supports RS485/RS232 communication interface, which can be connected with other devices to realize grid and off-grid operation. This solar inverter has a customizable appearance design and can meet the individual needs of different users. In order to enhance the connection capability, the inverter also adds an RS485 interface to facilitate connection with the BMS management system of lithium batteries and lead-acid batteries. Even without batteries, the inverter can operate normally, providing reliable power conversion services for the home.
Specification
MODEL | BSSI-V-GN6200 | BSSI-V-GN10200 |
Phase | 1-phase | |
Maximum PV Input Power | 6500W | 5400W+5400W |
Rated Output Power | 6500W/6500VA | 10200W/10200VA |
Maximum Solar Charging Current | 120A | 160A |
GRID-TIE OPERATION | ||
PV Input(DC) | ||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | 360VDC/500VDC |
Start-up Voltage/lnitial Feeding Voltage | 60VDC/90VDC | 90VDC/120VDC |
MPPT Voltage Range | 60VDC-450VDC | 90VDC-450VDC |
Number of MPPT Trackers/Maximum Input Current | 1/22A | 2/18A |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
Output Voltage Range | 195-253VAC | 190-253VAC |
Nominal Output Current | 27.0A | 44.3A |
Power Factor | >0.99 | >0.99 |
Feed-in Grid Frequency Range | 49~51±1Hz | 49~51±1Hz |
EFFICIENCY | ||
Maximum Conversion Efficiency(DC/AC) | 98% | |
TWO LOAD OUTPUT POWER | ||
Full Load | 6200W | 10200W |
Maximum Main Load | 6200W | 10200W |
Maximum Second Load(battery mode) | 2067W | 3400W |
Maximum Load Cut Off Voltage | 44VDC | 52VDC |
Maximum Load Return Voltage | 52VDC | 54VDC |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
Acceptable Input Voltage Range | 90-280 VAC or 170-280VAC | |
Maximum AC Input Current | 40A | 50A |
Nominal operating frequency | 50/60Hz | |
Surge power | 10000W | 20400W |
PV INPUT(DC) | ||
Maximum DC Voltage | 500VDC | 360/500VDC |
MPPT Voltage Range | 90VDC-450VDC | 90VDC-450VDC |
Number of MPPT Trackers/Maximum Input Current | 1/27A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 220/230/240VAC | 220/230/240VAC |
Output Waveform | Pure sine wave | Pure sine wave |
Efficiency(DC to AC) | 94% | 94% |
BATTERY&CHARGER | ||
Nominal DC Voltage | 48VDC | 48VDC |
Maximum Solar Charging Current | 120A | 160A |
Maximum AC Charging Current | 100A | 140A |
GENERAL | ||
PHYSICAL | ||

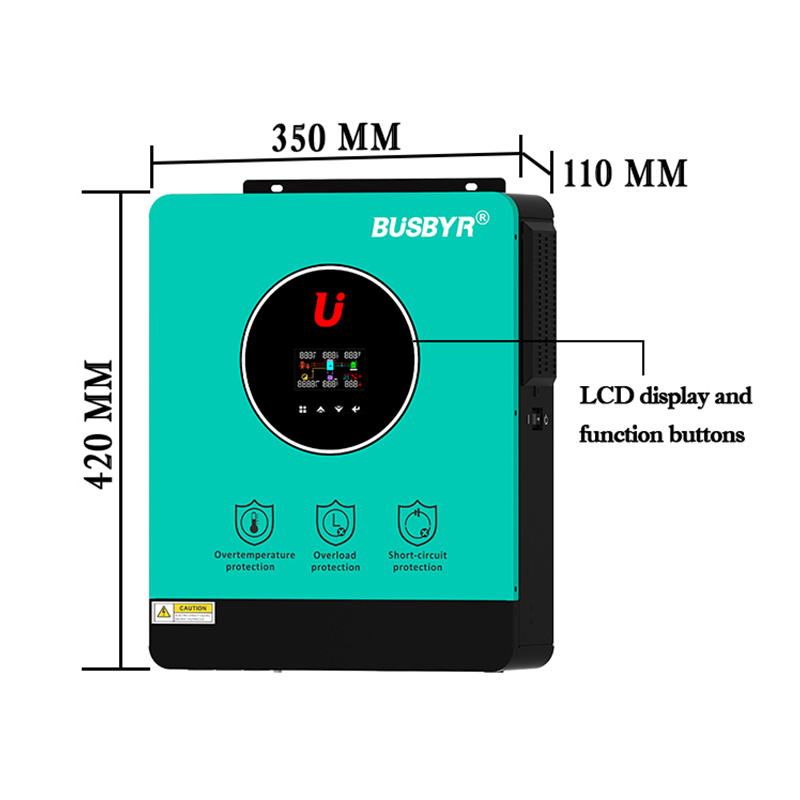

Dimension,D X W X H(mm) | 420*350*110 | 530*420*160 |
Cartoon Dimension,D X W XH(mm) | 500*415*180 | 618*463*205 |
Net Weight(kgs) | 9 | 15 |
Gross Weight(kgs) | 10 | 16.5 |
INTERFACE | ||
Communication Port | RS232/RS485/WIFI//GPRS/Lithium Battery | |
ENVIRONMENT | ||
Operating Temperature | -10-50℃ | |
