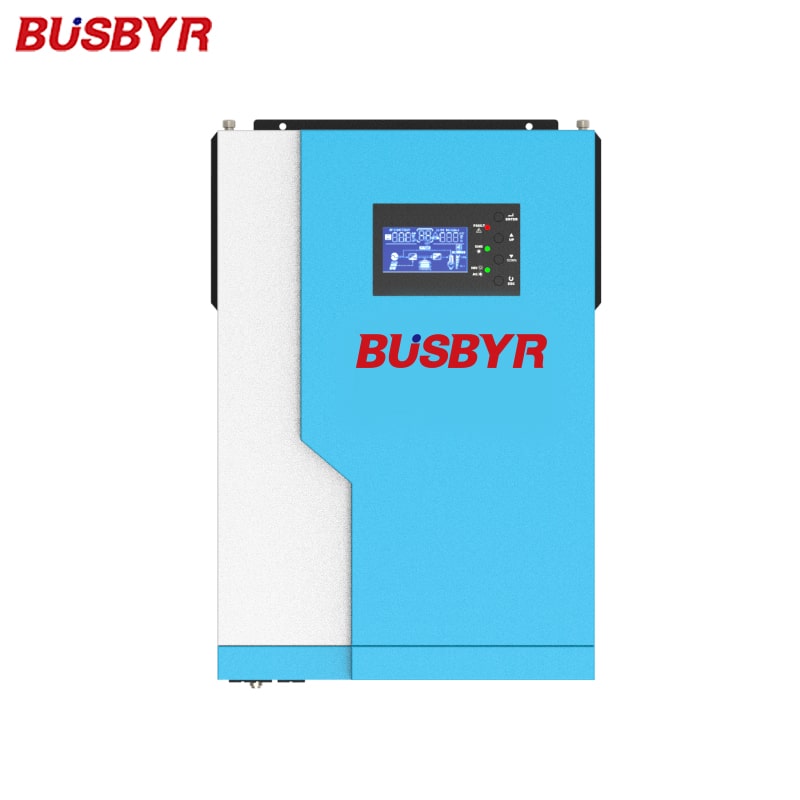

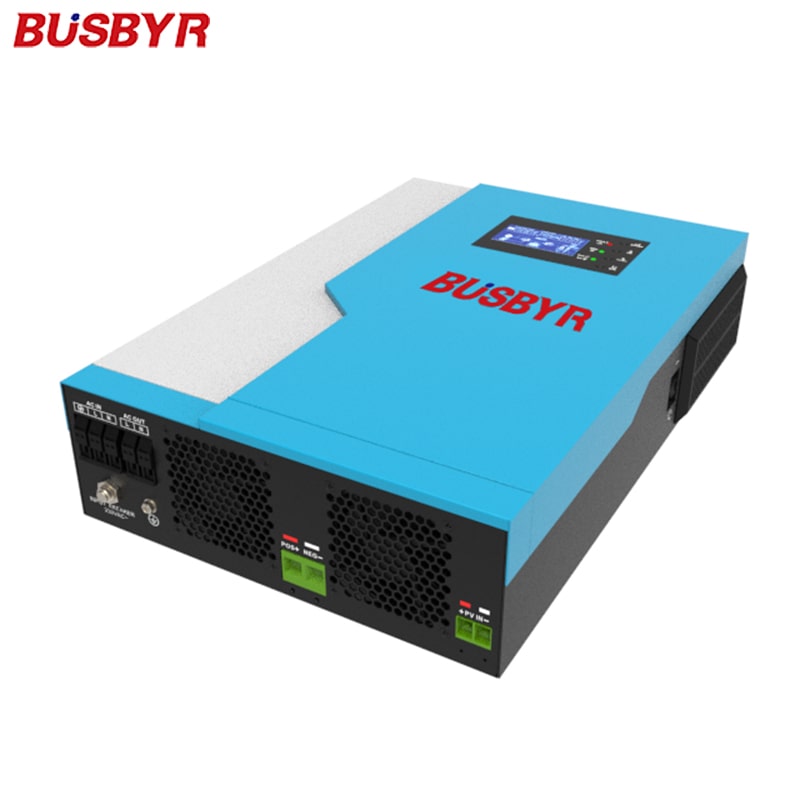

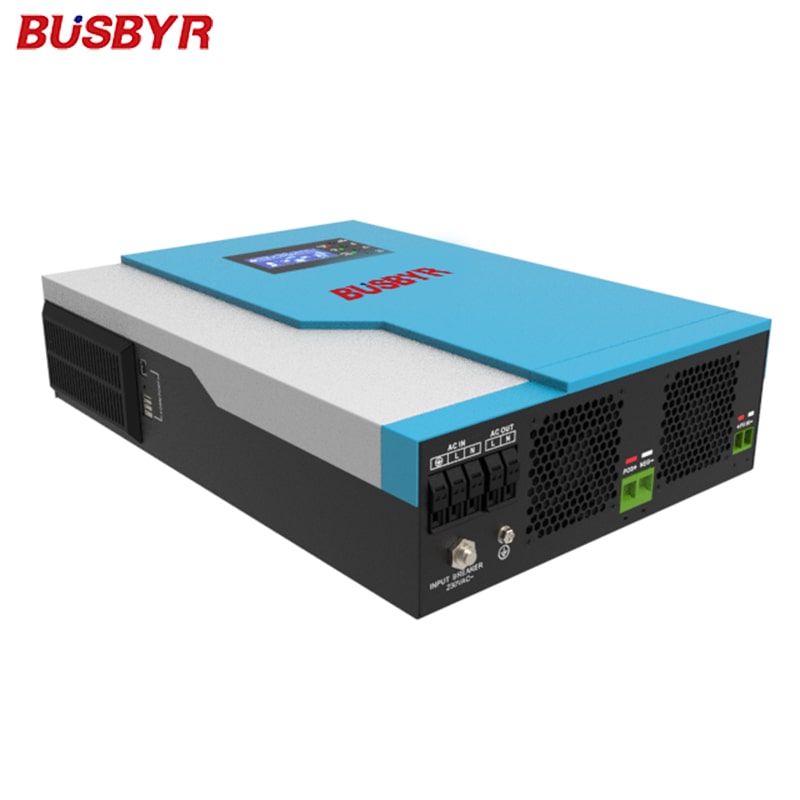

3.5kva solar inverter
BS2 Series (3.5/5.5KW)Key Features
●Pure sine wave solar inverter
●Output PF= 1.0
●WIFI&GPRS available for IOS and android
●Inverter running without battery
●Built-in 100A MPPT solar charger
●High PV input voltage range(120~450VDC)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life
Description
The 3.5kva solar inverter can work independently after being disconnected from the grid, which is equivalent to an independent small grid. It mainly controls its own voltage and is a voltage source. It can carry loads such as resistance-capacitance and motor inductance. Fast response to solar energy, strong anti-interference, strong adaptability and practicability. This 3.5kw solar inverter has a built-in 100A MPPT solar charger, which is the first choice for power failure emergency power supply and outdoor power supply.
Specification
Model | BS2-3500W | BS2-5500W |
RATED POWER | 3500VA/3500W | 5500VA/5500W |
Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 7000VA | 11000VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms(For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum Charge Current | 80A | 80A |
SOLAR CHARGER | ||
Maximum PV Array Power | 5000W | 6000W |
MPPT Range Operating Voltage | 120-450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 100A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 440*310*110 | |
Cartoon Dimension,D X W XH(mm) | 590*390*210 | |
Net Weight(kgs) | 8.5 | 9.5 |
Gross Weight(kgs) | 9.5 | 10.5 |
Communication interface | USB/RS232/GPRS/WIFI | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non~condensing) | |
Operating Temperature | -10~50℃ | |
