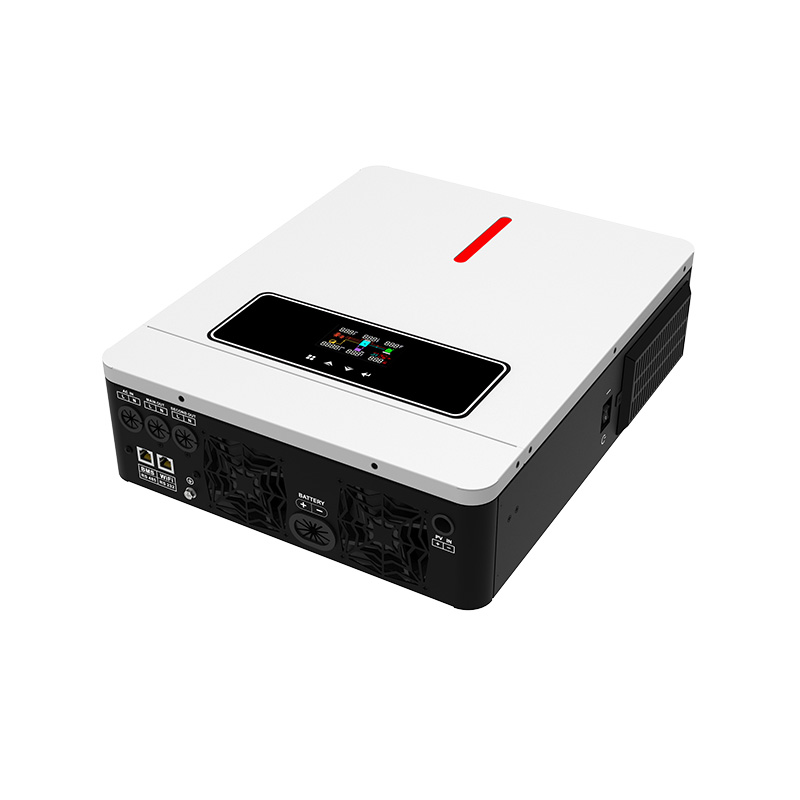

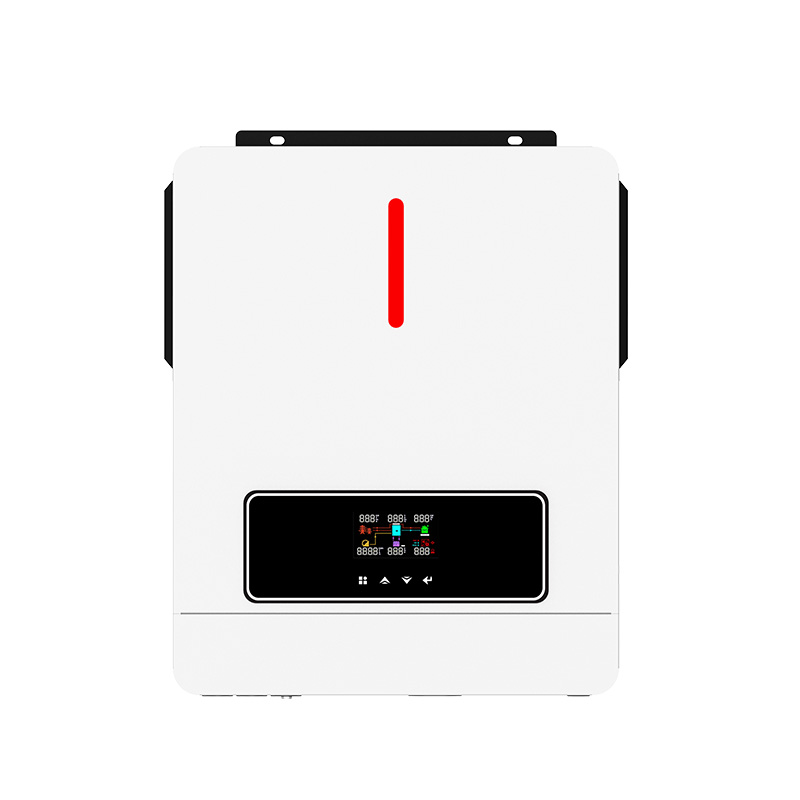

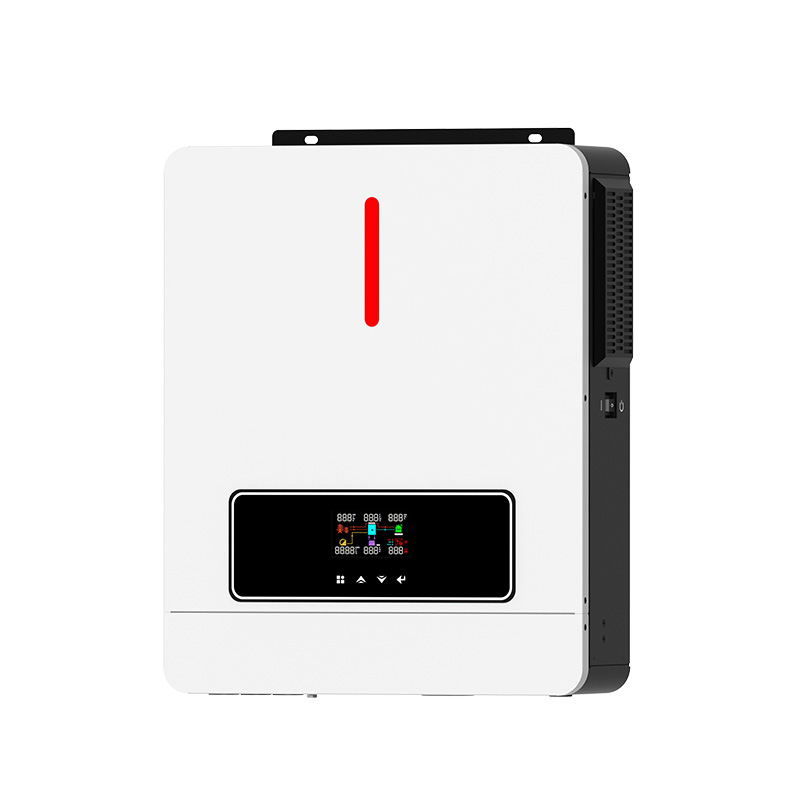

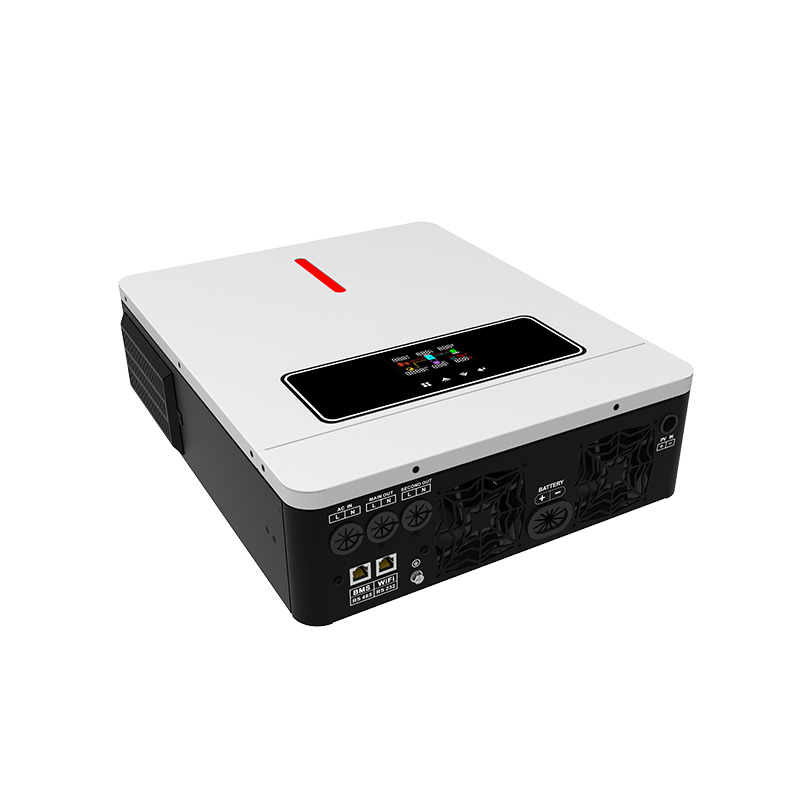

6.2KW intelligent hybrid solar inverter
BS4 Eco Series (3.6/4.2/6.2KW)Key Features
●Pure sine wave solar inverter(on/off Grid)
●HYBRID Grid-Tie / Off Grid SOLAR inverter for 48V system
●PF=1.0
●Support WIFI&GPRS for App
●Inverter running without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation system
●Built-in 120A MPPT, max 6500w(for 6.2kw)solar charge
●High PV input voltage range(60~500VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Dual output
Description
The 6.2KW intelligent hybrid solar inverter is a brand new single-phase hybrid inverter with a low battery voltage of 48V to ensure the system is safe and reliable. The series has compact design, high power density, supports battery-free operation, and saves equipment investment. Built-in 120A MPPT output and lithium battery automatic activation system to expand application scenarios. High photovoltaic input voltage range and dual output make the solar energy system smart and flexible.
Specification
MODEL | BS4-ECO-3.6KW PLUS | BS4-ECO-4.2KW PLUS | BS4-ECO-6.2KW PLUS |
Phase | 1-phase | ||
Maximum PV Input Power | 6200W | 6200W | 6500W |
Rated Output Power | 3600W | 4200W | 6200W |
Maximum Solar Charging Current | 120A | 120A | 120A |
GRID-TIE OPERATION | |||
PV Input(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | ||
Maximum DC Voltage | 60-450VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/23A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195.5-253VAC | ||
Nominal Output Current | 15.7A | 18.2A | 27.0A |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49-51±1Hz | ||
Maximum Conversion Efficiency(Solar to AC) | 98% | ||
TWO LOAD OUTPUT POWER(V2.0) | |||
Full Load | 3600W | 4200W | 6200W |
Maximum Main Load | 3600W | 4200W | 6200W |
Maximum Second Load(battery mode) | 1200W | 1400W | 2067W |
Main Load Cut Off Voltage | 22VDC | 22VDC | 44VDC |
Main Load Return Voltage | 26VDC | 26VDC | 52VDC |
OFF-GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280 VAC or 170-280VAC | ||
Maximum AC Input Current | 40A | 40A | 50A |
Nominal operating frequency | 50/60Hz | ||
Surge power | 7200W | 8400W | 10000W |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY&CHARGER | |||
Nominal DC Voltage | 24VDC | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 120A | 120A |
Maximum AC Charging Current | 100A | 100A | 100A |
GENERAL | |||
Dimension,D W X H(mm) | 420*350*110 | ||
Cartoon Dimension,D X W XH(mm) | 500*410*190 | ||
Net Weight(kgs) | 8 | 8.5 | 9 |
Gross Weight(kgs) | 9 | 9.5 | 10 |
INTERFACE | |||
Communication Port | RS232/WIFI/GPRS/Lithium Battery | ||
Operating Temperature | -10-50℃ | ||
