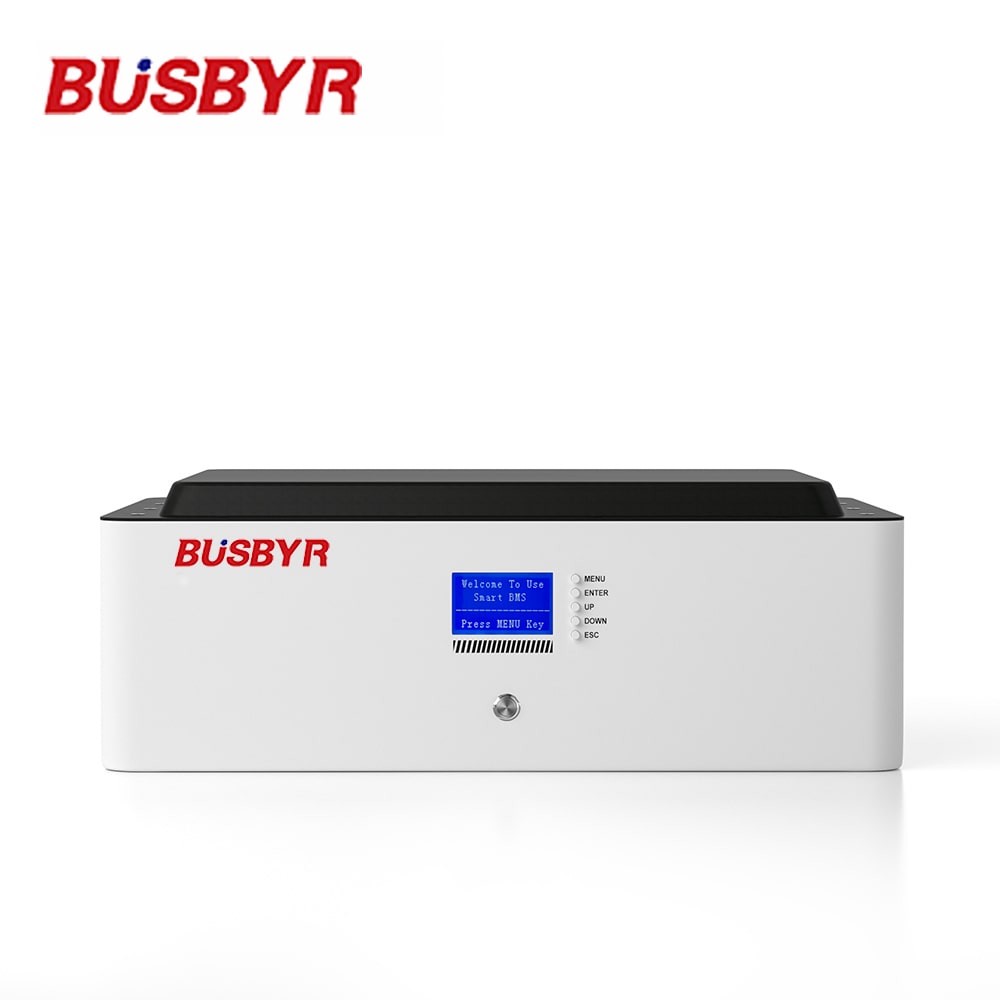

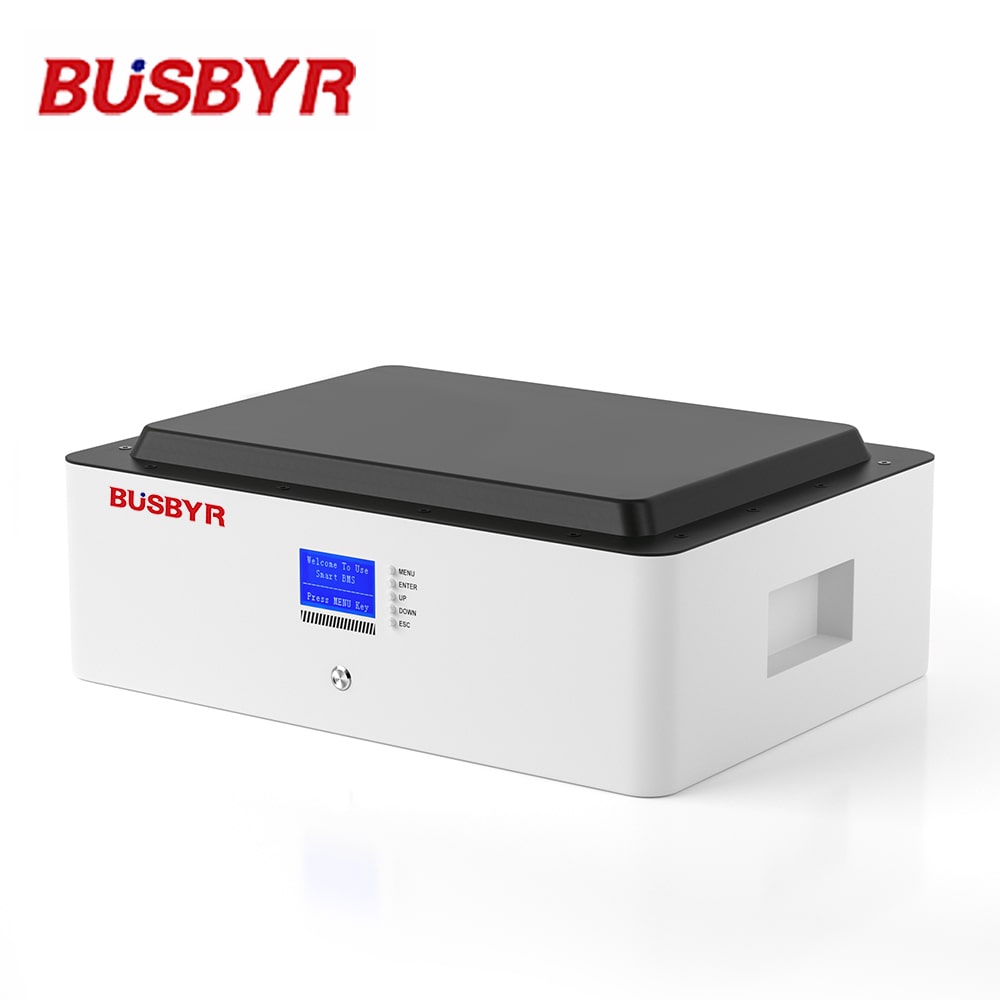

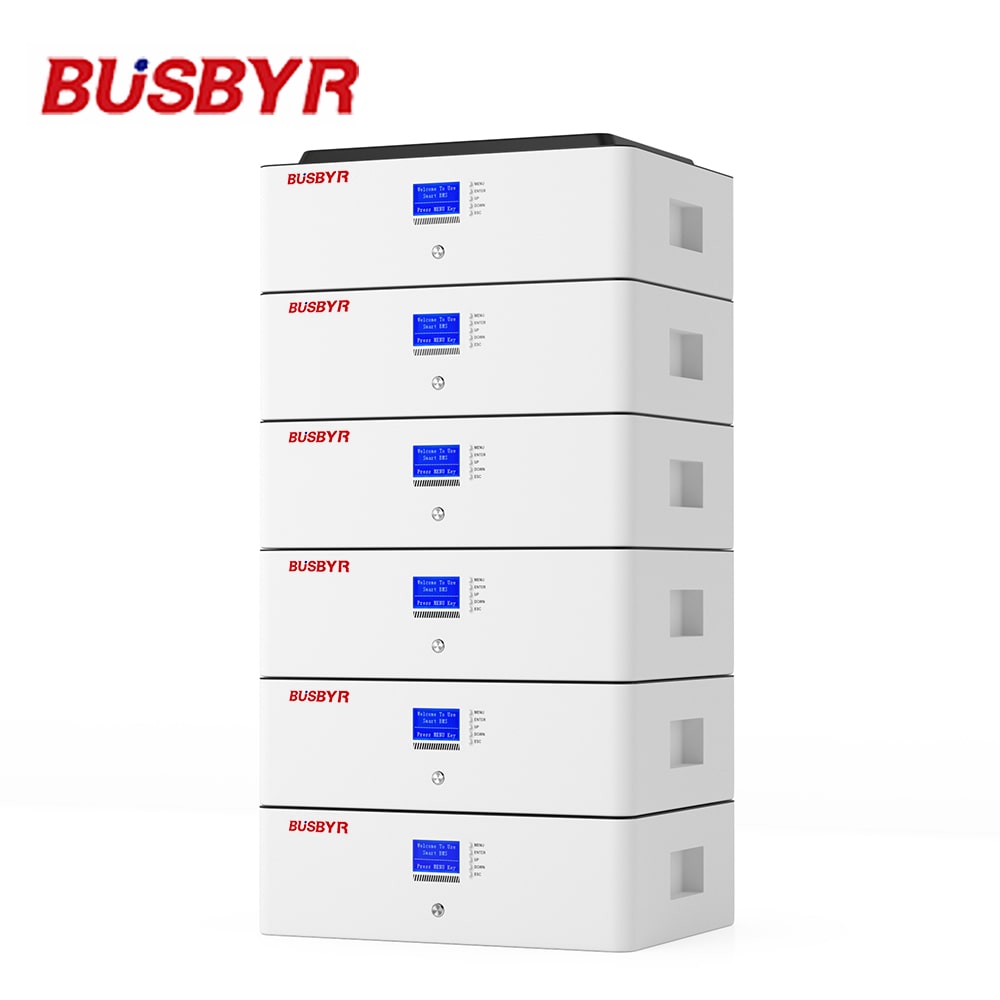

99% Efficiency Outdoor Cabinet 5.12kwh 51.2V 100Ah Lifepo4 Lithium Ion Battery

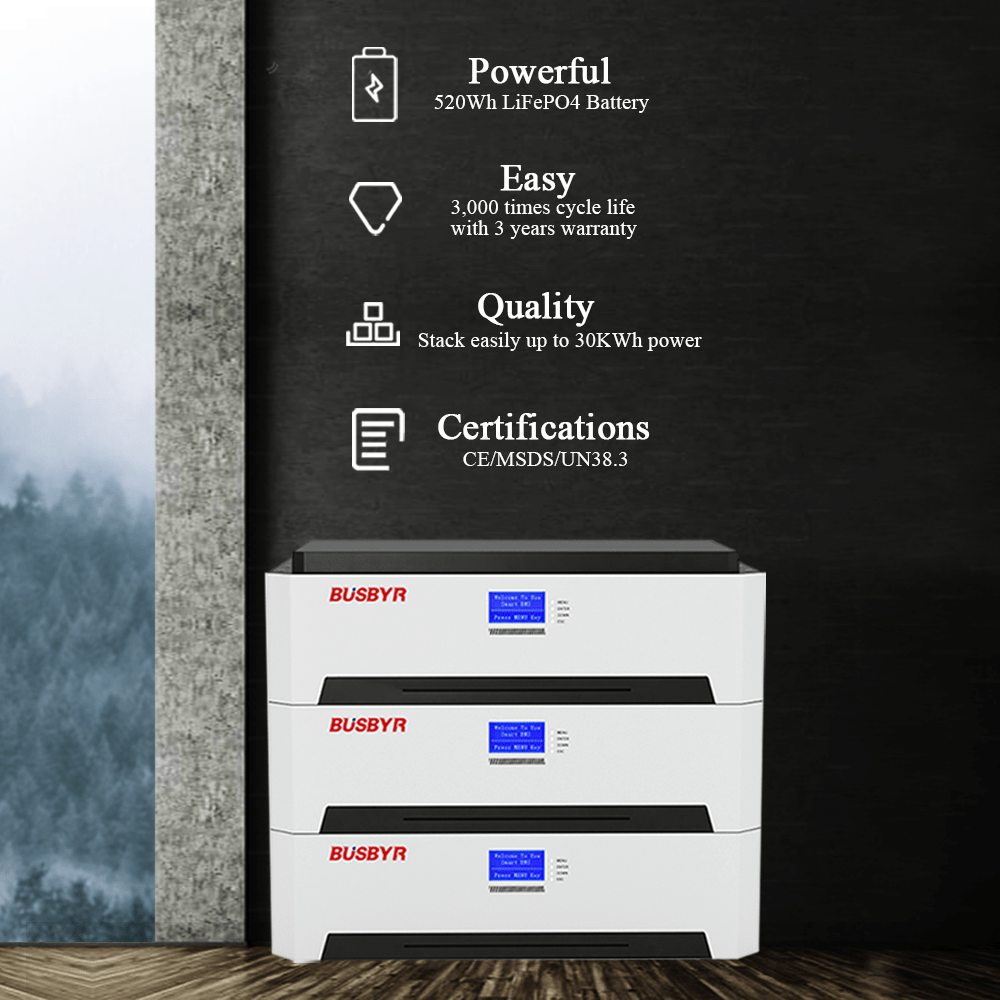

Stackable Lithium BatteryKey Features
●Safety in use
●Low self discharge rate
●Good high temperature performance
●High Cycle times and long service life
●High energy density and conversion efficiency
●Environmental friendly, without any heavy metals

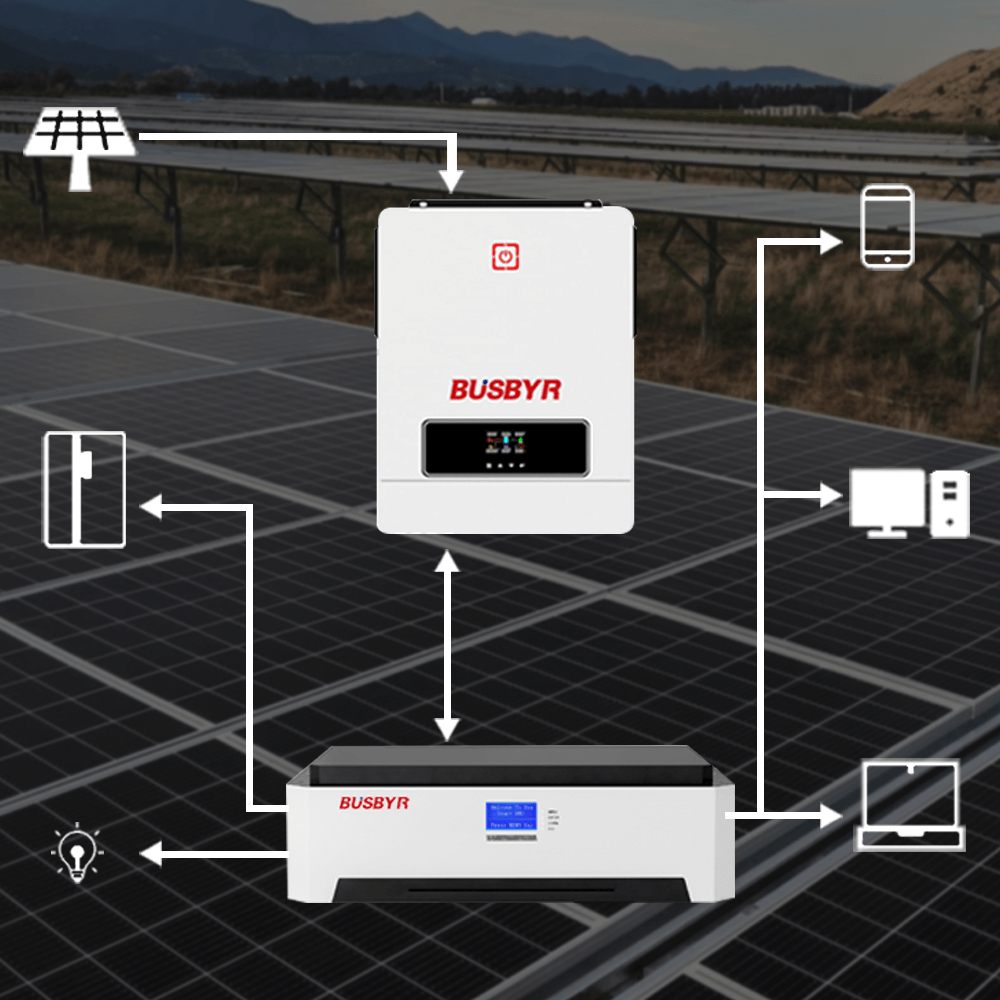

●Easy installation, BMS Modbus protocol can communicate with the inverter
Description

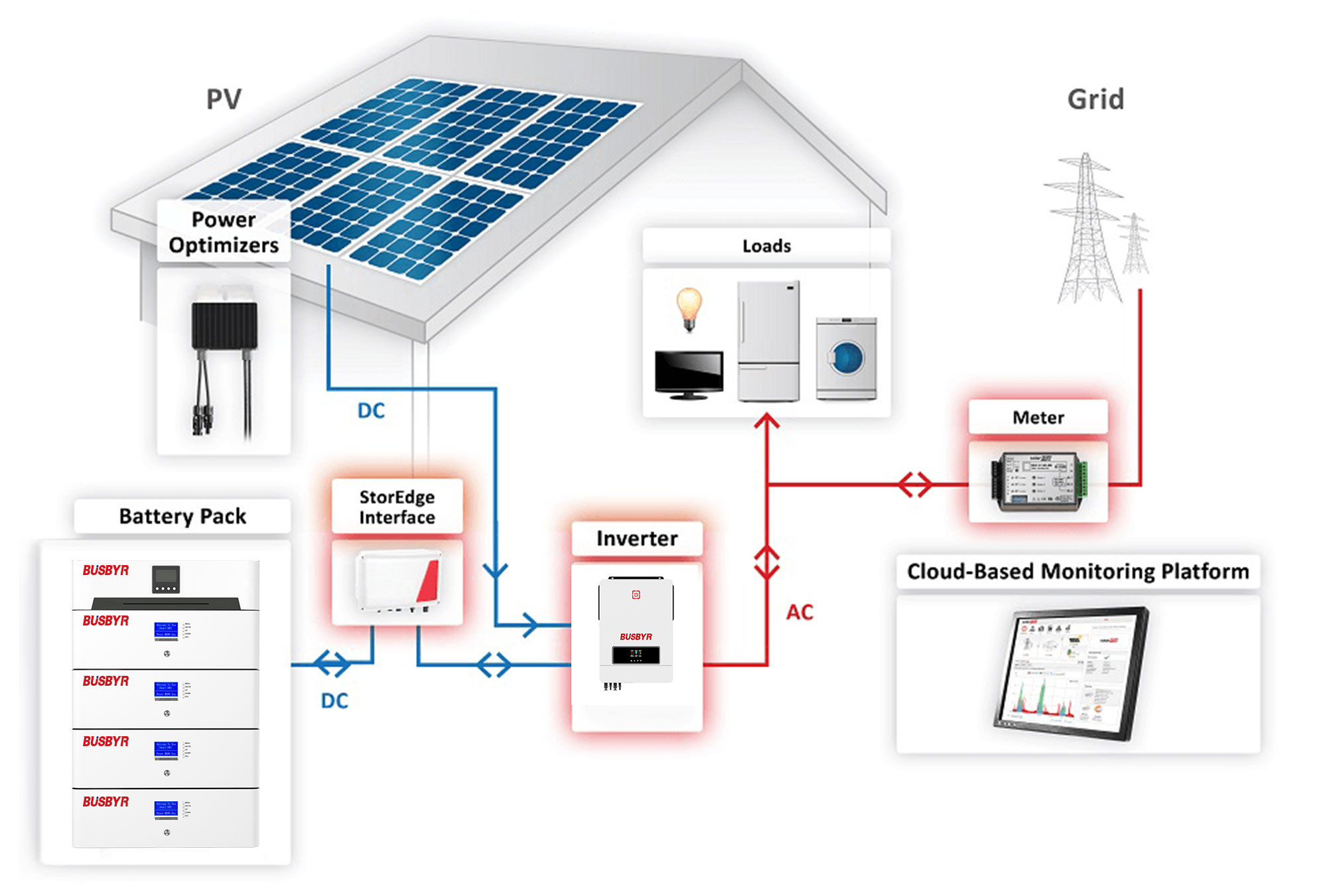

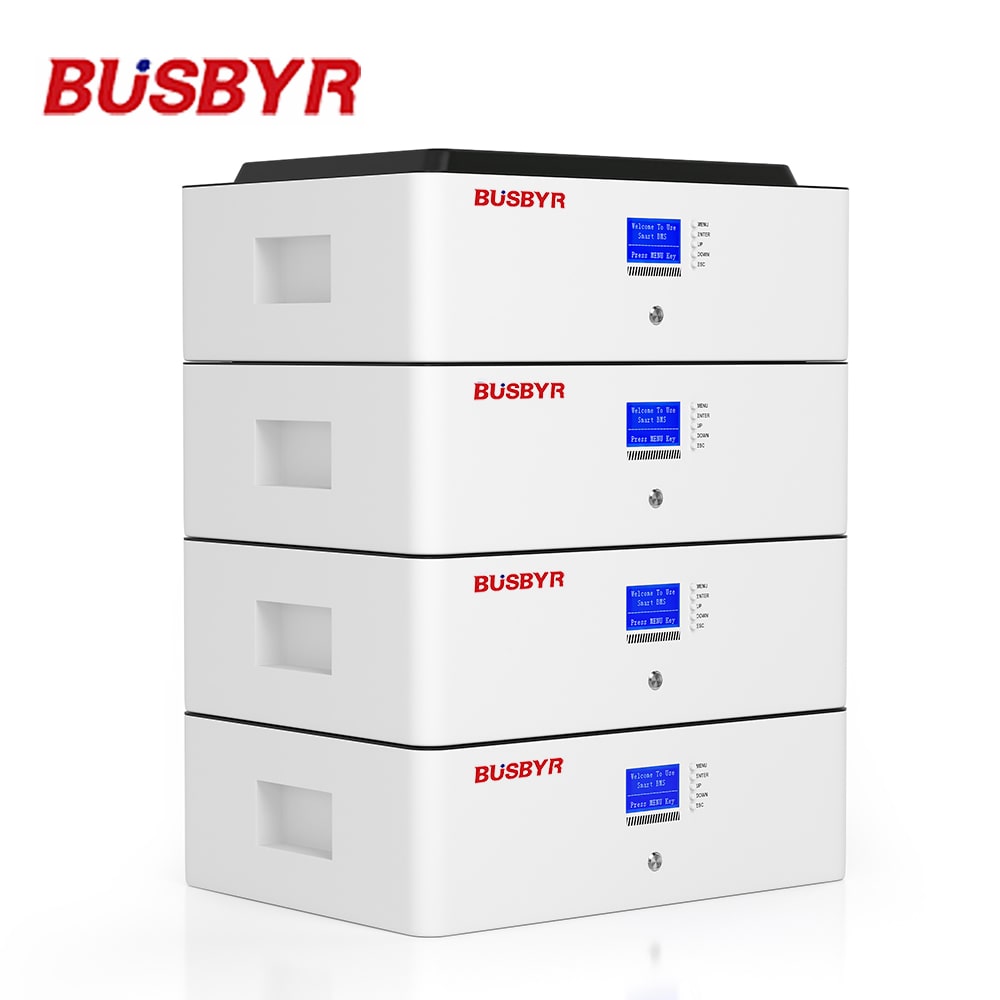

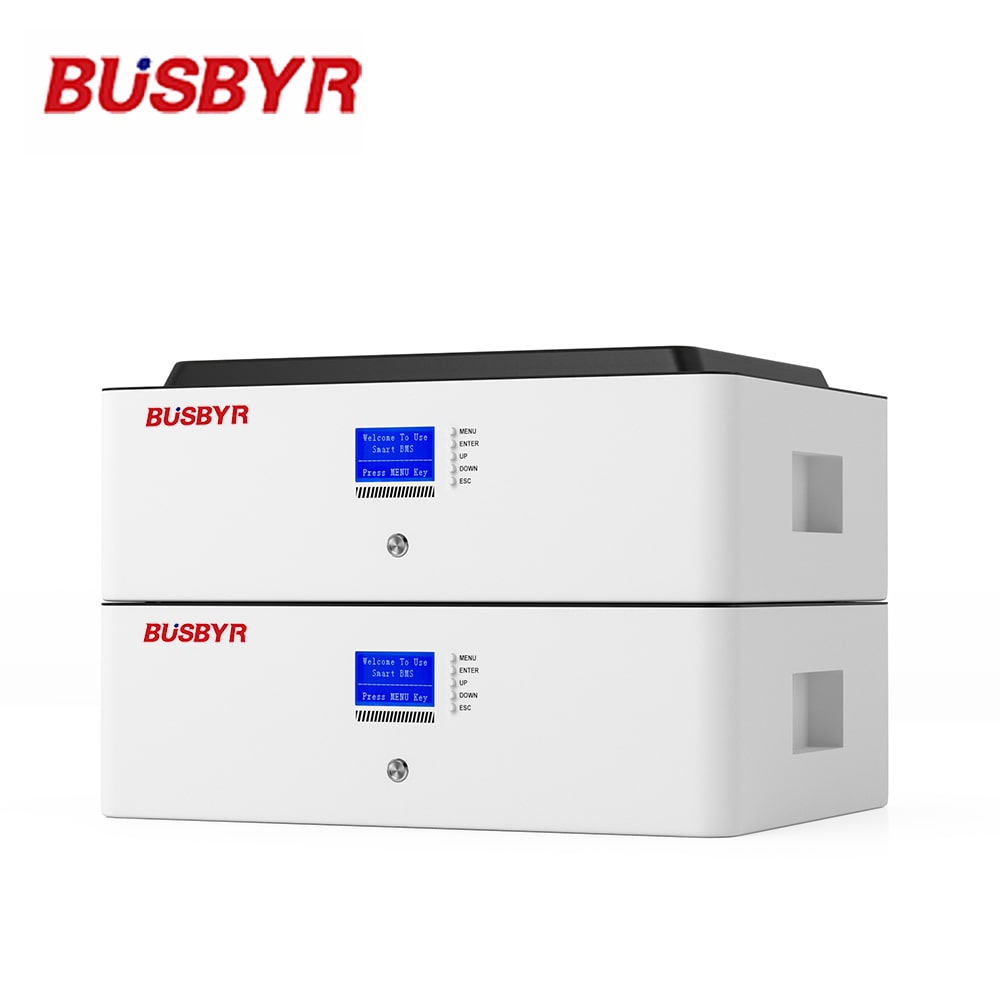

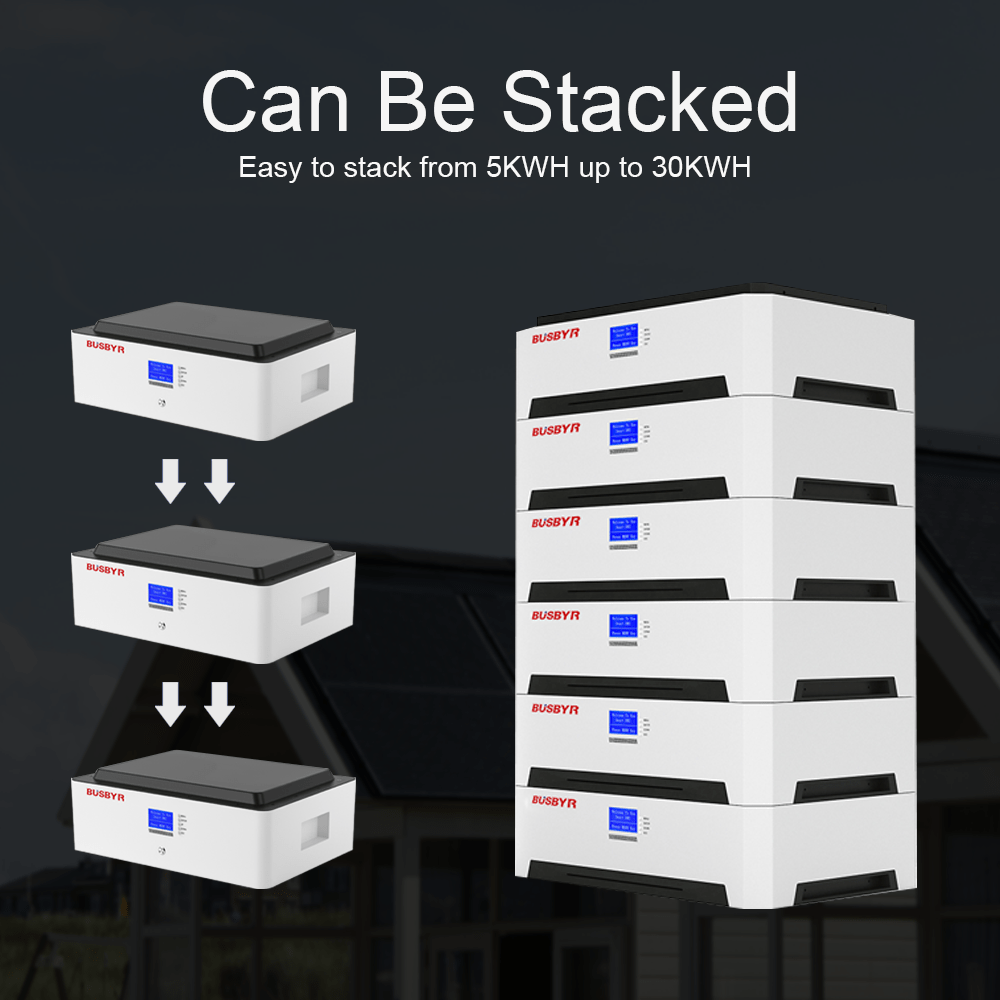

This battery is a new type of energy storage product, which has 5kWh to 30kWh per system. Ultra-thin and stackable is especially suitable for applications with limited installation space. Built-in integrated smart BMS with self-balance for each serial of cells, battery voltage, current, temperature and other information management and monitoring. In addition, the battery pack can balance the charge and discharge of the battery to prolong the cycle life. Multiple battery packs can be parallel to expand capacity and power, parallel to expand capacity and longer power support time requirements.
Battery Parameter
Item | Specification | |
Electrical Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah | |
Energy | 5120Wh | |
Intemal Resistance | ≤30mΩ | |
Cycle Life | >3000 Cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100%@0.2C | |
Efficiency of Discharge | 96-99%@1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current 0.02C(CC/CV) | |
Charger Current | 50A | |
Max.Charge Current | 100A | |
Charge Cut-off Voltage | 58.4V±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max.Pulse Current | 300A(30S) | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0℃ to 45℃ (32Fto113F) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60+25% Relative Humidity | |
Storage Temperature | 0℃ to 40℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Cell Method | 3.2V100AH-16S1P | |
Shell Material | Iron shell | |

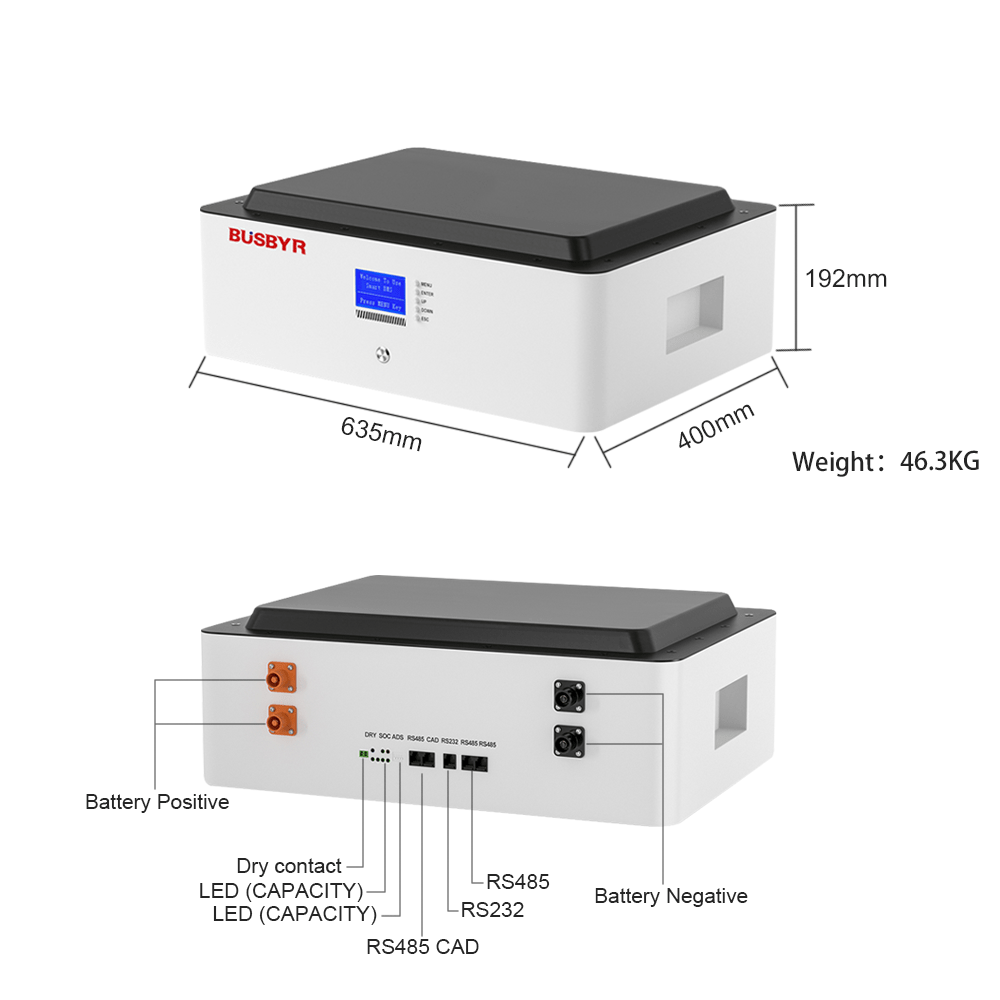

Dimensions (in./mm.) | 580*430*200MM | |
Mechanical | Weight (lbs./kg.) | 46.3Kg |
Terminal | 100A through terminal | |
Protocol (optional) | RS485/RS232/CAN | |
BMS | 16S100A |
