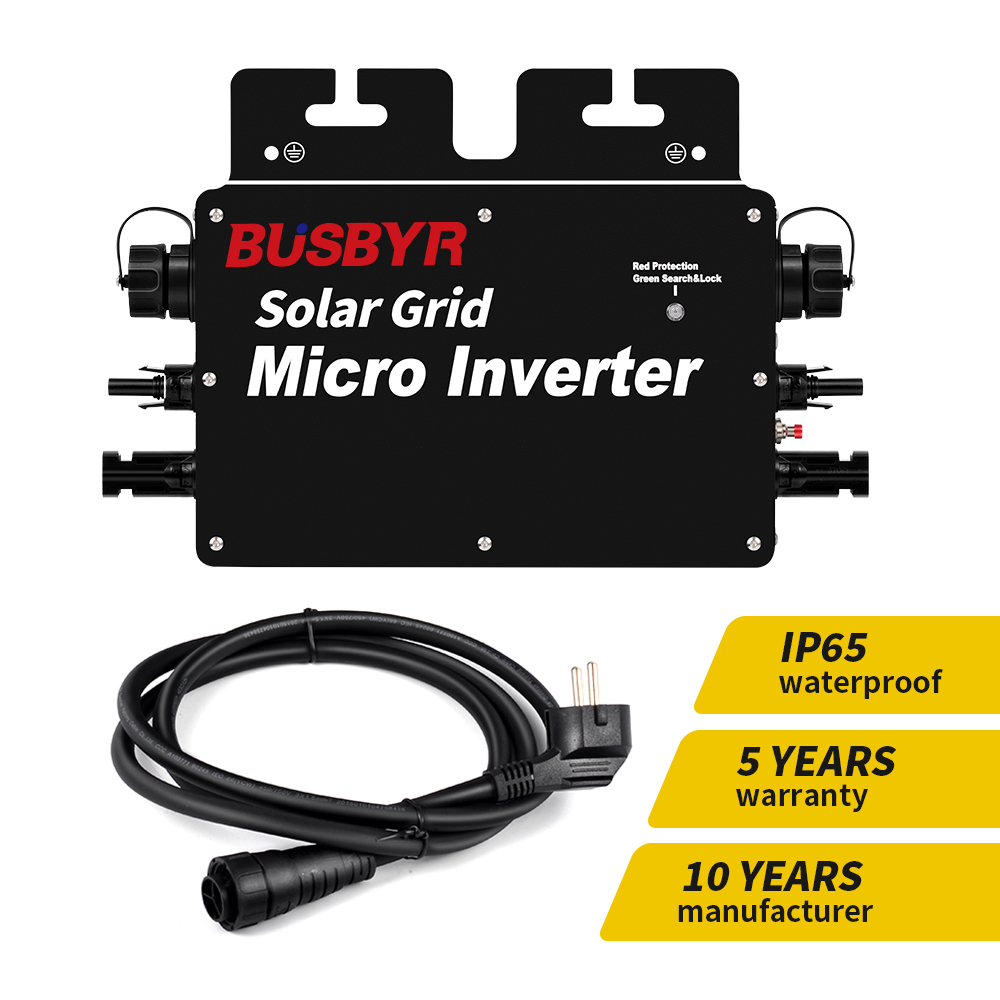

On Grid Microinverter 800W
600w 700w 800w Microinverter> IP65 waterproof grade
> Back outlet hole to prevent electric shock
> Smartphone APP intelligence system
> Better heat dissipation
> 20% More Efficient Than Traditional Solar Inverter
> MPPT power automatic tracking

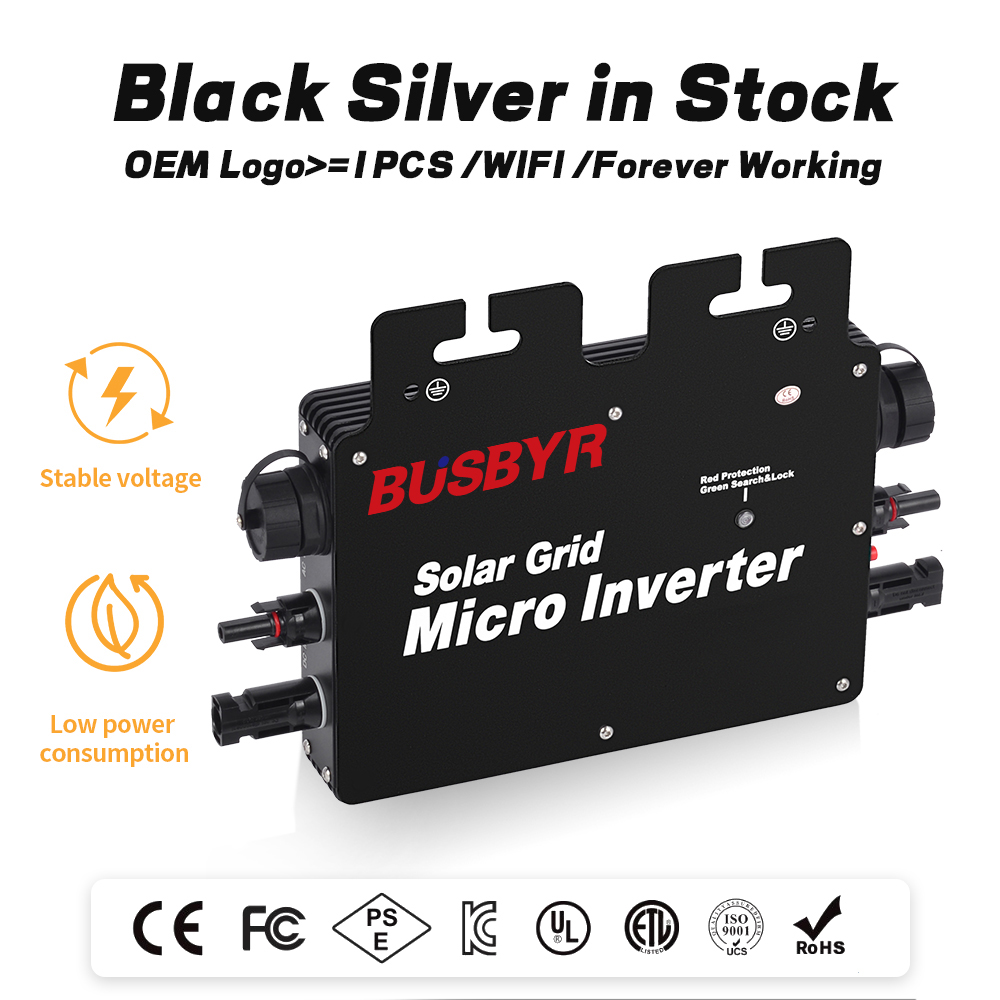

> CE, FC, PSE, UL, CE, RoHS, ISO9001 certificated
The grid-connected micro inverter 800w is a high-efficiency power conversion device that converts direct current into alternating current. The compact size of this inverter makes it suitable for small homes and commercial environments. It adopts advanced circuit design and frequency conversion technology, with high efficiency and stable output power. At the same time, the inverter has intelligent monitoring and protection functions, which can monitor power generation and usage in real time, and automatically switch grid power supply when needed. Its rated power of 800 watts meets most household and commercial electricity needs, effectively reduces energy consumption, and provides users with reliable power conversion solutions.
- High efficiency: MPPT engine is used to achieve the maximum efficiency of energy conversion

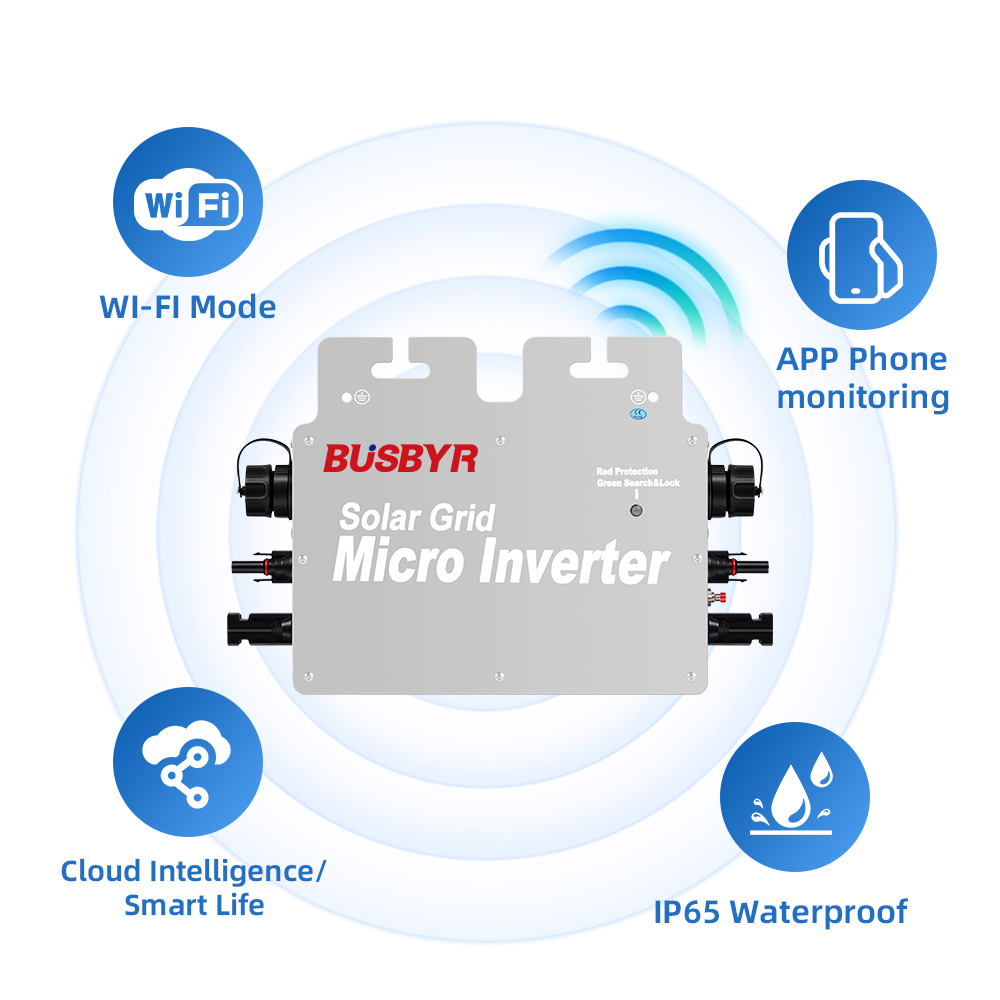

- Intelligent: Equipped with intelligent wifi module, which can realize remote monitoring and control
- Multiple security protections: with multiple security protection functions to ensure safety during use
- Simple installation: easy and convenient installation, suitable for various scenarios
- Excellent reliability: After rigorous testing and verification, it has good performance and reliability
Specification
Model | 600W | 700W | 800W | |
Input(DC) | Recommend solar panel input power (W) | 200-300W*2 | 250-350W*2 | 275-400W*2 |
Number of DC input connections (groups) | MC4*2 | |||
Maximum DC input voltage | 52Vdc | |||
Operating voltage range | 20Vdc-50Vdc | |||
Start-up voltage | 18Vdc | |||
MPPT Tracking Range | 22Vdc-48Vdc | |||
MPPT Tracking accuracy | >99.5% | |||
Maximum DC input current | 14A*2 | |||
Output(AC) | Rated output power | 550W | 650W | 750W |
Maximum output power | 600W | 700W | 800W | |
Rated output voltage | 120Vac 230Vac | |||
Output voltage range | 90Vac-160Vac 190Vac-270Vac | |||
Rated AC current (at 120V) | 5A | 5.83A | 6.6A | |
Rated AC Current (at 230V) | 2.6A | 3A | 3.47A | |
Rated output frequency | 50HZ 60HZ | |||
Output frequency range (HZ) | 47.5Hz-50.5Hz 58.9Hz-61.9Hz | |||
THD | <5% | |||
Power factor | >0.99 | |||
Maximum number of branch circult connections | @120Vac : 5 set /@230Vac : 10 set | |||
Efficiency | Maximum conversion efficiency | 95% | 94.5% | 94% |
CEC efficiency | 92% | |||
Night losses | <80 mW | |||
Protetion function | Over / under voltage protection | Yes | ||
Over / under frequency protection | Yes | |||
Anti-islanding protection | Yes | |||
Over current protection | Yes | |||
Over load protection | Yes | |||
Over temperature protection | Yes | |||
protection class | IP 65 | |||
Working environment temperature | -40~65℃ | |||
Weight (Kg) | 2.5Kg | |||
Indication lights quantity | working status LED light *1 + Wifi signal LED light*1 | |||
Communication connection mode | Wifi/2.4G | |||
Cooling method | Natural cooling (no fan) | |||
Working environment | Indoor and outdoor | |||
Certification standards | EN1000-3-2 EN61000-3-3 EN62109-2 EN55032 EN55035 EN50438 | |||
