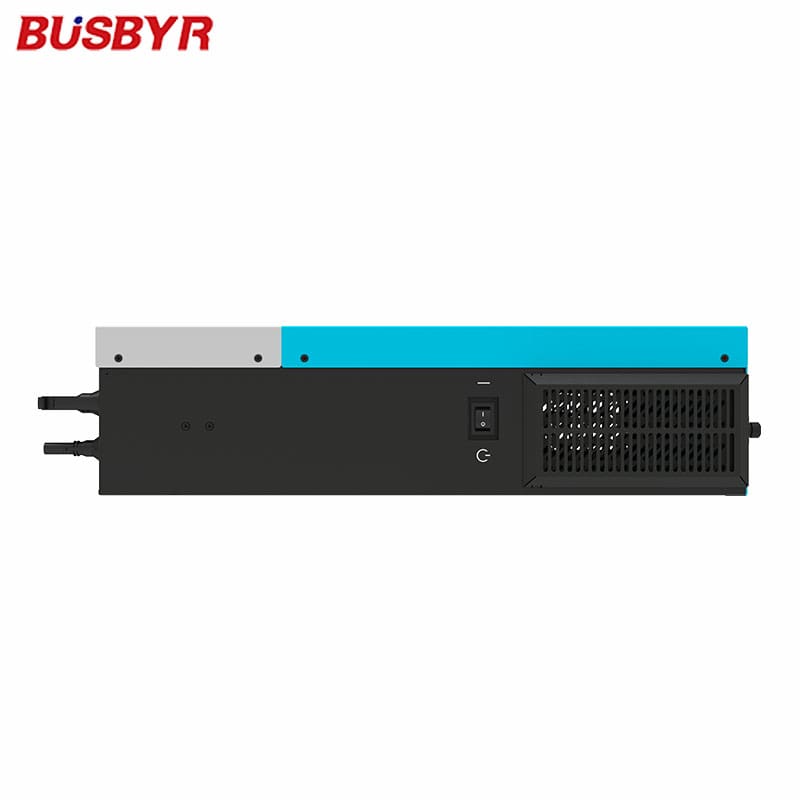

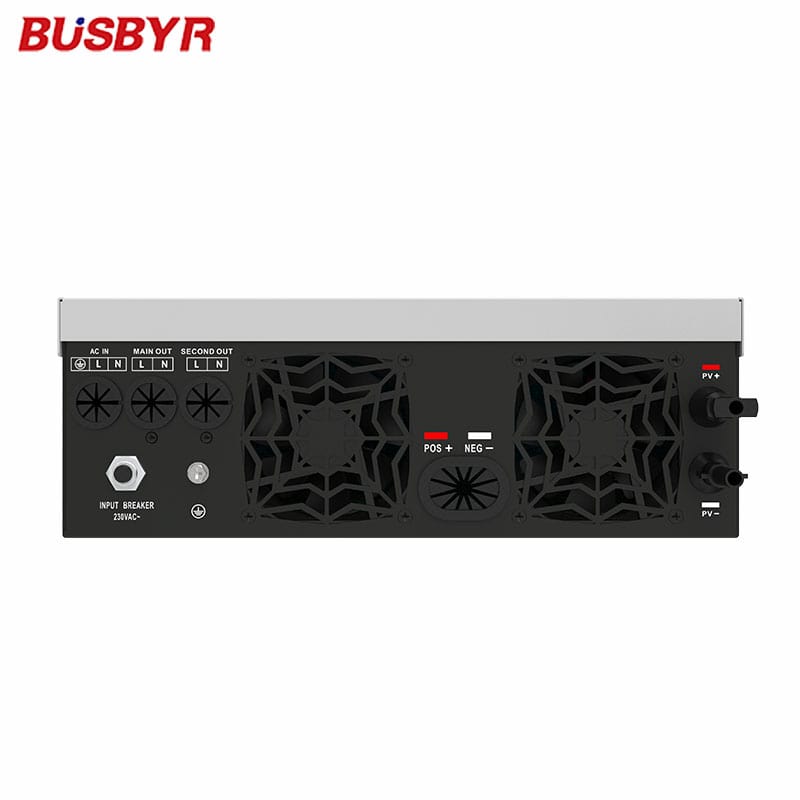

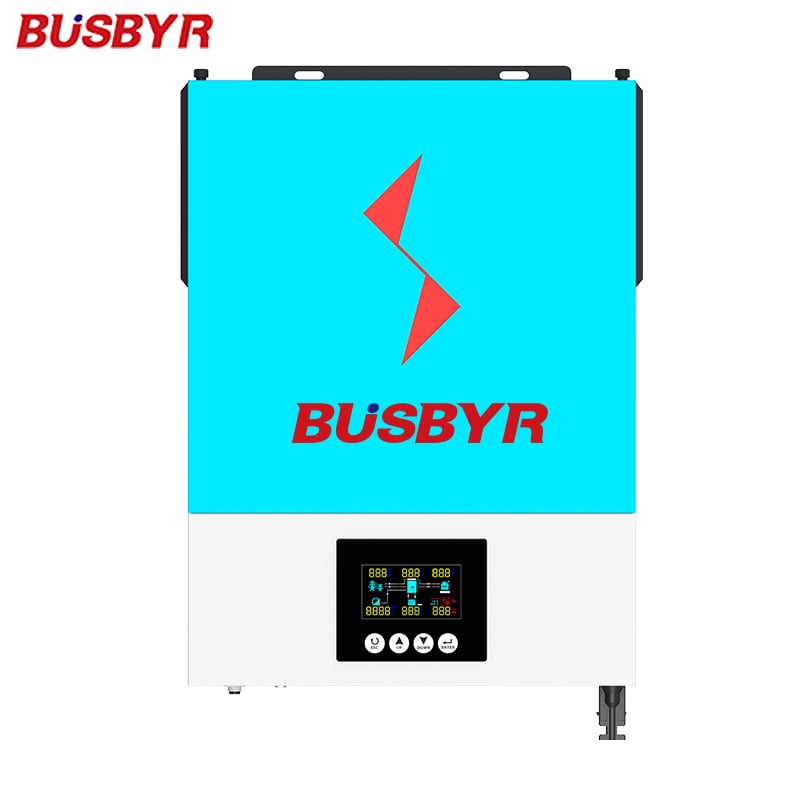

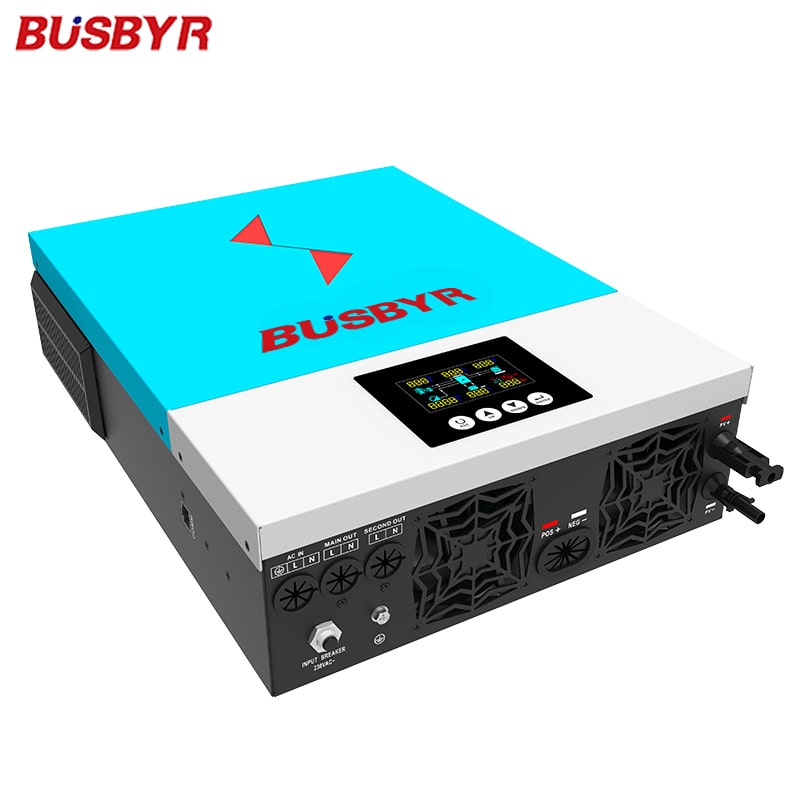

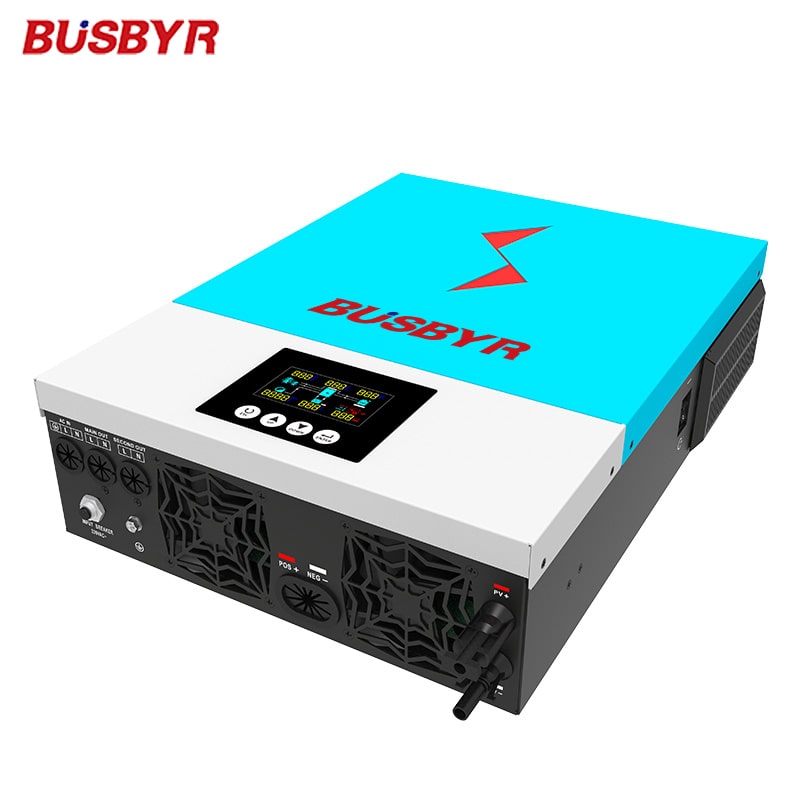

hybrid solar inverter 6.2KW
BS4 Series (3.6/4.2/6.2KW)Key Features
●Pure sine wave solar inverter(on/off Grid)
●Output PF=1.0
●Support WIFI&GPRS for App
●Inverter running without battery
●One-key restoration to factory Settings
●Built-in Lithium battery automatic activation
●Built-in 120A Solar Charging Current
●MPPT: Max 6200w(for 3.6kw/4.2kw),max 6500w (for 6.2kw)solar charge
●With wide PV input voltage range(90~450VDC)
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
Description
This hybrid solar inverter 6.2KW can store the power generated by the distributed power generation system during the day for night lighting, which requires the addition of electrical components such as a controller and a battery. The inverter releases the power stored in the battery for lighting. In the case of an energy storage device, if the grid is powered off, the system will stop working. However, if the grid-tie inverter is replaced by a smart micro-grid inverter Inverter (on-grid and off-grid hybrid inverter), the hybrid solar system can still operate normally.
Specification
MODEL | BS4-3.6KW PLUS | BS4-4.2KW PLUS | BS4-6.2KW PLUS |
Phase | 1-phase | ||
Maximum PV Input Power | 6200W | 6200W | 6500W |
Rated Output Power | 3600W | 4200W | 6200W |
Maximum Solar Charging Current | 120A | 140A | 120A |
GRID-TIE OPERATION | |||
PV Input(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
Maximum DC Voltage | 90~450VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/27A | ||
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 200/230/240VAC | ||
Output Voltage Range | 195.5-253VAC | ||
Nominal Output Current | 15.7A | 18.2A | 27.0A |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49-51±1Hz | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(Sloar to AC) | 98% | ||
OFF-GRID OPERATION | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280 VAC or170-280VAC | ||
Maximum AC Input Current | 30A | 30A | 40A |
Nominal operating frequency | 50/60Hz | ||
Surge power | 7200W | 8400W | 12400W |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 24VDC | 24VDC | 48VDC |
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
BATTERY&CHARGER | |||
Nominal DC Voltage | 24VDC | 24VDC | 48VDC |
Maximum Charging Current (Solar to AC) | 120A | 140A | 120A |
Maximum AC Charging Current | 100A | ||
GENERAL | |||
PHYSICAL | |||
Dimension,D X W X H(mm) | 420*310*110 | ||
Cartoon Dimension,D X W X H(mm) | 590*390*210 | ||
Net Weight(kgs) | 8.5 | 9.5 | 10 |
Gross Weight(kgs) | 10 | 10.5 | 11 |
INTERFACE | |||
Communication Port | RS232/WIFI/GPRS | ||
ENVIRONMENT | |||
Operating Temperature | -10~50℃ | ||
