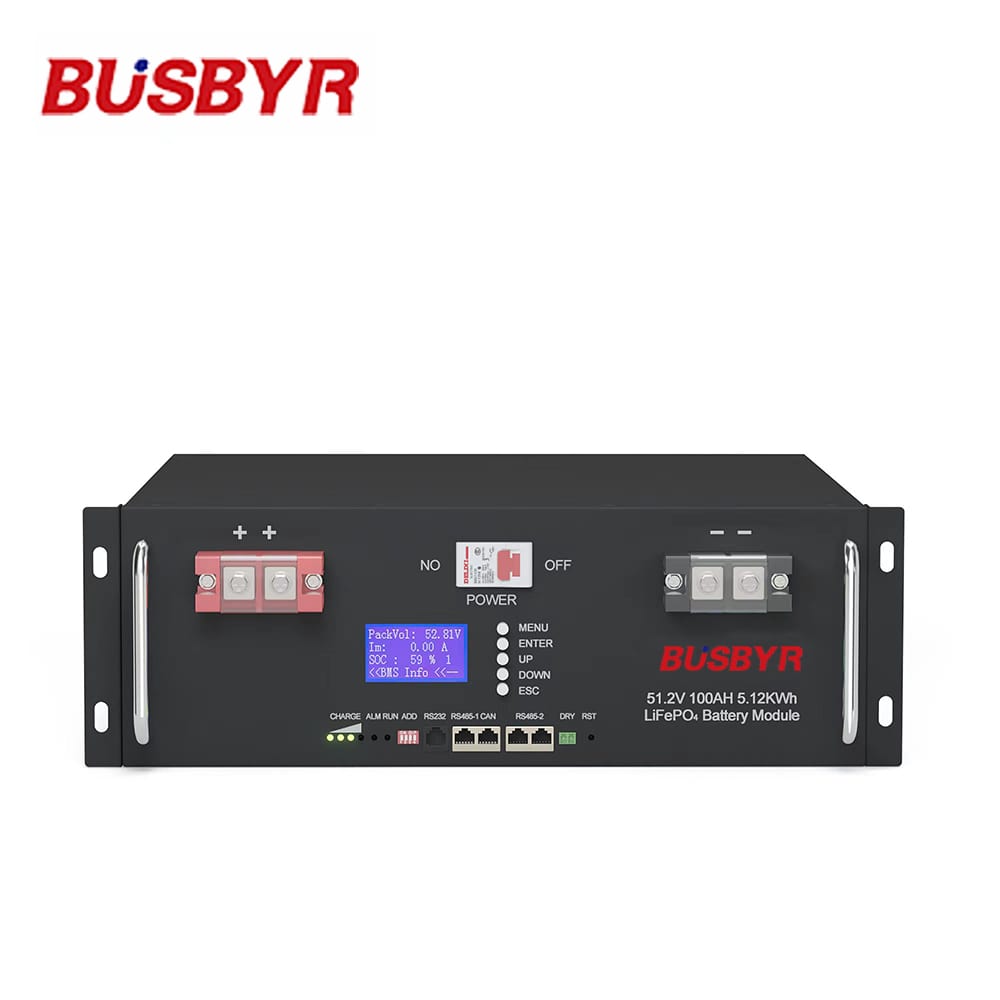

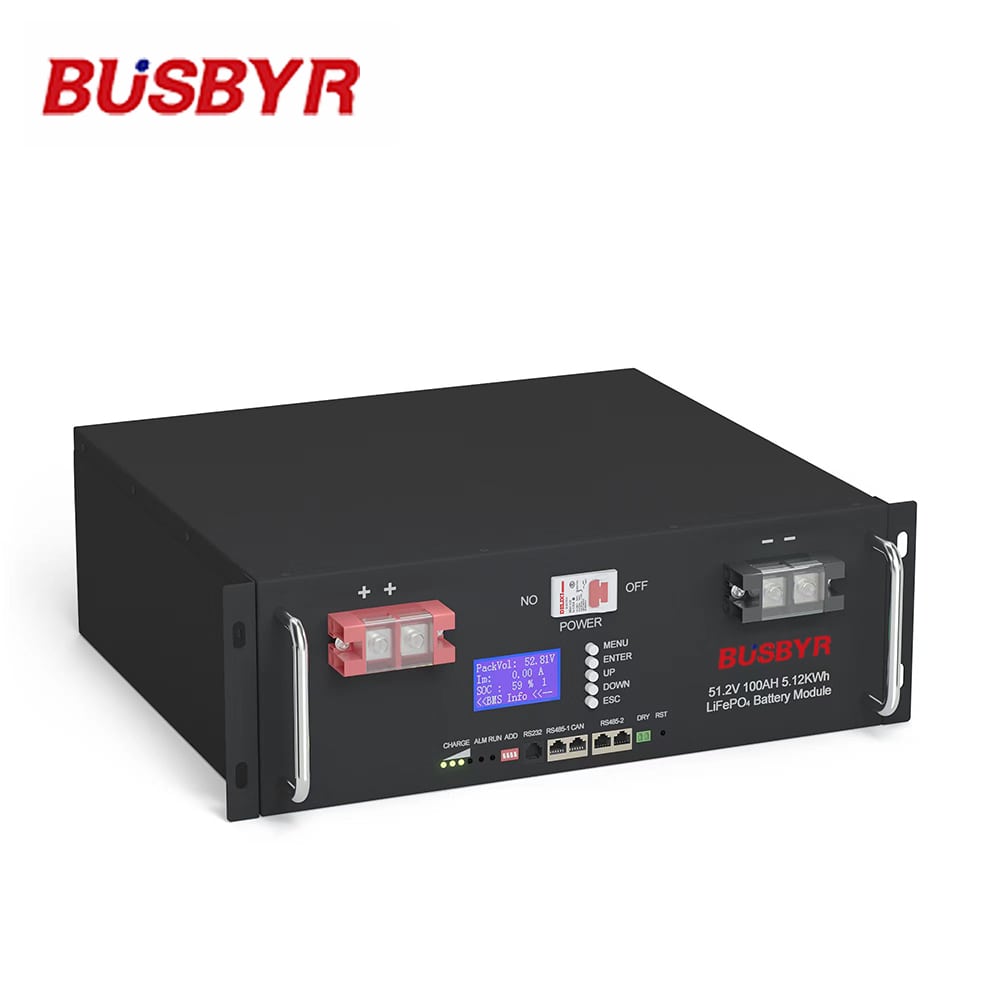

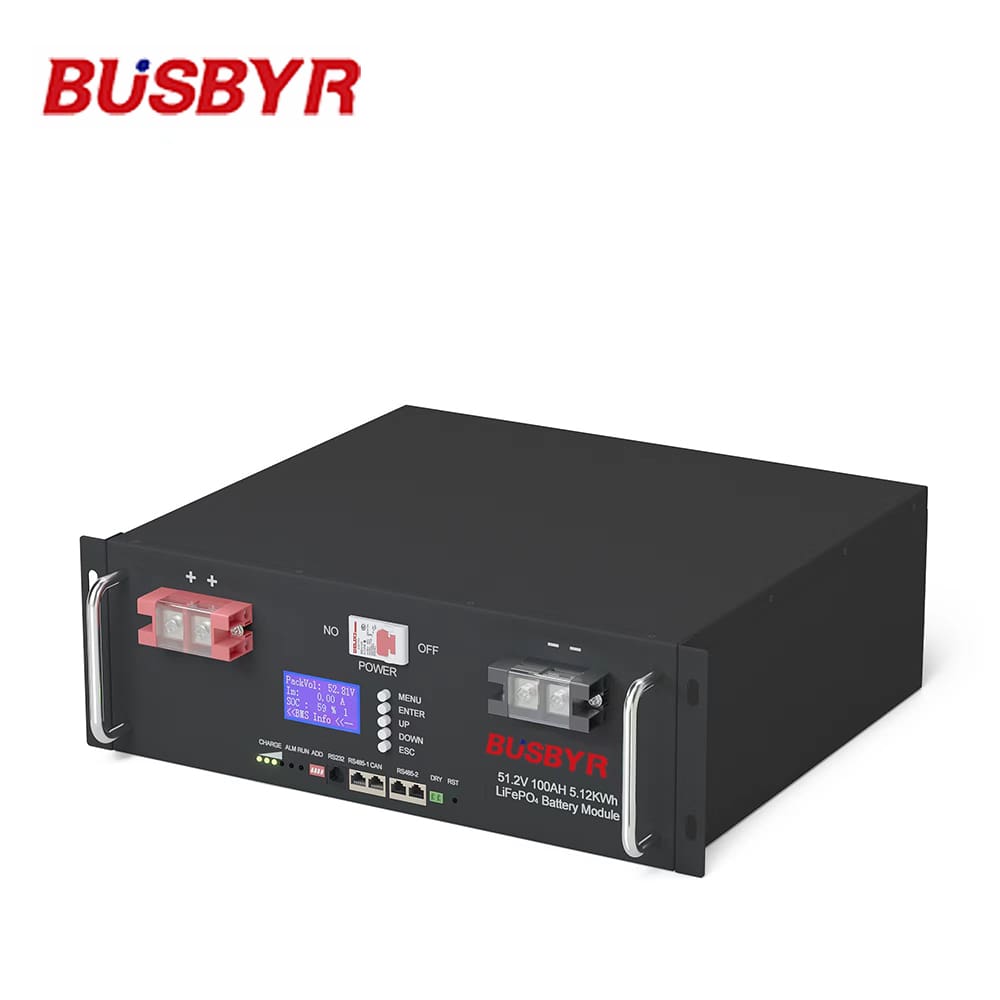

Deep Cycle Solar Rack-Mounted Battery 48V 100Ah 5KWh Lithium Iron Lifepo4 Battery
Rack-Mounted Lithium BatteryKey Features
●Safety in use
●Low self discharge rate
●Good high temperature performance
●High Cycle times and long service life
●High energy density and conversion efficiency
●Environmental friendly, without any heavy metals
●Easy installation, BMS Modbus protocol can communicate with the inverter
Description

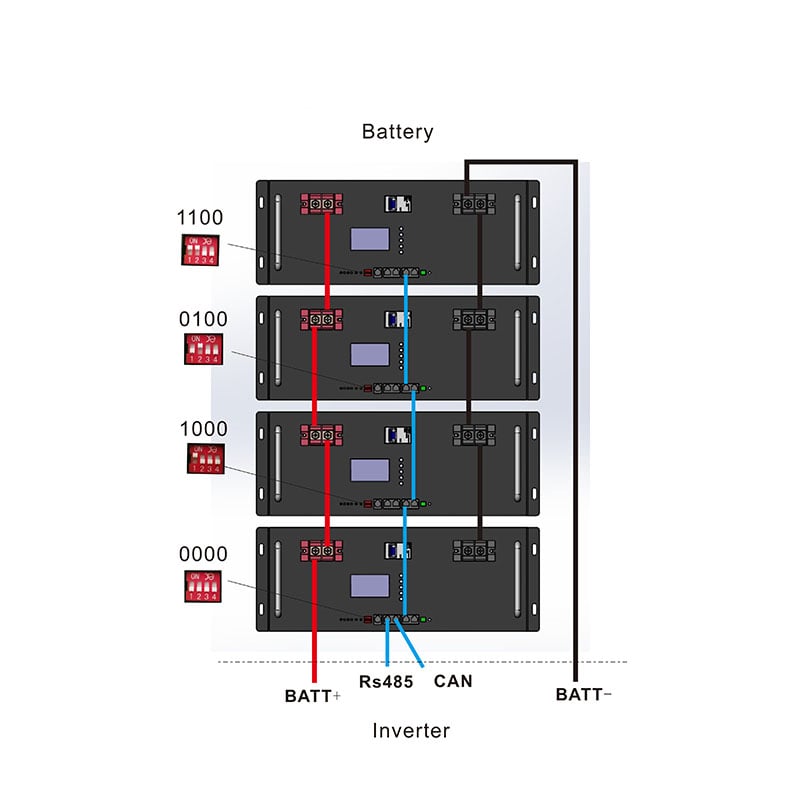

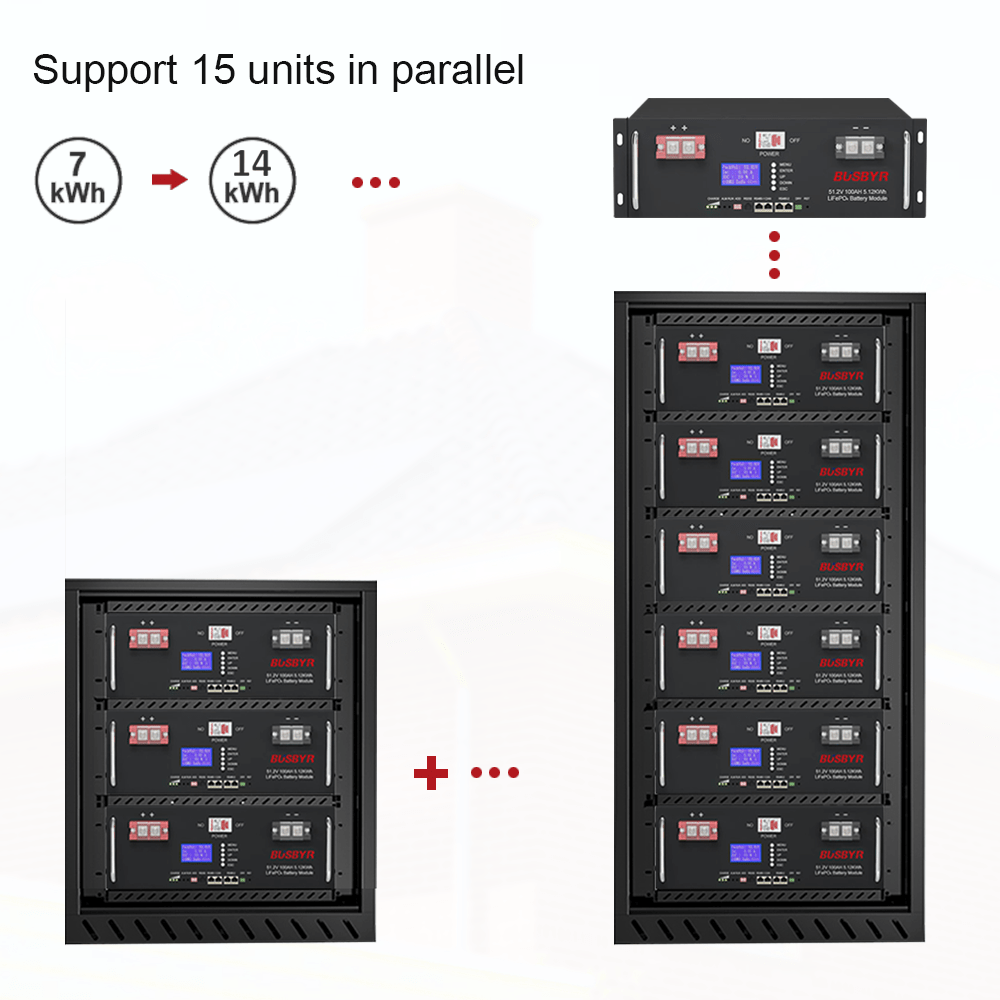

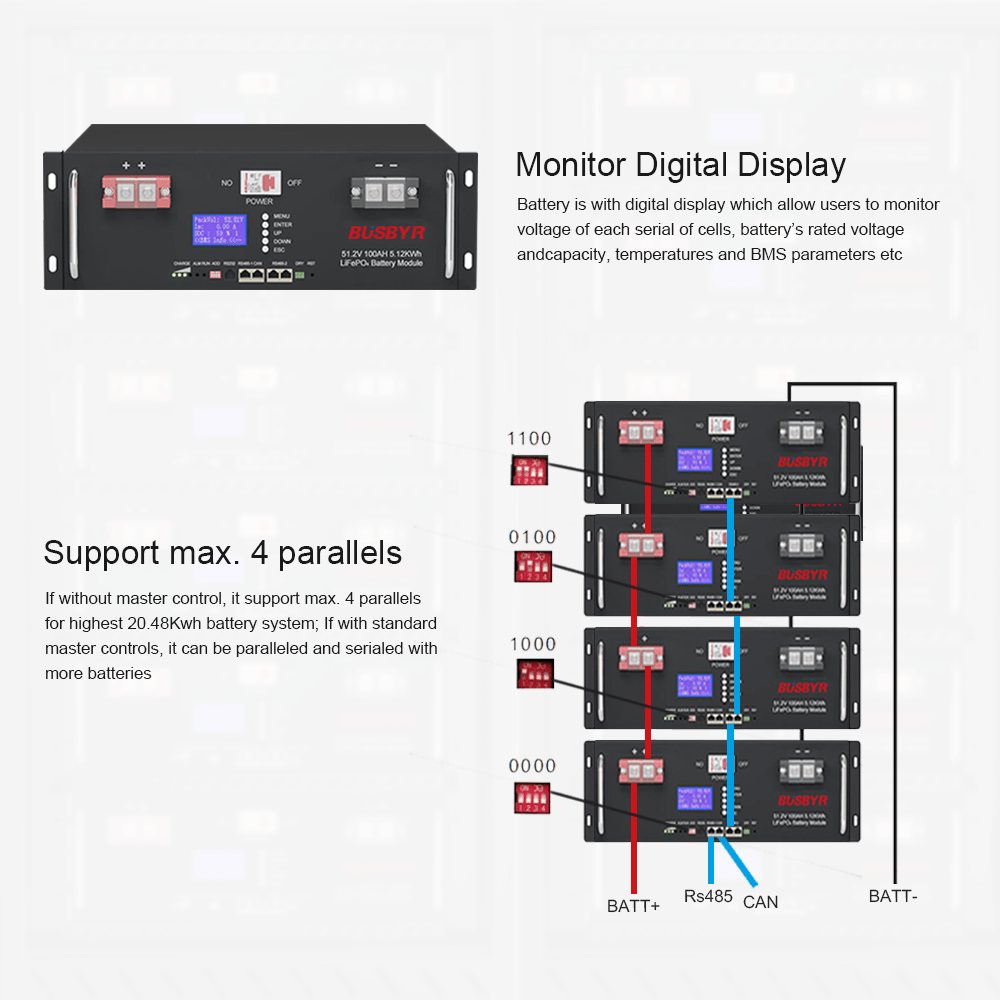

This battery is a new type of energy storage product, which can be used to provide reliable power supply for various equipment and systems. It is especially suitable for applications with large power, limited installation space, limited bearing capacity and long life. Battery built-in BMS -battery management system, battery voltage, current, temperature and other information management and monitoring. In addition, the battery pack can balance the charge and discharge to prolong the cycle life. Multiple battery packs can be parallel to expand capacity and power, parallel to expand capacity and longer power support time requirements.
Battery Parameter
Item | Specification | |
Electrical Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah | |
Energy | 5120Wh | |
Intemal Resistance | ≤20mΩ | |
Cycle Life | >3000 Cycles | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100%@0.2C | |
Efficiency of Discharge | 96-99%@1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current 0.02C(CC/CV) | |
Charger Current | 50A | |
Max.Charge Current | 75A | |
Charge Cut-off Voltage | 59.2V±0.2V | |
Standard Discharge | Continuous Current | 50A |
Max.Pulse Current | 100A | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0℃ to 45℃ (32F to113F) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60+25% Relative Humidity | |
Storage Temperature | 0℃ to 40℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP30 | |
Cell&Method | 3.2V50AH-16S2P | |
Plastic Case | 4U Standard Case | |
Dimensions (in./mm.) | 482*400*177MM | |
Mechanical | Weight (lbs./kg.) | 43Kg |
Terminal | 100A through terminal | |
Protocol (optional) | RS485/RS232/CAN | |
BMS | 16S100A |
