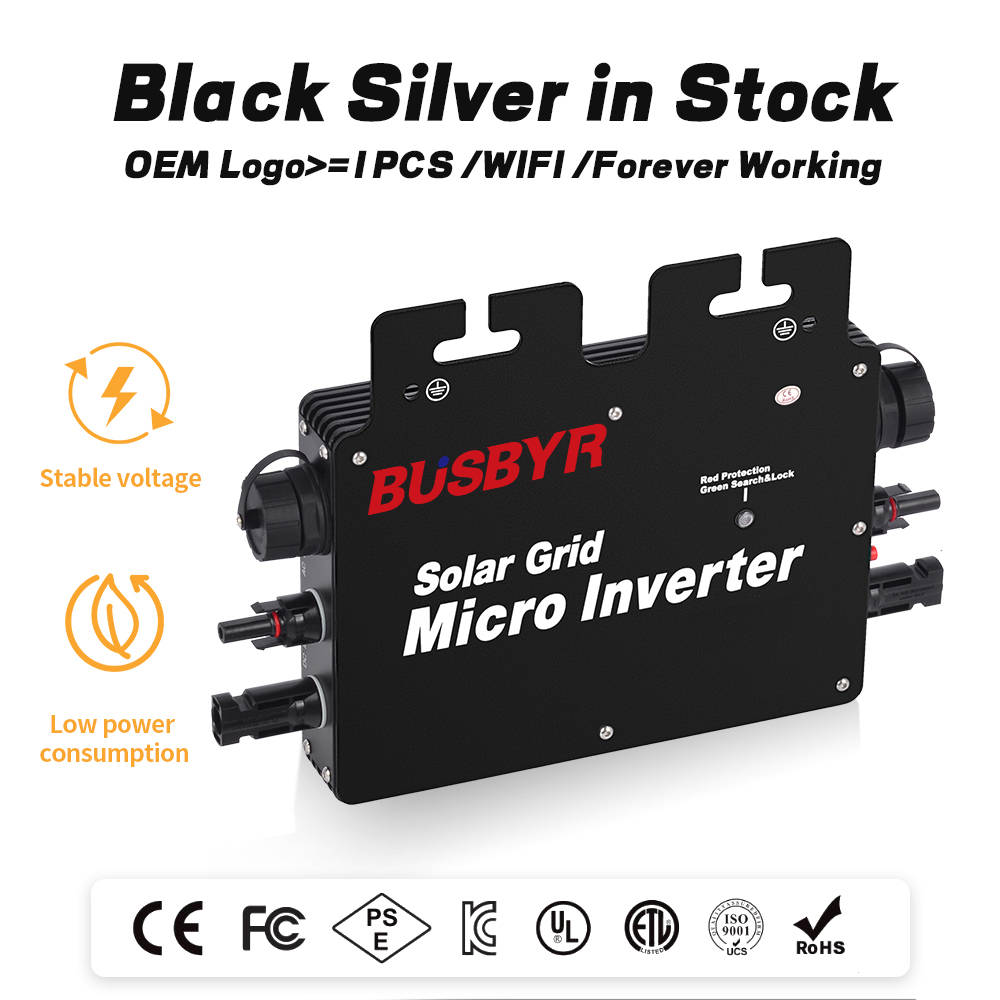

600W 700W 800W Inverter Solar Grid Tie Microinverter
600w 700w 800w Microinverter> IP65 waterproof grade
> Back outlet hole to prevent electric shock
> Smartphone APP intelligence system
> Better heat dissipation
> 20% More Efficient Than Traditional Solar Inverter
> MPPT power automatic tracking
> CE, FC, PSE, UL, CE, RoHS, ISO9001 certificated
600w 700w 800w inverter, capable of converting direct current generated by solar panels into alternating current, for home and commercial use. It has the characteristics of high efficiency, intelligence, safety and reliability. Using MPPT engine and intelligent wifi module, it can realize efficient energy conversion and remote monitoring. At the same time, the inverter has multiple safety protection functions, excellent performance, equipped with a smart home system, and is easy to install. Solar grid-connected micro-inverters are suitable for small solar power generation systems, which can convert solar direct current into alternating current and grid-connected power supply.
- High efficiency: MPPT engine is used to achieve the maximum efficiency of energy conversion
- Intelligent: Equipped with intelligent wifi module, which can realize remote monitoring and control
- Multiple security protections: with multiple security protection functions to ensure safety during use
- Simple installation: easy and convenient installation, suitable for various scenarios
- Excellent reliability: After rigorous testing and verification, it has good performance and reliability
By cooperating with smart home systems, GTB series micro inverters can realize intelligent online monitoring. Through the smart life APP and the Internet, users can monitor key information such as the working status and output power of the inverter in real time. Supports remote control, allowing users to keep track of system operation and improve energy efficiency.
Specification
Model | 600W | 700W | 800W | |
Input(DC) | Recommend solar panel input power (W) | 200-300W*2 | 250-350W*2 | 275-400W*2 |
Number of DC input connections (groups) | MC4*2 | |||
Maximum DC input voltage | 52Vdc | |||
Operating voltage range | 20Vdc-50Vdc | |||
Start-up voltage | 18Vdc | |||
MPPT Tracking Range | 22Vdc-48Vdc | |||
MPPT Tracking accuracy | >99.5% | |||
Maximum DC input current | 14A*2 | |||
Output(AC) | Rated output power | 550W | 650W | 750W |
Maximum output power | 600W | 700W | 800W | |
Rated output voltage | 120Vac 230Vac | |||
Output voltage range | 90Vac-160Vac 190Vac-270Vac | |||
Rated AC current (at 120V) | 5A | 5.83A | 6.6A | |
Rated AC Current (at 230V) | 2.6A | 3A | 3.47A | |
Rated output frequency | 50HZ 60HZ | |||
Output frequency range (HZ) | 47.5Hz-50.5Hz 58.9Hz-61.9Hz | |||
THD | <5% | |||
Power factor | >0.99 | |||
Maximum number of branch circult connections | @120Vac : 5 set /@230Vac : 10 set | |||
Efficiency | Maximum conversion efficiency | 95% | 94.5% | 94% |
CEC efficiency | 92% | |||
Night losses | <80 mW | |||
Protetion function | Over / under voltage protection | Yes | ||
Over / under frequency protection | Yes | |||
Anti-islanding protection | Yes | |||
Over current protection | Yes | |||
Over load protection | Yes | |||
Over temperature protection | Yes | |||
protection class | IP 65 | |||
Working environment temperature | -40~65℃ | |||
Weight (Kg) | 2.5Kg | |||
Indication lights quantity | working status LED light *1 + Wifi signal LED light*1 | |||
Communication connection mode | Wifi/2.4G | |||
Cooling method | Natural cooling (no fan) | |||
Working environment | Indoor and outdoor | |||
Certification standards | EN1000-3-2 EN61000-3-3 EN62109-2 EN55032 EN55035 EN50438 | |||
