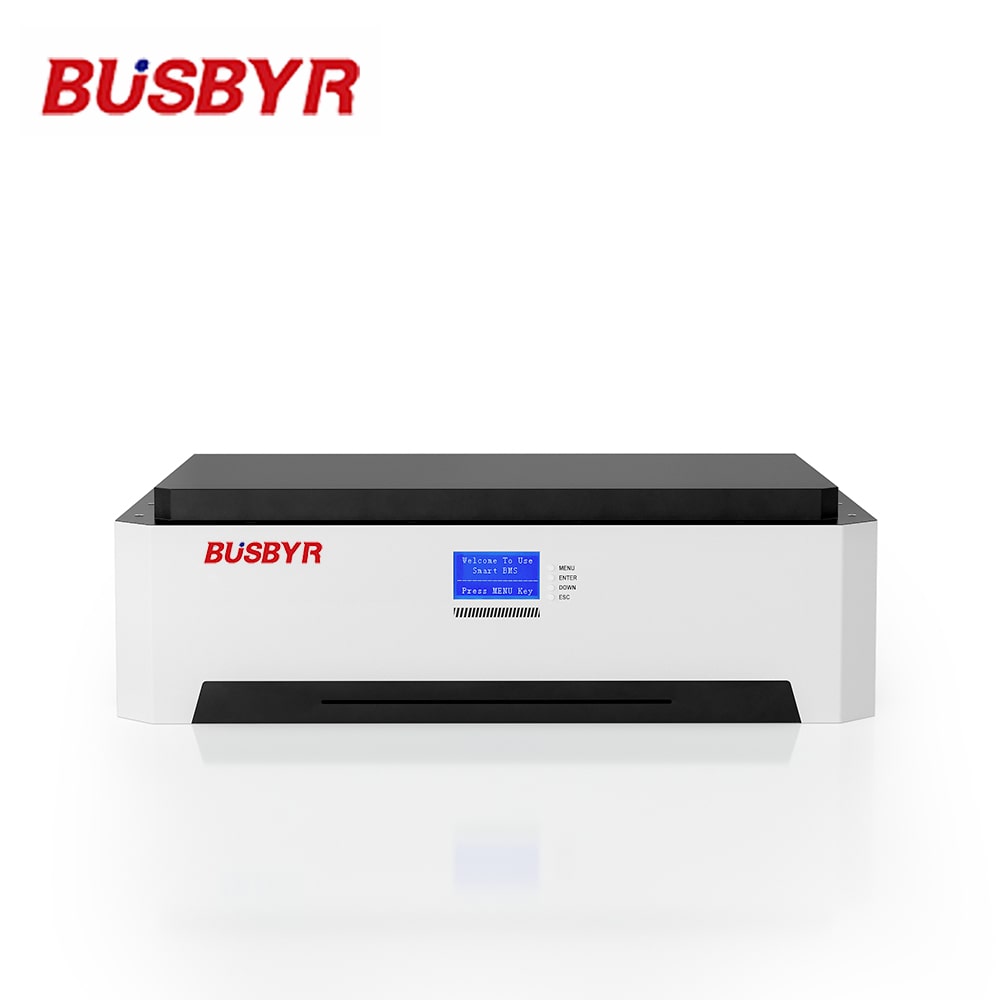

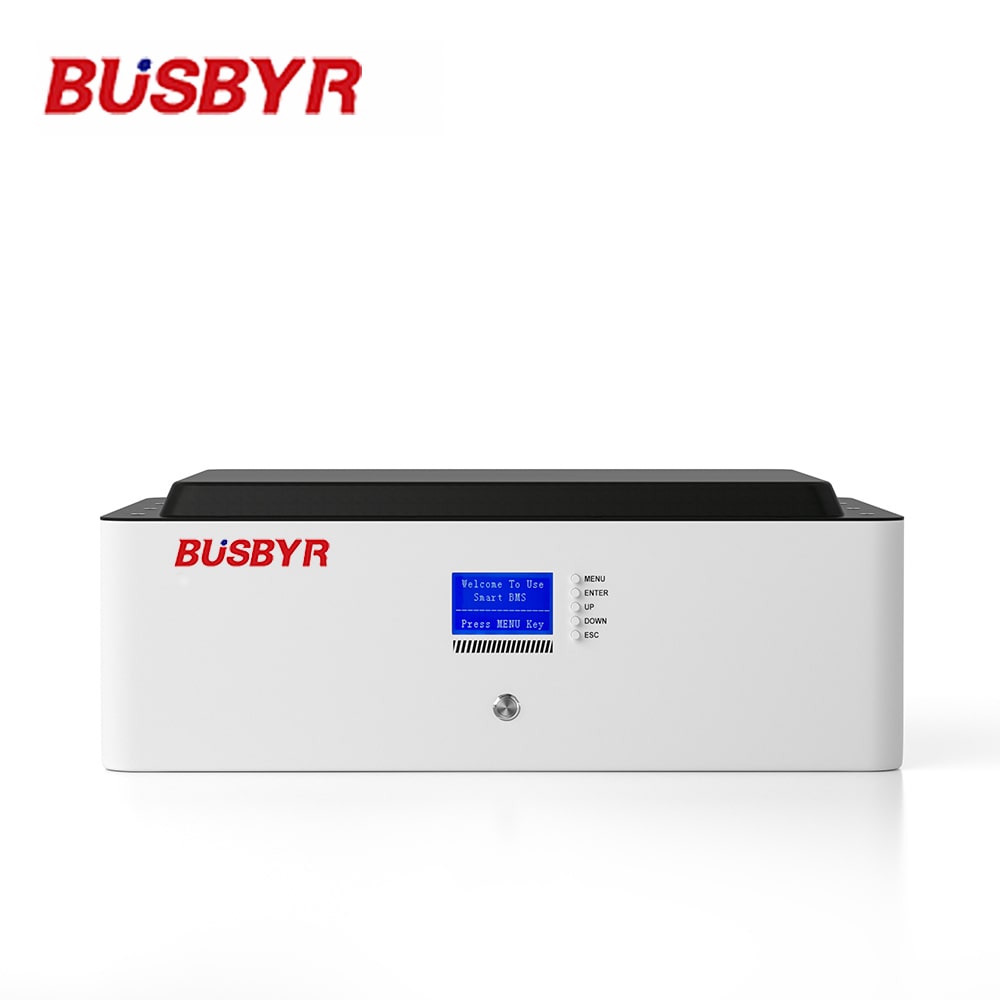

IP65 Stackable Batteries Rechargeable 5.12KWh 100Ah 48V Lifepo4 Battery Pack
Stackable Lithium BatteryKey Features
●Safety in use
●Low self discharge rate
●Good high temperature performance
●High Cycle times and long service life
●High energy density and conversion efficiency
●Environmental friendly, without any heavy metals

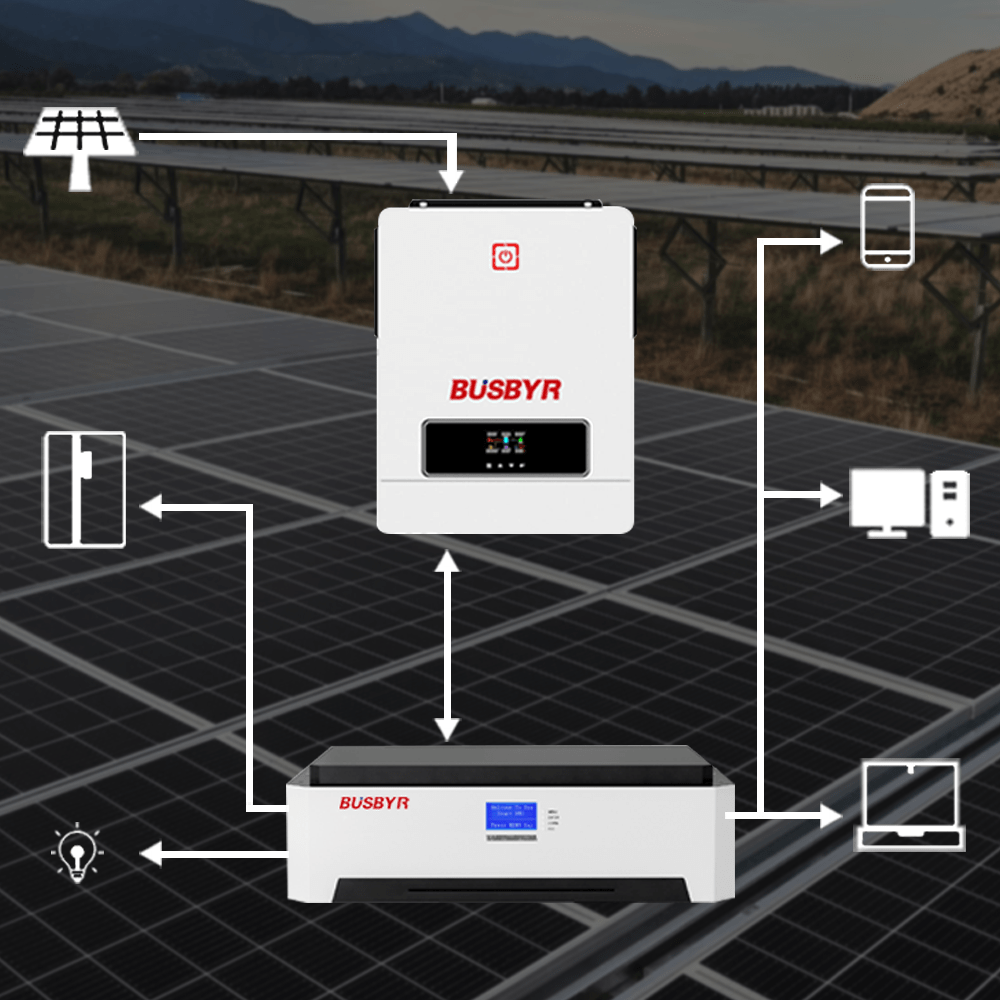

●Easy installation, BMS Modbus protocol can communicate with the inverter
Description

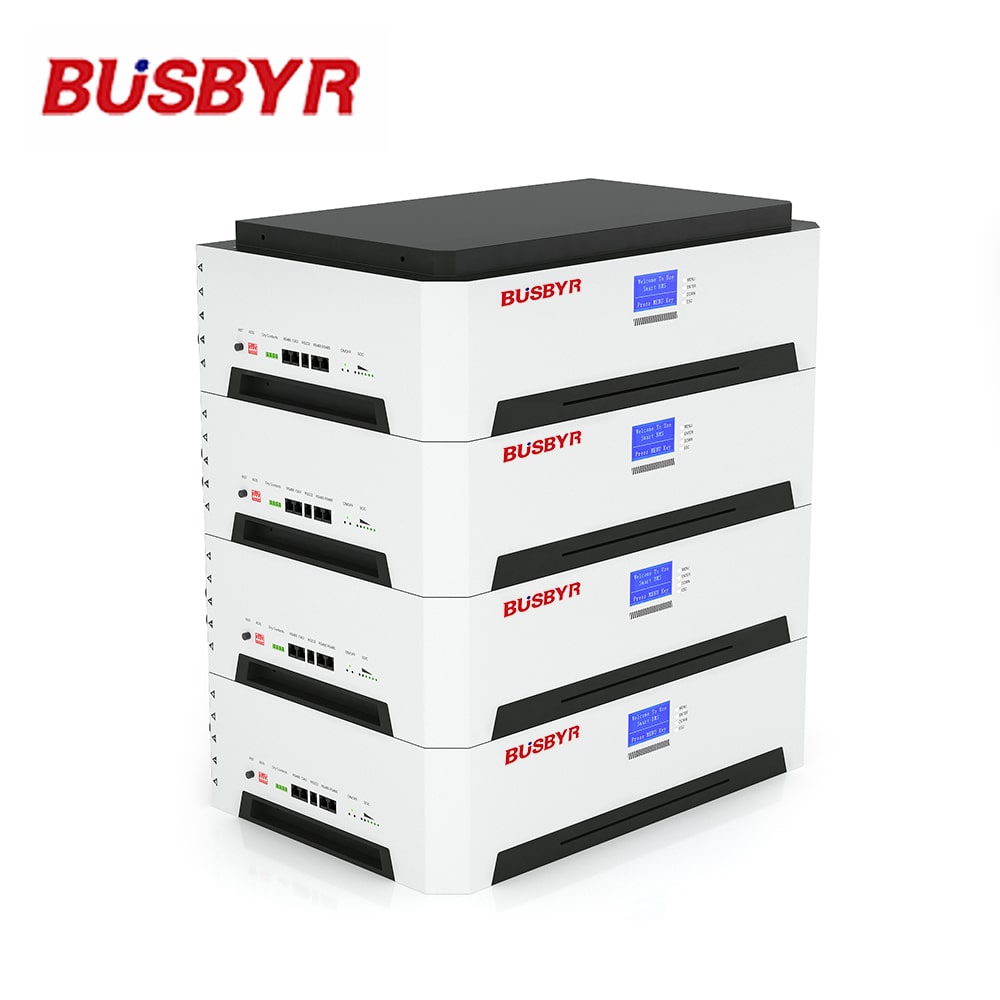

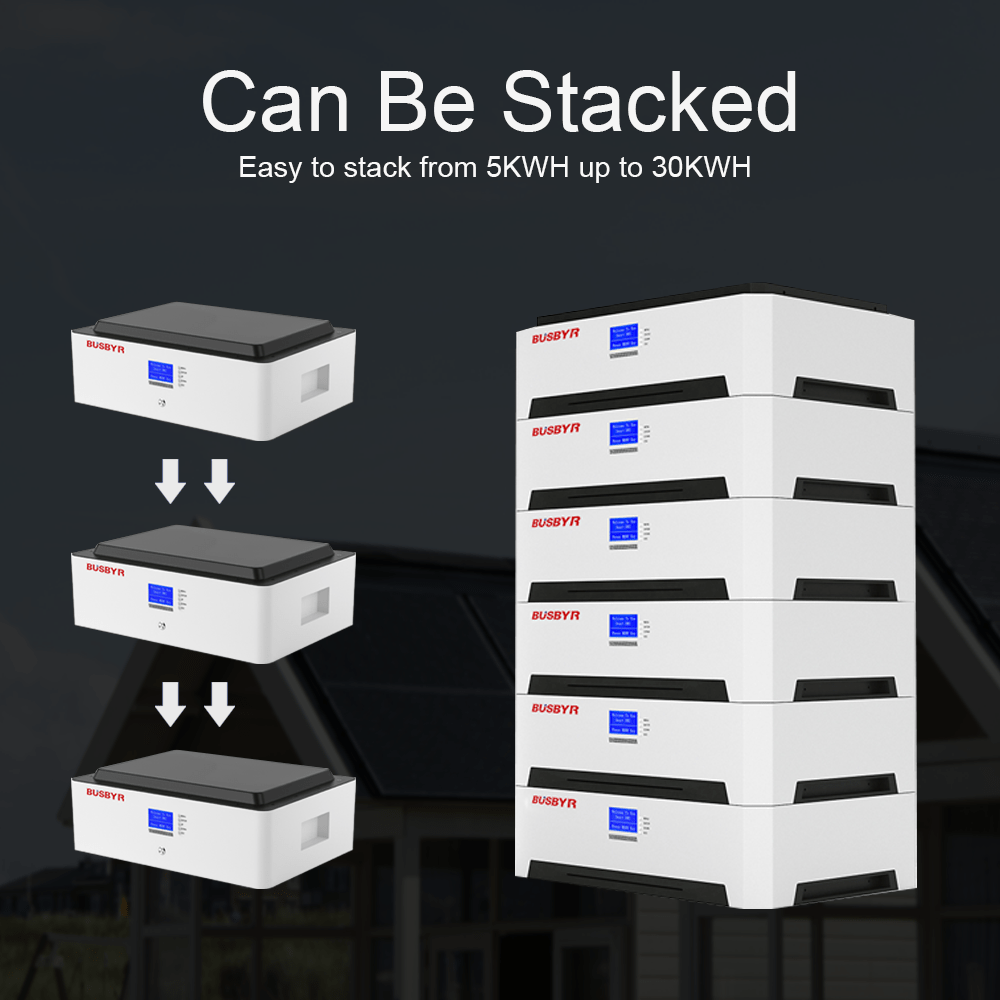

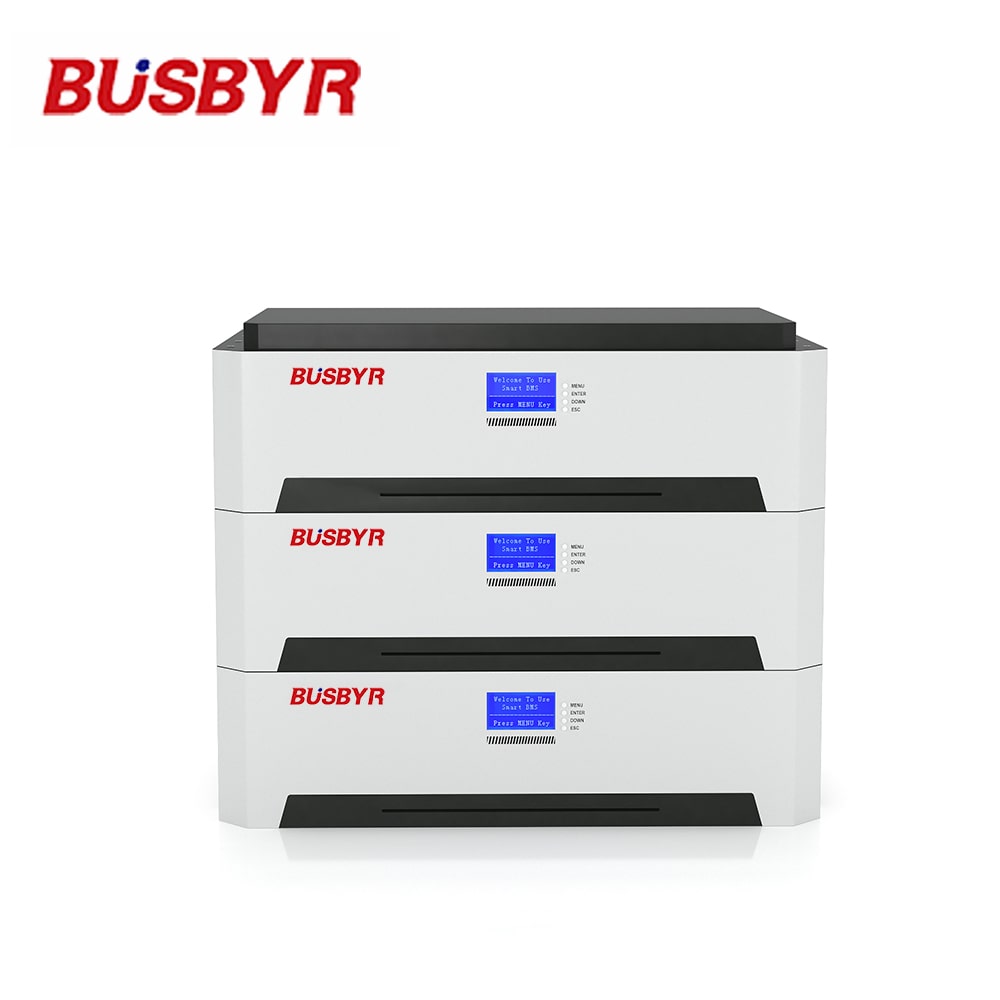

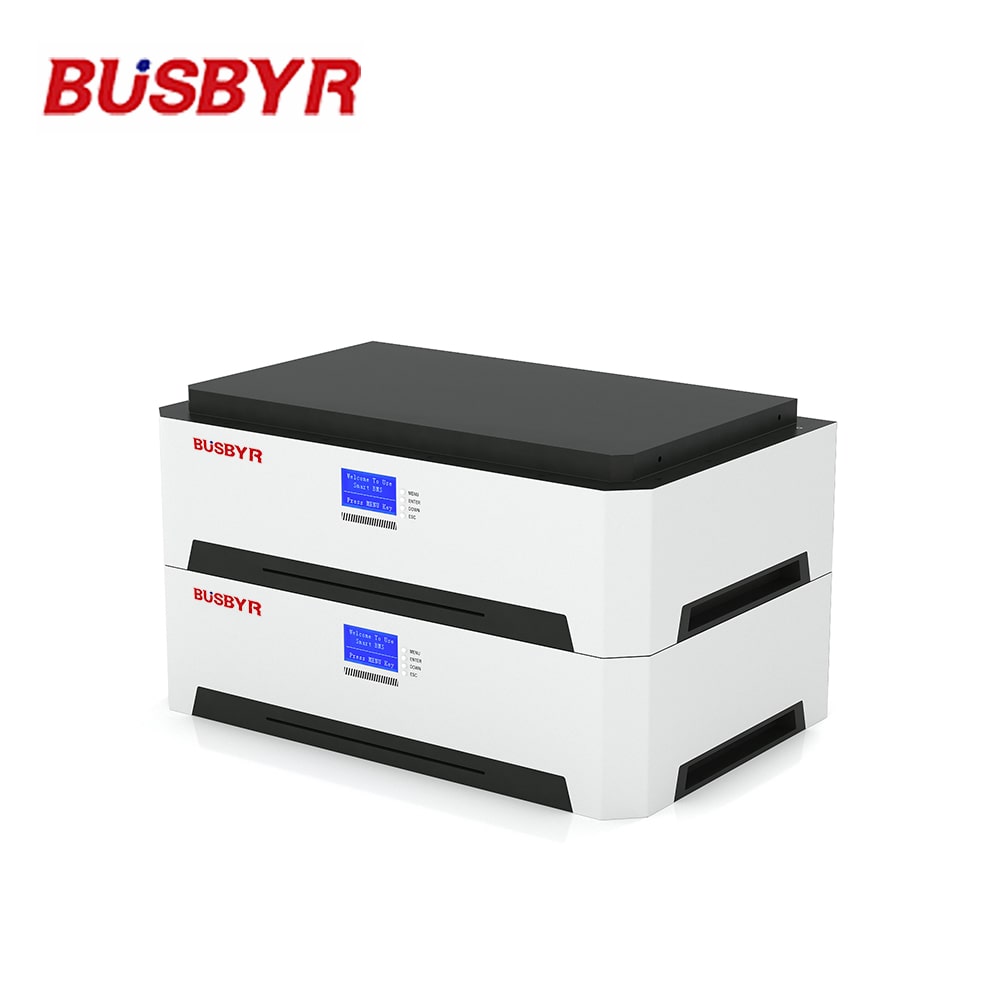

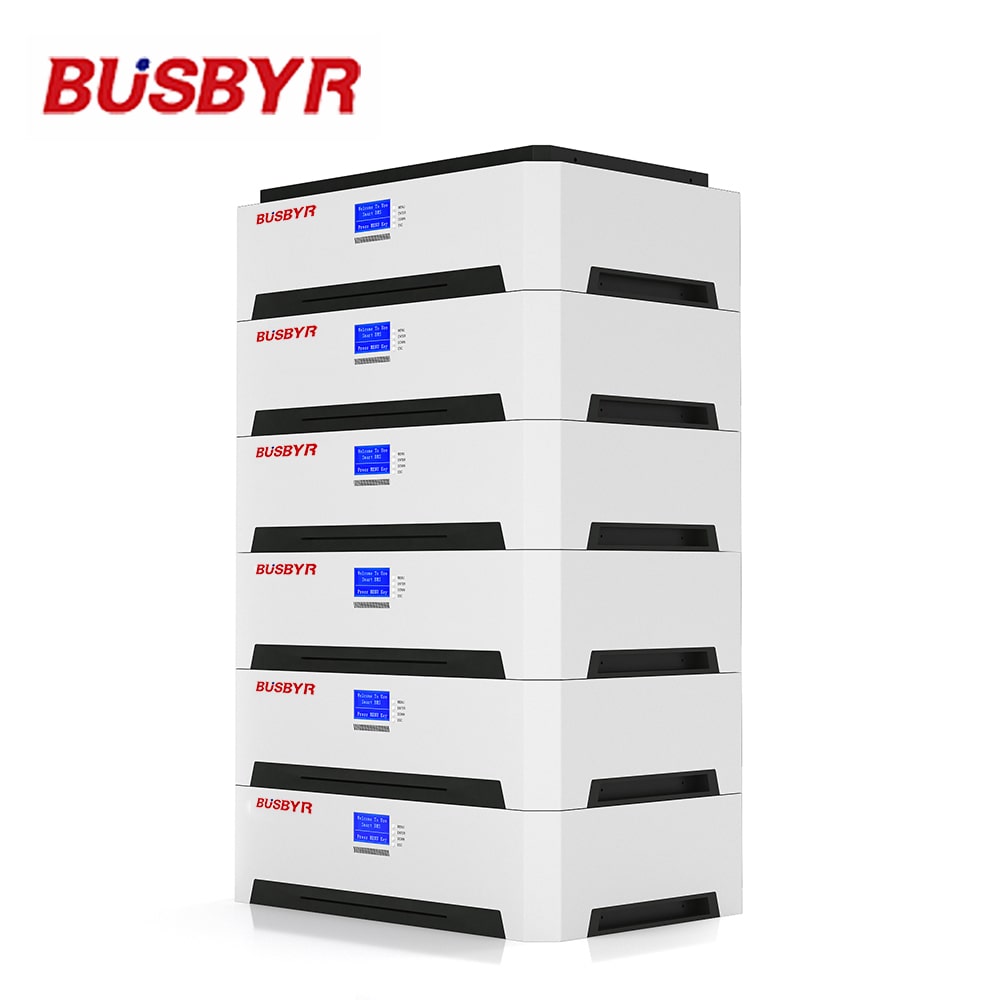

This battery is a new type of energy storage product, which has 5kWh to 30kWh per system. Ultra-thin and stackable is especially suitable for applications with limited installation space. Built-in integrated smart BMS with self-balance for each serial of cells, battery voltage, current, temperature and other information management and monitoring. In addition, the battery pack can balance the charge and discharge of the battery to prolong the cycle life. Multiple battery packs can be parallel to expand capacity and power, parallel to expand capacity and longer power support time requirements.
Battery Parameter
Product number | BSPH5000 |
Norminal Battery Energy | 5120WH |
Norminal Capacity | 100Ah |
Norminal Voltage | 51.2V |

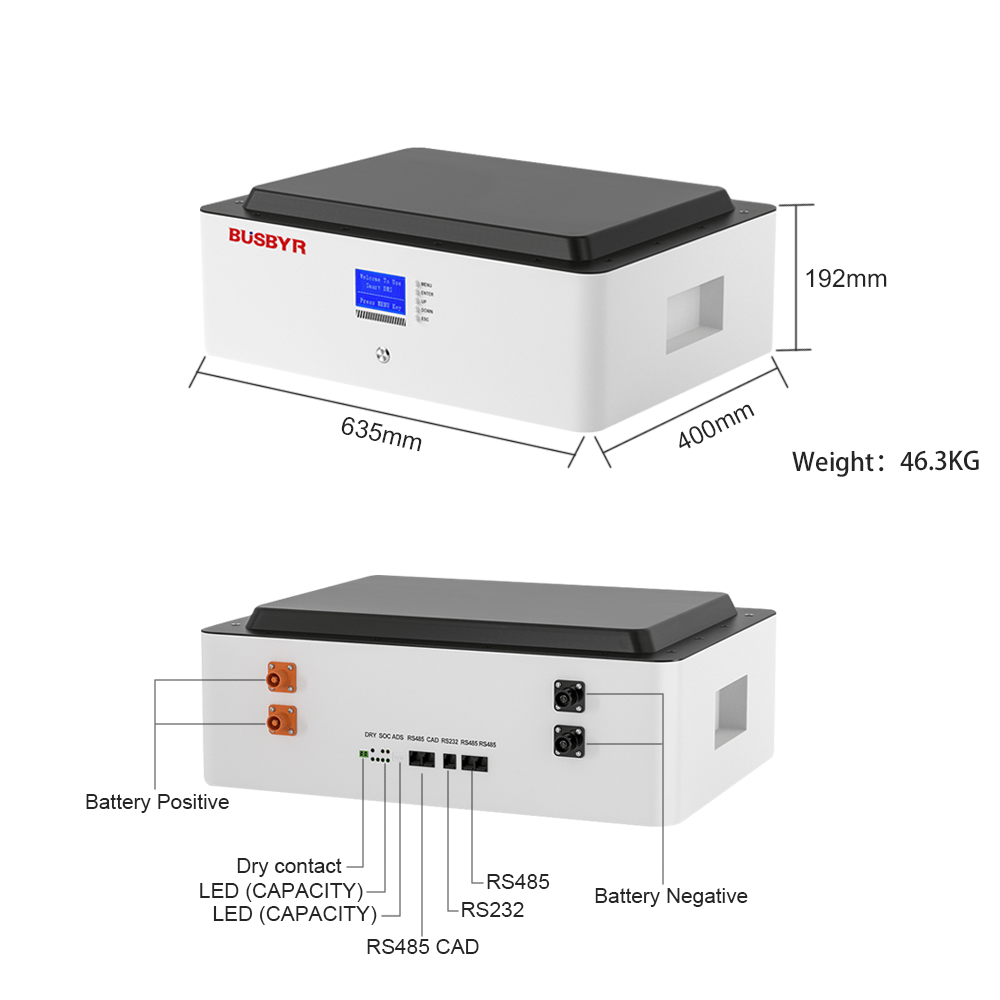

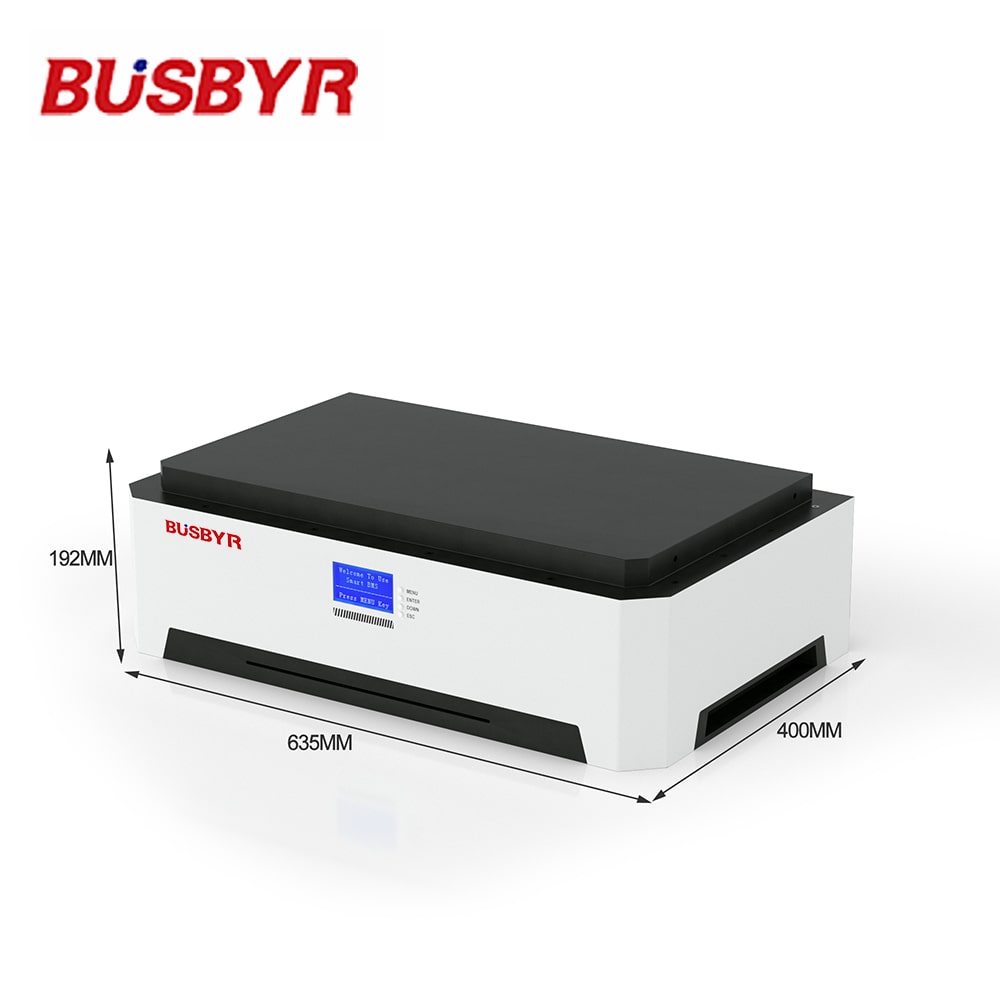

Dimensions | 635*400*192MM |
Internal Resistance | ≤35mΩ |
Cycle Life | >6000 |
Months Self Discharge | <3% |
Charge Data | |
DC Normal Charge Voltage | 58.4±1Vdc |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C (CC/CV) |
Recommended Charger Current | ≤25A |
Allowed Max. Charge Current | 100A |
Cut-off Voltage | 58.4±1Vdc |
Discharge Data | |
Continuous Discharge Current | 100A |
Allowed Max. discharge current | 300A（30S） |
Discharge cut-off voltage | 40V |
Working Condition | |
Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) |
Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) |
Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) |
Enclosure Protection Level | IP65 |
Mechanical Data | |
Cell&Capacity | Lifepo4 cell 3.2V100AH |
Shell material | Iron shell |
