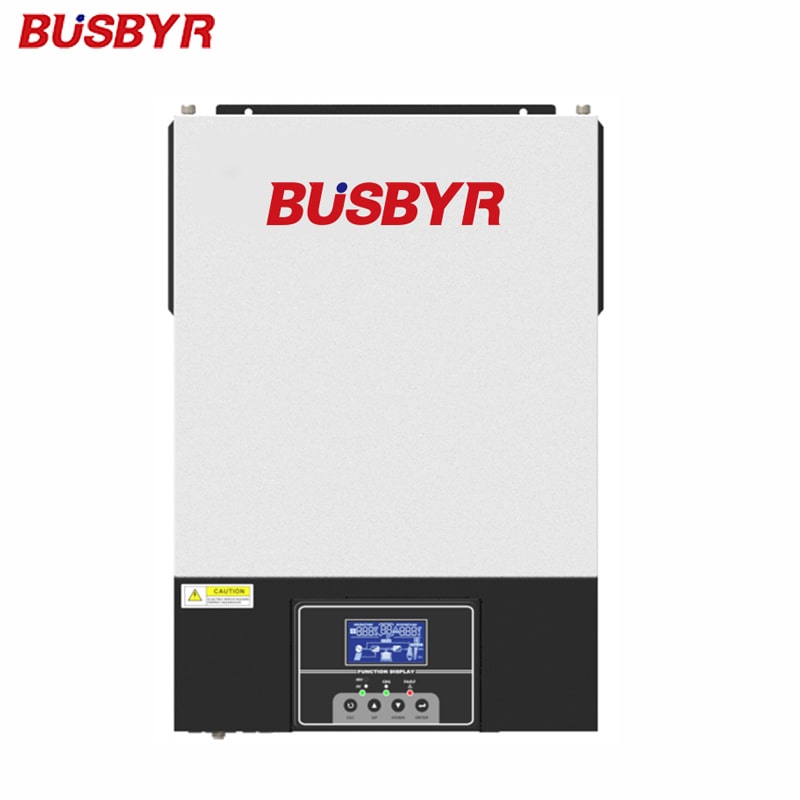

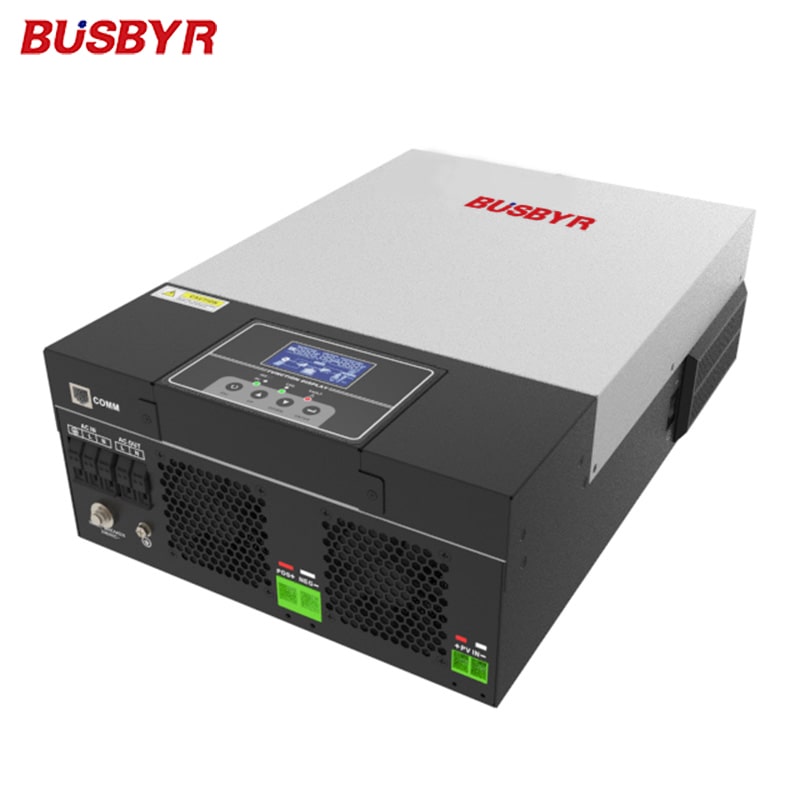

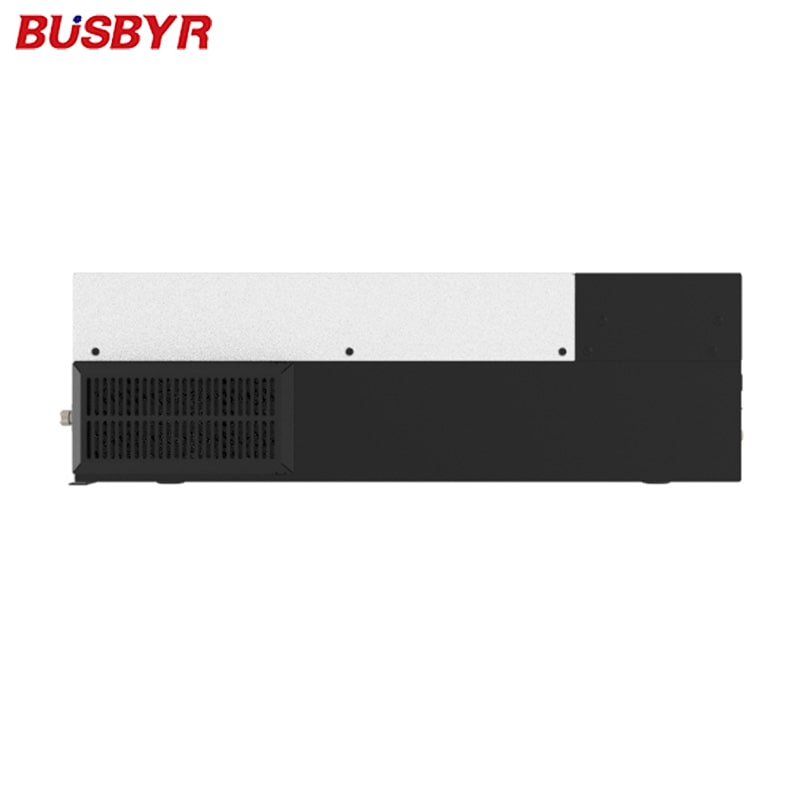

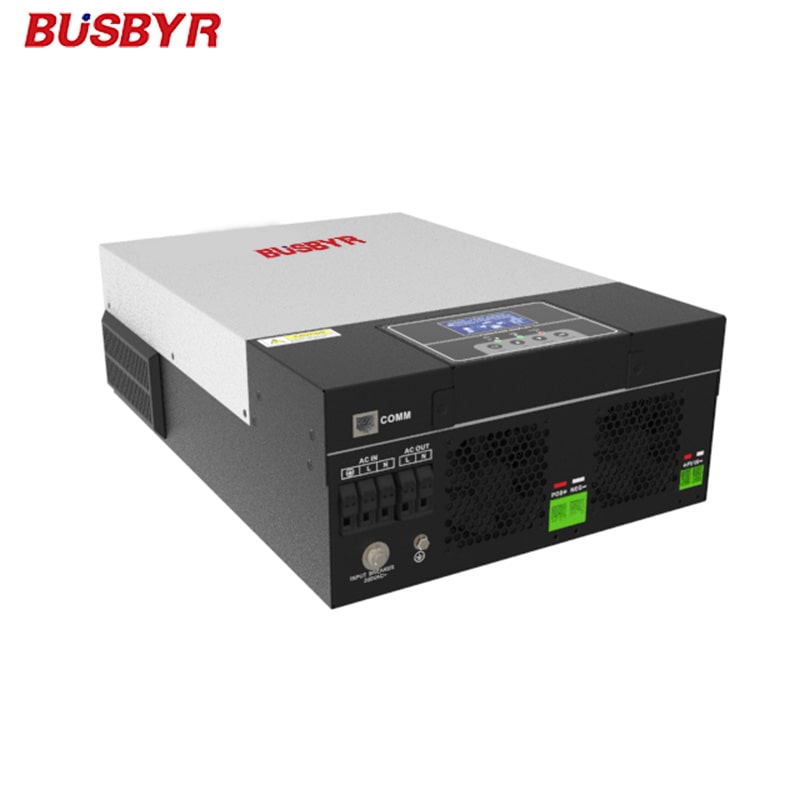

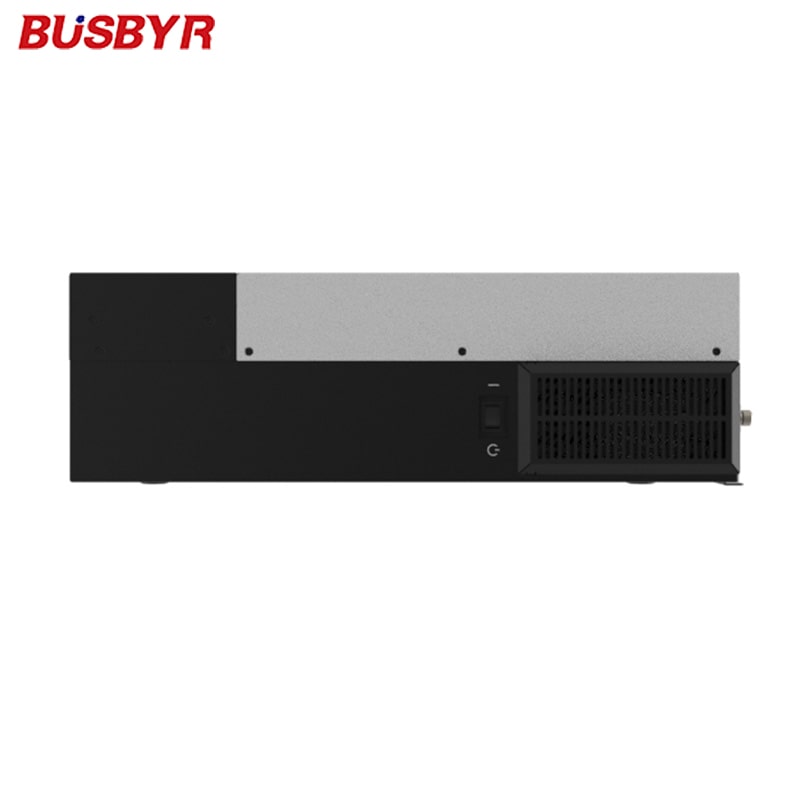

3.5KW solar energy inverter
BS3 Series (3.5/5.5KW)Key Features
●Pure sine wave solar inverter
●Output PF=1.0
●Support WIFI&GPRS for App
●Inverter running without battery
●Built-in 100A MPPT solar charger
●With wide PV input range: 120VDC-450VDC
●Built-in anti-dusk kit for harsh environment
●Smart battery charge design to optimize battery life
●Built-in Remote LCD Display
Description
The photovoltaic module in the 3.5KW solar energy inverter charges the battery through the charge controller, and uses it for the load through the inverter. First of all, the purpose of using photovoltaic power generation is to use photovoltaic power generation for self-use, and store excess electric energy for use at night or on rainy days, without being affected by city power outages. This solar energy inverter built-in remote LCD display with a wide range from 120VDC to 450VDC.
Specification
Model | BS3-3500W | BS3-5500W |
RATED POWER | 3500VA/3500W | 5500VA/5500W |
Input | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
90~280VAC(For Home Appliances) | ||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 7000VA | 11000VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)Battery to INV | 94% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum Charge Current | 80A | 80A |
SOLAR CHARGER | ||
Maximum PV Array Power | 5000W | 6000W |
MPPT Range Operating Voltage | 120w450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 100A | 100A |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension,D*W*H(mm) | 100*300*440 | |
Cartoon Dimension,D X W XH(mm) | 555*393*225 | |
Net Weight(kgs) | 10 | 11 |
Gross Weight(kgs) | 11 | 12 |
Communication interface | RS232/GPRS/WIFI/Remove LCD | |
OPERATING ENVIRONMENT | ||
Humidity | 5%to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10-50℃ | |
